Brief Introduction

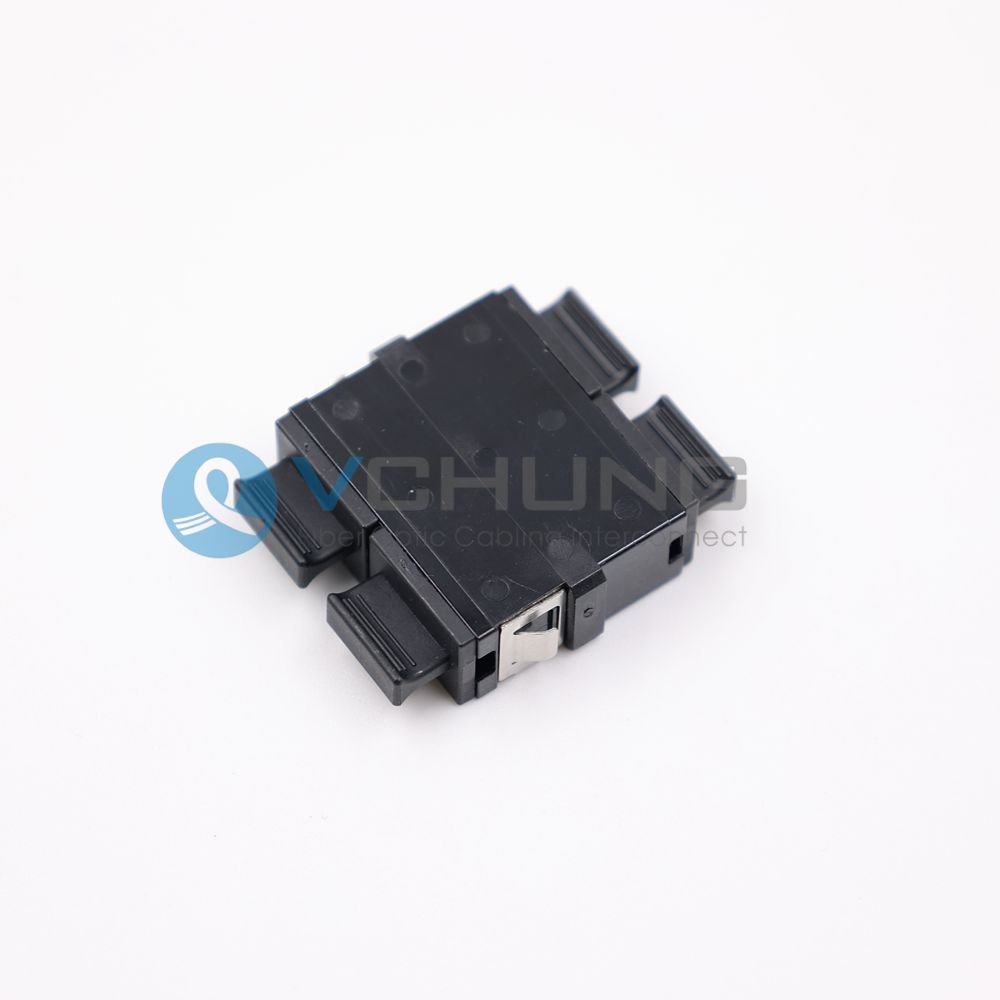

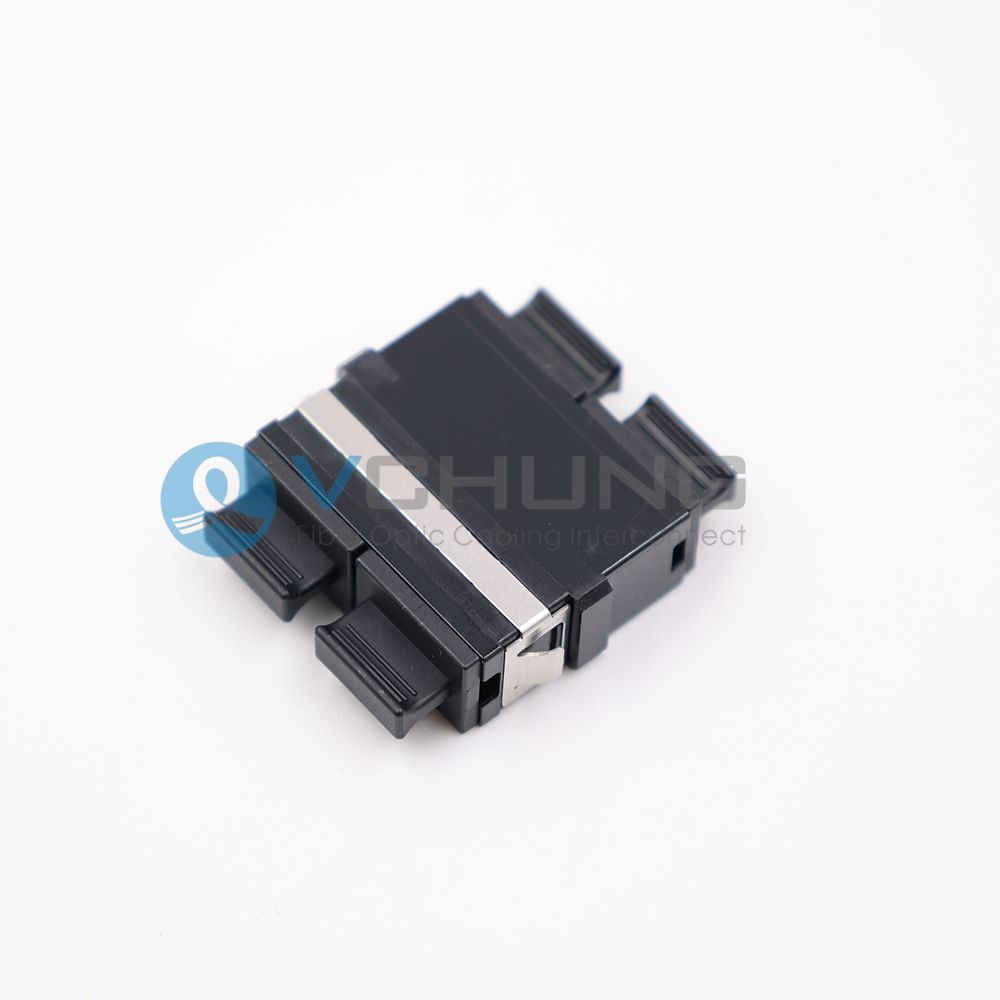

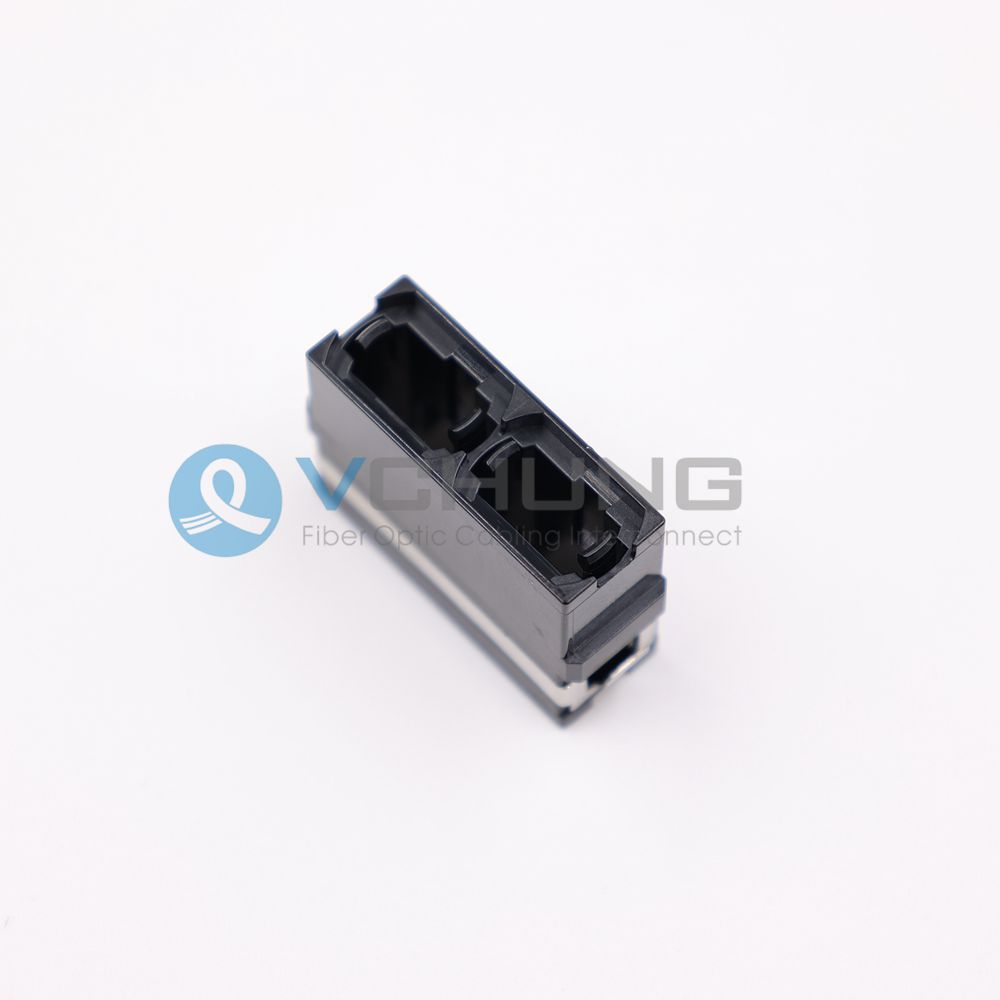

VCHUNG’s MPO Duplex Adapter, 16-Fiber, Black color, Flangeless – the compact, high-density solution for seamless MPO/MTP® connections. Precision-molded thermoplastic body in matte black withstands harsh data-center environments while remaining invisible in dark panels. Dual sleeves align 16 fibers within ±0.2 dB typical loss, supporting 40/100/400 GbE and beyond. Snap-fit, no-ear design maximizes rack space and installs from the front or rear; no screws, no extra tools. Compatible with all IEC-61754-7 compliant MPO connectors, PC or APC, single or multimode. RoHS & REACH certified.
Features
- Adapter color: black
- Adapter material: Plastic
- Repeatability:≤0.10dB
- Interchangeability:≤0.20dB
- Durability: ≤0.20dB Max change, 500 mating
- Operating Temperature:-20℃ to +70℃
- Storage Temperature:-40℃ to +85℃
Applications
-
High-density data centers and server racks
-
40/100/400 GbE and high-speed Ethernet networks
-
Telecom and enterprise backbone networks
-
Cloud computing and enterprise networks
-
Front- or rear-rack, tool-free installation
-
MPO/MTP network upgrades
| Fiber Optical Adapters Packing Usually, we use transparent plastic boxes packaging, which can protect the adapter very well, and very neat. As shown in the picture. |  |
 | Our Quality Control We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods. Learn More... |
