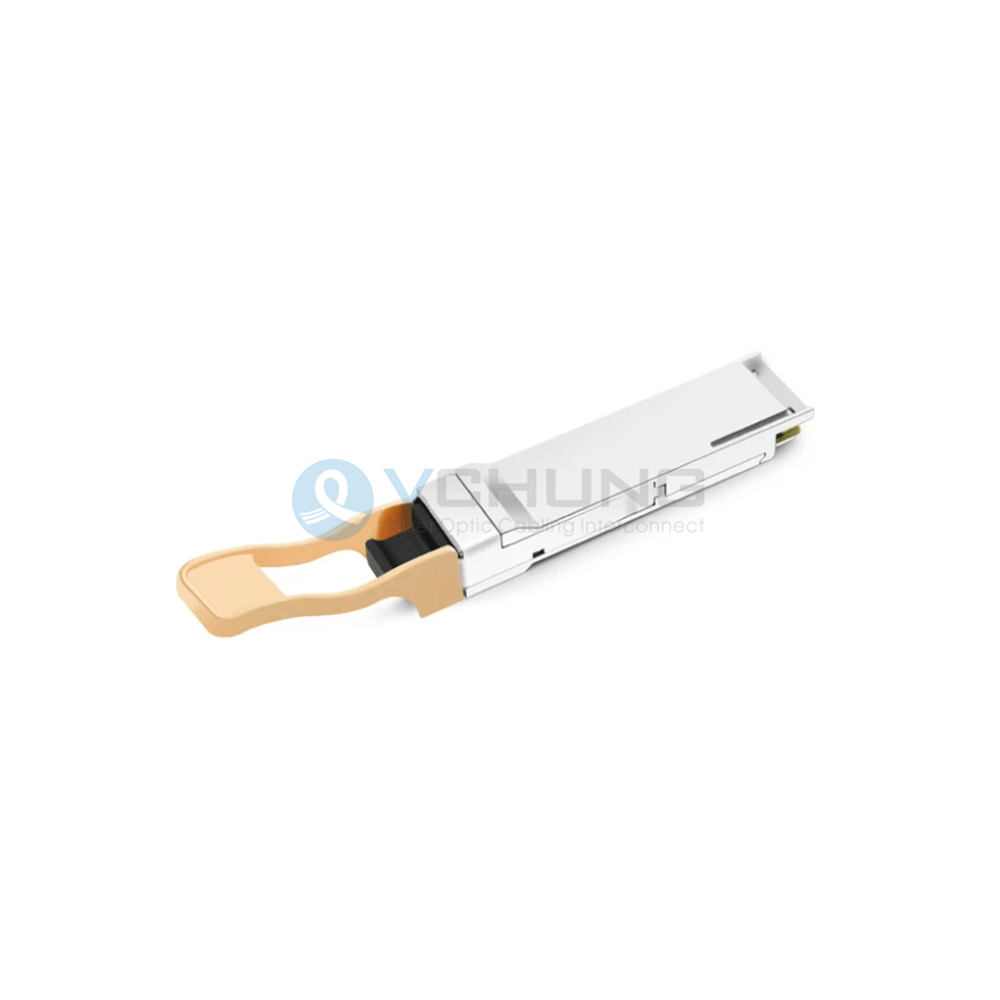

Vchung’ VC-QSFP56-200G-SR4 200G QSFP56 SR4 optical transceiver modules are designed to support 200G Ethernet, suitable for data center links up to 100m over multi-mode fiber with FEC. The 200G QSFP56 SR4 modules are compatible with IEEE 802.3cd 200GBASE-SR4. With a built-in 200G PAM4 DSP, the module supports four electrical interface lanes which operate in 50G PAM4 encoding mode resulting in 200G (4x50G) data rate. The 200GBASE-SR4 QSFP56 modules are used to connect multiple 200G signals from the server side (NICs) to the data center aggregation switch.
1.Hot-pluggable QSFP56 form factor full-duplex transceiver module
2.4-channel 850nm VCSEL array and PIN photo-detector array
3.Data rate up to 53.125Gbps (26.5625GBd PAM4) per channel
4.200G AUI-4 electrical interface
5.Compliant with QSFP56 MSA, CMIS 4.0 and IEEE 802.3cd 200GBASE-SR4
6.Built-in 200G PAM4 DSP, Compliant with IEEE 802.3bm 100GBASE-SR4
7.Reach up to 70m over OM3 MMF or 100m over OM4/OM5 MMF with FEC, MPO12 receptacle
1.200G Ethernet IEEE 802.3cd 200GBASE-SR4, 100G Ethernet IEEE 802.3bm 100GBASE-SR4
2.Data Center Interconnection, 5G Backhaul Network
|Form Factor||QSFP56||Data Rate||200G|
|Fiber Type||Multi-Mode Fiber||Modulation Technique||PAM4|
|Optical Components||SR4||Power Supply Voltage||Single 3.3V|
|Maximum Power Dissipation||5W||Receiver Sensitivity||/|
|Compatiblity||MSA Compliant||Operating Temperature||0℃ to +70℃|
|Optical transceivers port(LC) |
For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.
|Optical transceivers series|
Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface.
Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including:
1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC.
2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP.
3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.
The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
|Industrial Standards |
VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.
|Full MSA Compliance |
High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.
VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.
