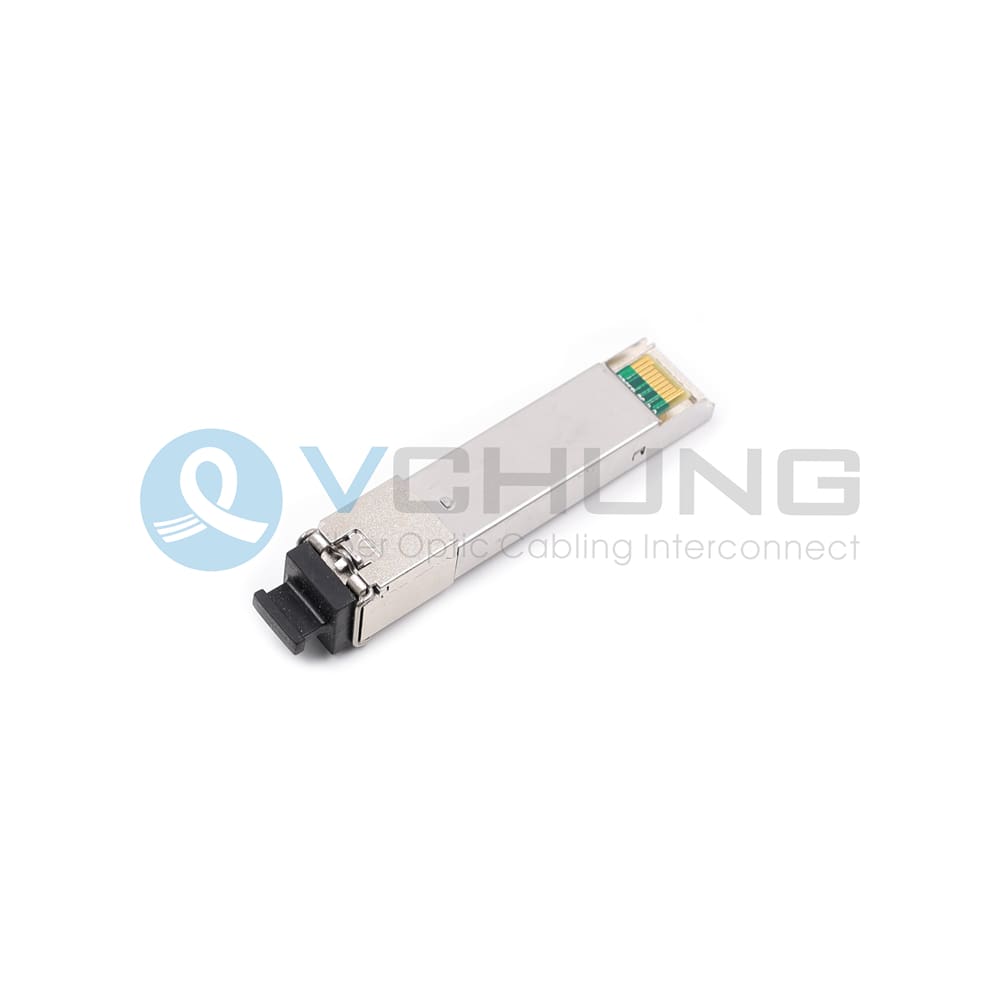

1.25Gbps SFP Bi-Directional Transceiver 3-200KM SMF SC DDM

Brief Introduction

1G SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rateof1.25Gbps/1.0625Gbps and 3km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integratedwithatrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safetyrequirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

Features

1. Uses a hot-pluggable SFP form factor
2. Full-duplex transceiver module
3. FP/DFB transmitter
4. PIN/APD receiver
5. Compliant with SFP MSA and Gigabit Ethernet standards
6. Compatible with 1G fiber channel and Synchronous Optical Network (SONET OC-24 / SDH STM-8) standards
7. Maximum speed of up to 1.25Gbps
8. Maximum transmission distance of 3km to 200km through a single-mode fiber
9. Single LC or SC optical port
10. Built-in digital diagnostic function
11. Commercial operating temperature range from 0 to 70 degrees Celsius / Industrial operating temperature range from -40 to +85 degrees Celsius
12. Power supply voltage of 3.3V
13. Compliant with RoHS environmental standards (lead-free)

Applications

1. Gigabit Ethernet
2. Fiber Channel
3. Switch to Switch interface
4. Switched backplane applications
5. Router/Server interface
6. Other optical transmission systems



Product PN	Product Description
VC-1GSFPBD-35-03S	1G BiDi SFP, 1310nm-Tx ,1550nm-Rx ,3km, SMF, Single SC Interface
VC-1GSFPBD-53-03S	1G BiDi SFP, 1550nm-Tx ,1310nm-Rx ,3km, SMF, Single SC Interface
VC-1GSFPBD-35-20S	1G BiDi SFP, 1310nm-Tx ,1550nm-Rx ,20km, SMF, Single SC Interface
VC-1GSFPBD-53-20S	1G BiDi SFP, 1550nm-Tx ,1310nm-Rx ,20km, SMF, Single SC Interface
VC-1GSFPBD-34-20S	1G BiDi SFP, 1310nm-Tx ,1490nm-Rx ,20km, SMF, Single SC Interface
VC-1GSFPBD-43-20S	1G BiDi SFP, 1490nm-Tx ,1310nm-Rx ,20km, SMF, Single SC Interface
VC-1GSFPBD-35-40S	1G BiDi SFP, 1310nm-Tx ,1550nm-Rx ,40km, SMF, Single SC Interface
VC-1GSFPBD-53-40S	1G BiDi SFP, 1550nm-Tx ,1310nm-Rx ,40km, SMF, Single SC Interface
VC-1GSFPBD-34-40S	1G BiDi SFP, 1310nm-Tx ,1490nm-Rx ,40km, SMF, Single SC Interface
VC-1GSFPBD-43-40S	1G BiDi SFP, 1490nm-Tx ,1310nm-Rx ,40km, SMF, Single SC Interface
VC-1GSFPBD-45-60S	1G BiDi SFP, 1490nm-Tx ,1550nm-Rx ,60km, SMF, Single SC Interface
VC-1GSFPBD-54-60S	1G BiDi SFP, 1550nm-Tx ,1490nm-Rx ,60km, SMF, Single SC Interface
VC-1GSFPBD-45-80S	1G BiDi SFP, 1490nm-Tx ,1550nm-Rx ,80km, SMF, Single SC Interface
VC-1GSFPBD-54-80S	1G BiDi SFP, 1550nm-Tx ,1490nm-Rx ,80km, SMF, Single SC Interface
VC-1GSFPBD-45-120S	1G BiDi SFP, 1490nm-Tx ,1550nm-Rx ,120km, SMF, Single SC Interface
VC-1GSFPBD-54-120S	1G BiDi SFP, 1550nm-Tx ,1490nm-Rx ,120km, SMF, Single SC Interface
VC-1GSFPBD-45-160S	1G BiDi SFP, 1490nm-Tx ,1550nm-Rx ,160km, SMF, Single SC Interface
VC-1GSFPBD-54-160S	1G BiDi SFP, 1550nm-Tx ,1490nm-Rx ,160km, SMF, Single SC Interface
VC-1GSFPBD-45-200S	1G BiDi SFP, 1490nm-Tx ,1550nm-Rx ,200km, SMF, Single SC Interface
VC-1GSFPBD-54-200S	1G BiDi SFP, 1550nm-Tx ,1490nm-Rx ,200km, SMF, Single SC Interface



Optical transceivers port(LC) For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.

---

Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.

---

Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.

---

Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.

---

Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.

---

Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.

---



This drawing is for reference only. If you need more information and need to modify the drawing, please Email us：support@vchung.com
