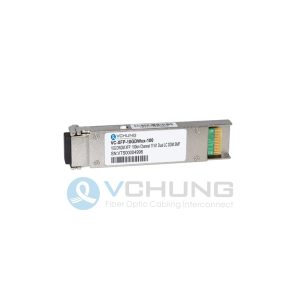

10G Tunable XFP DWDM C-band 80KM

Brief Introduction

Vchung‘s’ 10G XFP DWDM Tunable 80km optical transceiver is a high performance and cost effective XFP transceiver modules designed for 10G SDH/SONET, 10G Ethernet DWDM fiber optic transmission applications, designed to support the full range of C-band ITU-T wavelengths data rates from 9.95Gbps to 11.3Gbs and distances up to 80km.

This transceiver contains both transmit and receive sections. An MZM, (C-band tunable laser with a wavelength locker) a laser driver and the supporting circuits constitute the transmit path while an APD ROSA, a post amplifier and the supporting circuit form the receive section. A microcontroller handles the communications between the module and the host board as well as the control and monitoring functions for both transmit and receive sections. A Clock and Data Recovery circuit (CDR) functions for both transmit and receive.

The transceiver module is fully compliant with the XFP MSA standard and can be hot-plugged into the 30-pin XFP connector on the host board. By limiting inrush currents, the device will not disturb the operations of the host board. The high-speed electrical interface is fully compliant with the XFI standard, providing transmission paths for the 10G signals.

Features

1. Supports 9.95Gb/s to 11.3Gb/s transmission
2. Client side and Line side loopback functions
3. XFP MSA compliant form factor connector
4. XFI electrical interface compliant
5. Hot-pluggable XFP footprint
6. 80km MZM Tunable TOSA
7. Supports 50GHz ITU-based channel spacing (C-Band), cover 80 ITU-based channel
8. With wavelength locker function, wavelength precision about 0.02nm
9. -300 to +1600ps/nm Dispersion Tolerance
10. Power Dissipation < 3.5W
11. I2C interface for diagnostic monitoring
12. Operation Temperature: -5~70°C
13. RoHS6 compliant (lead free)

Applications

1. DWDM 10Gb/s SONET/SDH
2. DWDM 10Gb/s SONET/SDH with FEC
3. DWDM 10Gb/s Ethernet & 10G Fiber Channel
4. DWDM 10Gb/s Ethernet & 10Gb/s Fiber Channel with FEC

Specifications

PN	VC-XFP-10GTUDWxx-80	Data Rate	10Gbps
Wavelength	C-band 80 ITU-based channel	Reach	80km
Media	Single-Mode	Device Type	XFP DWDM
Connector Type	LC duplex	DDMI	with
Optical Components	EML DWDM	Power Supply Voltage	3.3V
Output Power	0~4dBm	Receiver Sensitivity	<-24dBm
Compatiblity	MSA Compliant	Operating Temperature	0℃ to +70℃

Grid and Wavelength Information

Channel Code (XX)	Wavelength (nm)	Frequency (THz)
63	1527.22	196.30
62	1527.99	196.20
61	1528.77	196.10
60	1529.55	196.00
59	1530.33	195.90
58	1531.12	195.80
57	1531.90	195.70
56	1532.68	195.60
55	1533.47	195.50
54	1534.25	195.40
53	1535.04	195.30
52	1535.82	195.20
51	1536.61	195.10
50	1537.40	195.00
49	1538.19	194.90
48	1538.98	194.80
47	1539.77	194.70
46	1540.56	194.60
45	1541.35	194.50
44	1542.14	194.40
43	1542.94	194.30
42	1543.73	194.20
41	1544.53	194.10
40	1545.32	194.00
39	1546.12	193.90
38	1546.92	193.80
37	1547.72	193.70
36	1548.51	193.60
35	1549.32	193.50
34	1550.12	193.40
33	1550.92	193.30
32	1551.72	193.20
31	1552.52	193.10
30	1553.33	193.00
29	1554.13	192.90
28	1554.94	192.80
27	1555.75	192.70
26	1556.55	192.60
25	1557.36	192.50
24	1558.17	192.40
23	1558.98	192.30
22	1559.79	192.20
21	1560.61	192.10
20	1561.42	192.00
19	1562.23	191.90
18	1563.05	191.80
17	1563.86	191.70





---

Optical transceivers port(LC) For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.

---

Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.

---

Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.

---

Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.

---

Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.

---

Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.

---



This drawing is for reference only. If you need more information and need to modify the drawing, please Email us：support@vchung.com
