1x8 800GHz DWDM Multiplexer ABS Box Package With LC Connector

Quick Details
Wavelength: ITU Grid Channel: Customized
Isolation: >30dB Directivity: >50dB
Maximum Power Handling: 500mW Connector Type: Customized

Model Number: #51105 Category:

Brief Introduction

Vchung offers a full range of DWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions. Some most common ones are: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.
Vchungs’ Doarse wavelength division multiplexer (DWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
VCHUNG DWDM Mux Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber. Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a DWDM Mux/Demux module to reduce the IL as an option. Standard DWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.


1.ITU channel spcaing
2.Wide pass band
3.High Channel Isolation
4.High Stability and reliability
5.Epoxy-free on Optical Path
6.Access Network
7.Good temperature stability.


1.Line Monitoring
2.DWDM Network
4.Cellular Application
5.Fiber Optical amplifier
6.Acess Network

Parameter 4 Channel 8 Channel
Add Drop Add Drop
Channel Wavelength (nm) ITU Grid
Center wavelength Accuracy (nm) ±0.05(100G)/ ±0.1(200G)
Channel Spacing (GHz) 100
Channel Passband (@-0.5dB bandwidth (nm) >0.22 (100G) / >0.5(200G)
Isolation (dB) In—Drop@drop 2.0 3.2
Add—Out@add 2.0 3.2
In—out@other 2.0 5.0
Add/Drop Channel Ripple (dB) <0.3
Isolation @Add/Drop Channel Adjacent N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/℃) <0.005
Wavelength Temperature Shifting (nm/℃) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 500
Opterating Temperature (℃) -10~+75
Storage Temperature (℃) -40~85
Package dimension (mm) L100 x W80 x H10

Specification may change without notice. Above specification are for device without connector.

For the CWDM/DWDM package, there are probably the following packaging options.

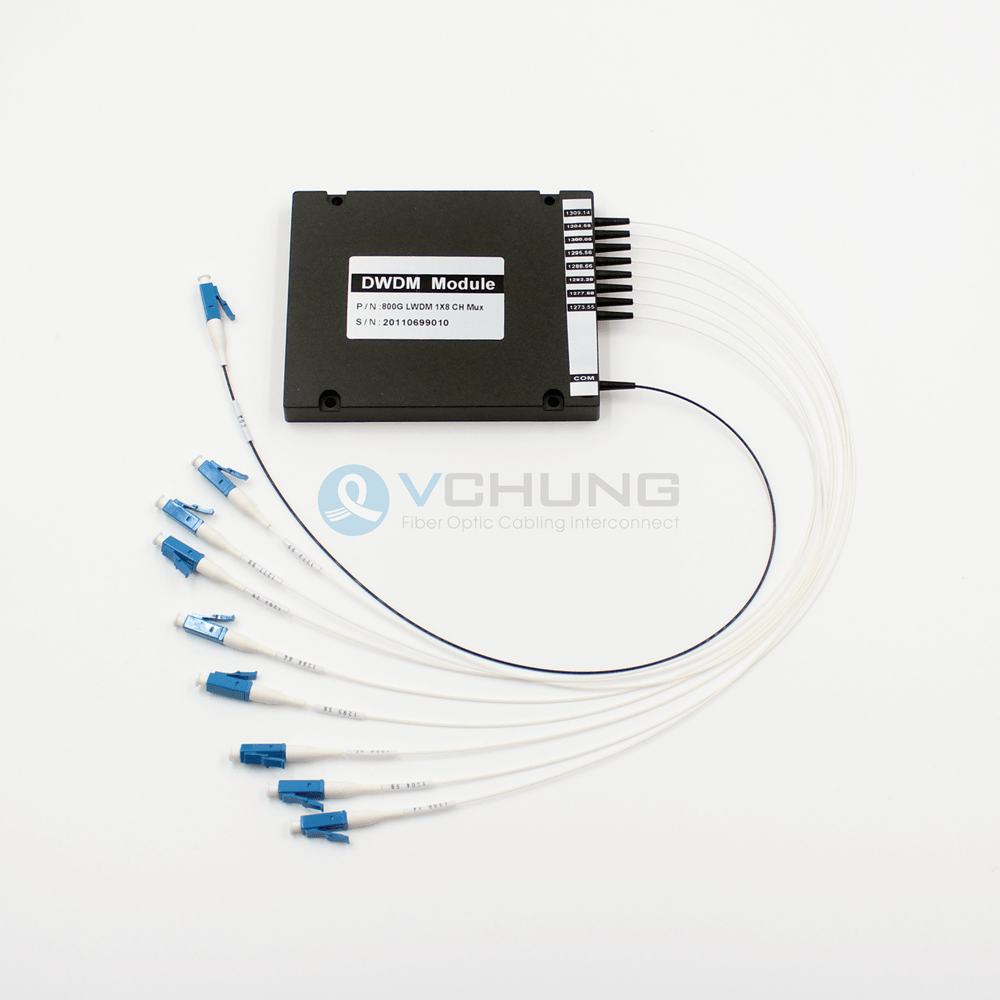

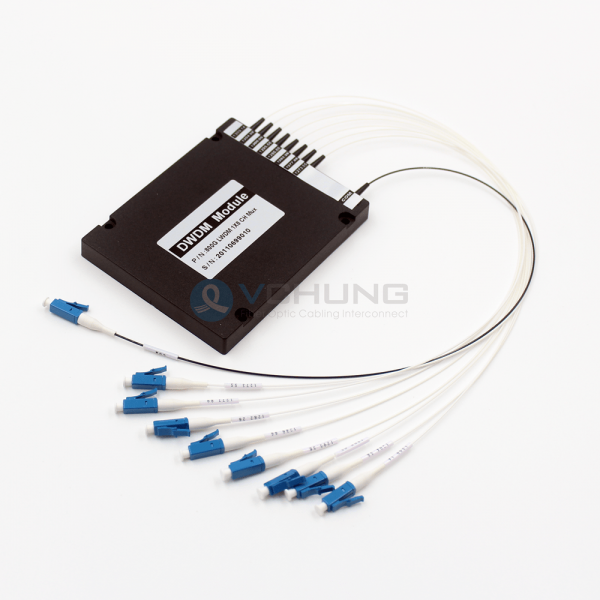

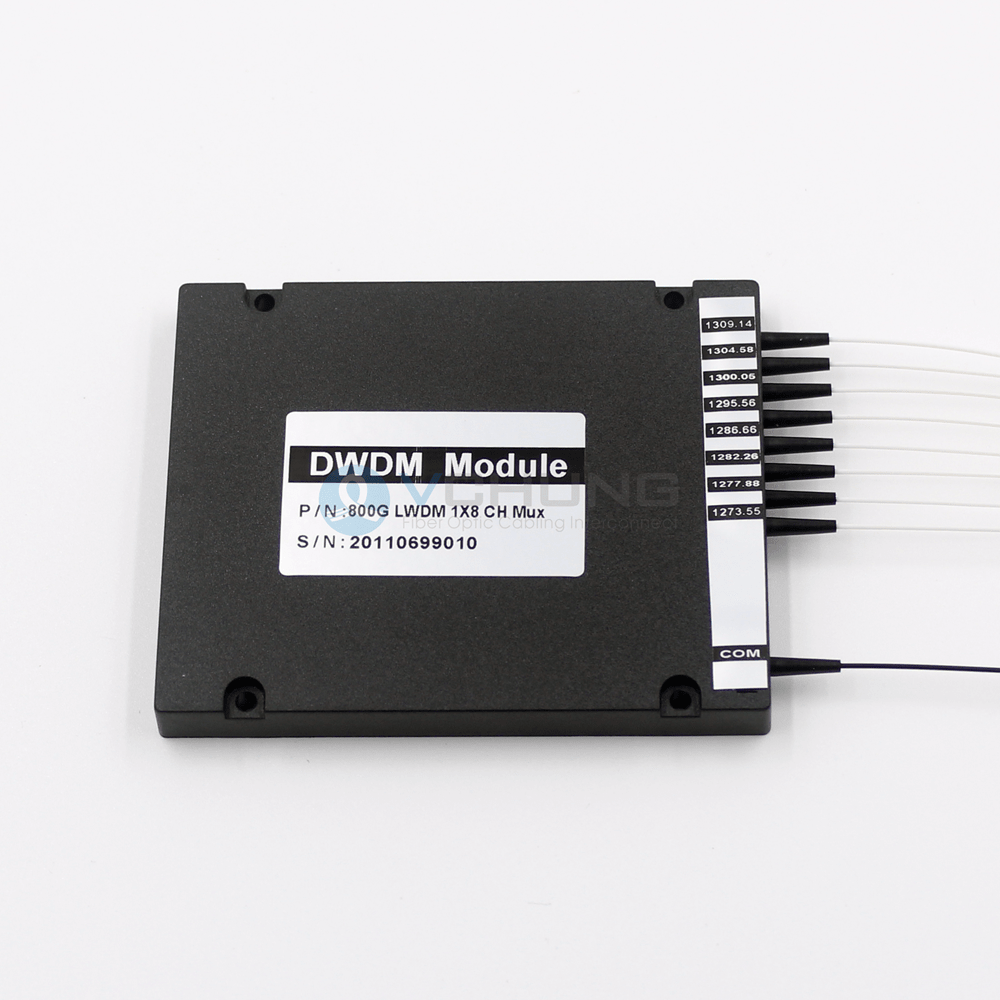

 1x8 800GHz DWDM Multiplexer ABS Box Package With LC Connector



DWDM MuxDemux Production Overview

DWDM MuxDemux Production Overview

Products drawing as follow:

1x8 800GHz DWDM Multiplexer ABS Box Package With LC Connector 1x8 800GHz DWDM Multiplexer ABS Box Package With LC Connector

This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
