Brief Introduction

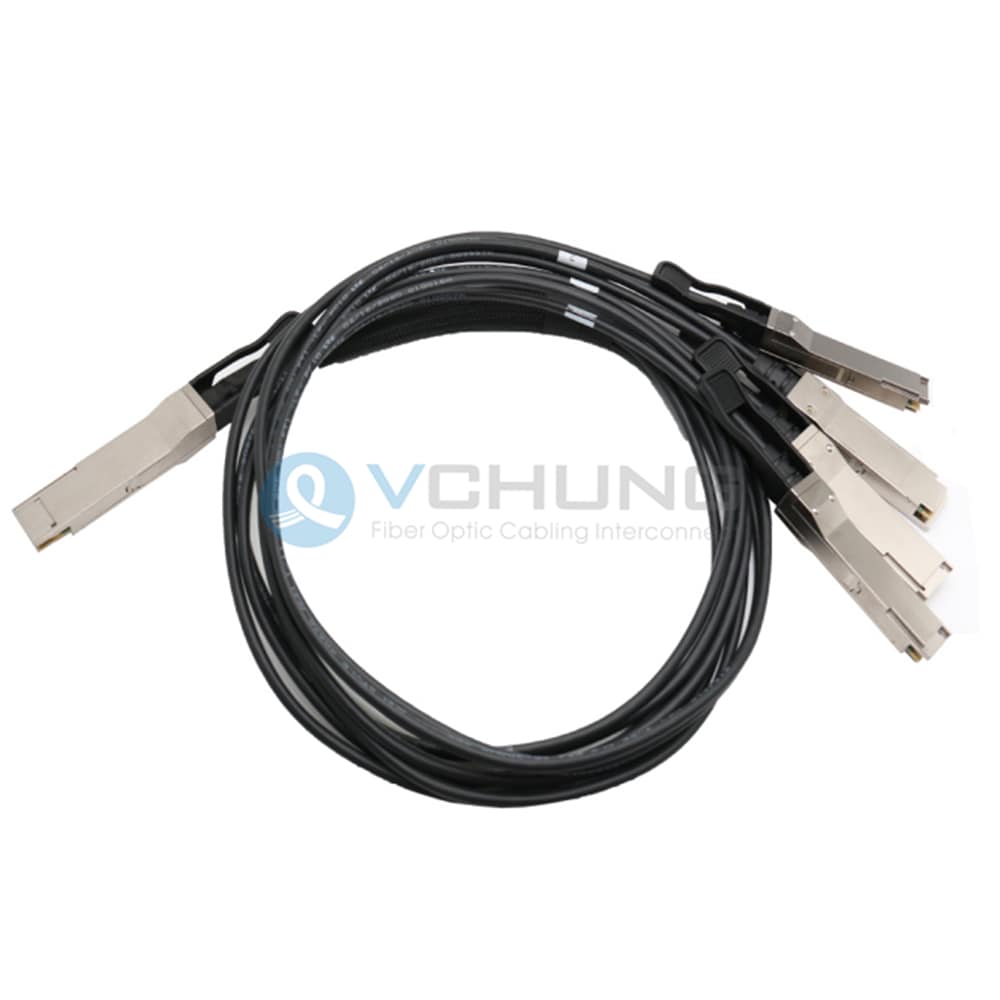

QSFP-4SFP10G-CUxM -VC QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4×10 Gb/s per channel) specifications.
Features
1.Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant)
2.Connector B: (4) SFP+ 10.0 Gbps Rated Connectors (SFF-8431 Compliant)
3.Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch
4. Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel
5.Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
6. Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching
7. Bridge the gap between your 10G and 40G capable switches/host adapters
8. Low cross-talk and pair-to-pair skew maintains signal integrity
9. Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
10. Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standard
11.Designated form factor and electrical compliance for QDR InfiniBand
12.The perfect direct attached storage splitter cable for Fibre Channel & SAS
13.Enjoy a reduced power budget and lower port cost compared to optical
14.Fully RoHS compliant for environmental protection
Applications
1.InfiniBand4x SDR, DDR, QDR
2.10G/40Gigabit Ethernet • Switches, Routers, and HBAs
3.SAS & Fiber Channel • Rack-to-Rack, Shelf-to-Shelf Interconnect • Enterprise & Data Center Networking & Storage
4.ATM/SDH/SONET
Specifications
OEM Part Number | QSFP-4SFP10G-CUxM -VC | Form Factor | QSFP+ DAC Cable |
Connector Type | QSFP+ to 4xSFP+ | Cable Type | Twinax |
Passive or actively equalized | Passive | Max Data Rate | 40Gb/s |
Cable length | 0.5M to 7M available | Wire Gauge | 30AWG; 26AWG;24AWG |
Power Supply Voltage | 3.3V | Jacket Material | PVC(OFNR) |
Minimum cable bend radius | 20 mm | Cable impedance | 100 Ω |
Protocols | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel | Operating Temperature | 0℃ to +70℃ |
![]() | Optical transceivers port(LC) For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals. |
Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4. | ![]() |
Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied. | ![]() |
![]() | Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process. |
![]() | Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally. |
Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service. | ![]() |
