Brief Introduction

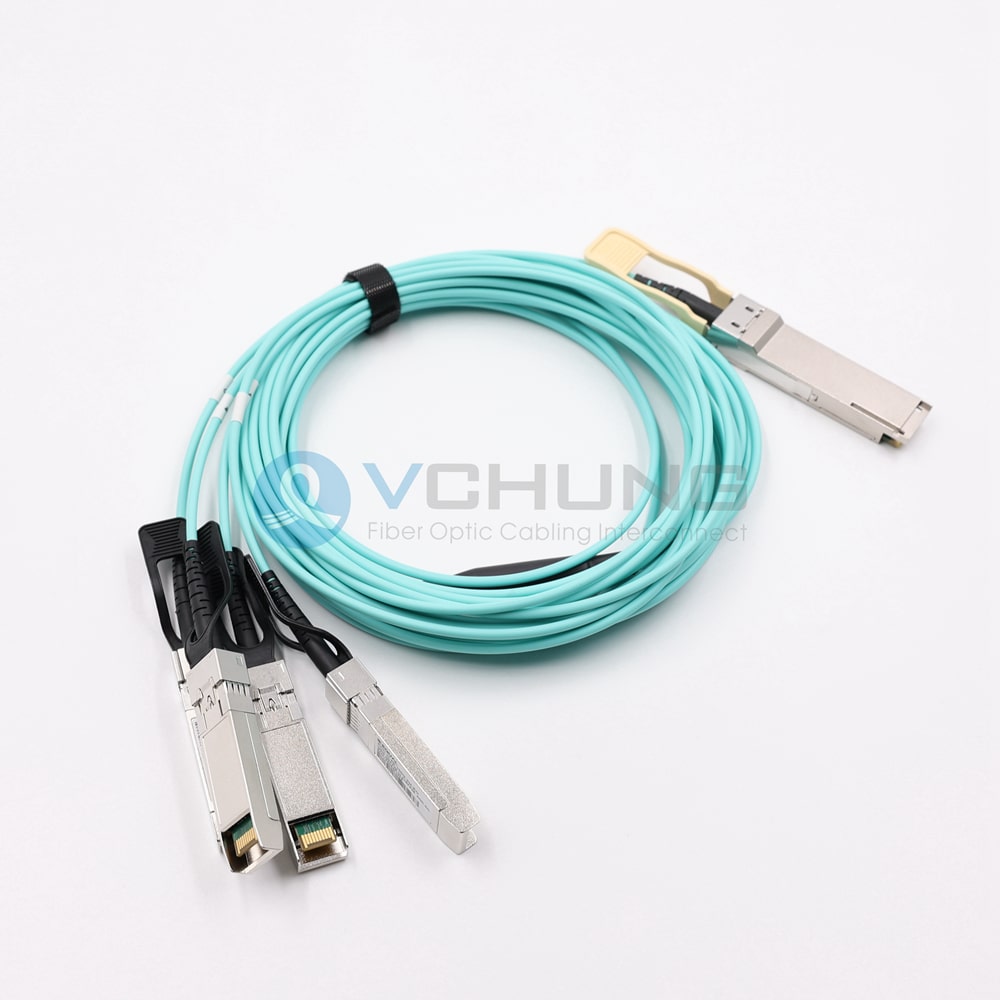

The QSFP-4SFP-AOCxxM-VC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4× SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 4× 10G applications. This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications. This product is leveraged from Vchung QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. Where applicable, consult these respective datasheets,This AOC incorporates Vchung’ proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features
1. Transmission data rate up to 10.3Gbit/s per channel • Connector 1: QSFP+ (SFF-8436) • Connector 2: 4 x SFP+ (SFF-8431) • Cable Type: Active Optical Cable (AOC) Cable
2.850nm VCSEL transmitter, PIN photo-detector receiver, up to 300m on OM3 MMF
4. Available lengths (in meters): 1, 2, 3, 4, 5…. • Hot pluggable
5.Management interface and digital diagnostic monitoring(DDM) through I2C
7.Support Rx output pre-emphasis
8.Commercial temperature range (COM): 0~ 70 °C
9.Low power dissipation: less than 1.3W on QSFP+ end, less than
10.1W on SFP+ ends
11.RoHS-6 compliant
Applications
2. 40G to 4×10G density applications for Datacom and Proprietary protocol applications
3. Datacenter
Specifications
OEM Part Number | QSFP-4X10G-AOCxxM-VC | Form Factor | QSFP+ Breakout AOC |
Connector Type | QSFP to 4xSFP+ | Device Type | Active |
Wavelength | 850nm | Max Data Rate | 40Gb/s |
Cable length | 1M to 100M | Fiber Cable | OM3 MMF |
Power Supply Voltage | 3.3V | Cable Jacket Type | LSZH |
Minimum cable bend radius | 7.5mm | Operating Temperature | 0℃ to +70℃ |
Protocols | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
![]() | Optical transceivers port(LC) For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals. |
Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4. | ![]() |
Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied. | ![]() |
![]() | Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process. |
![]() | Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally. |
Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service. | ![]() |
