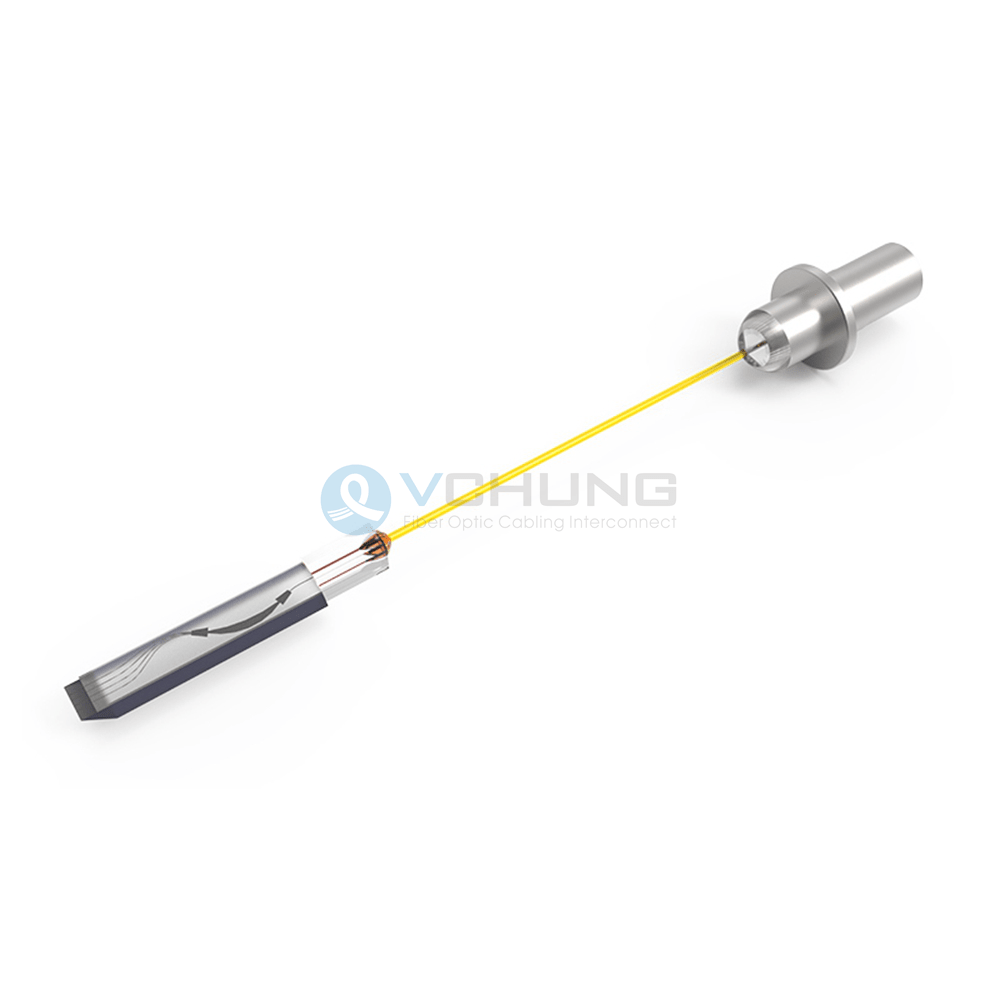

Demux 4CH-CWDM AWG Design For 40/100G Active Optical Transceiver Module Package

Quick Details
Wavelength: 1270~1610nm Channel: 4
Isolation: >30dB Directivity: >50dB
Maximum Power Handling: 300mW Connector Type: Customized

Model Number: #18102 Category:

Brief Introduction

The 4CH-CWDM type AWG of MUX and Demux are designed for 40/100G active optical module package, such as CFP4, CWDM4, LR4, CLR4 and LAN-WDN. It have small package size and easy to assembly. It can be replacing TFF (Thin film filter) type CWDM. As a result of cost-effective advantage and compact packaging, more and more module manufacturers use CWDM AWG to package their higher speed optical modules.

Features

  1. 40/100/200G optical transceiver module package
  2. 100% tested before delivery
  3. Compact Size

Applications

  1. 100G QSFP28-LR
  2. 100G QSFP28-CWDM4
  3. Silicon Coupling

40.100G MUX.DEMUX AWG

40.100G MUX.DEMUX AWG DATASHEET

Products drawing as follow:

Demux 4CH-CWDM AWG Design For 40/100G Active Optical Transceiver Module Package

This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
