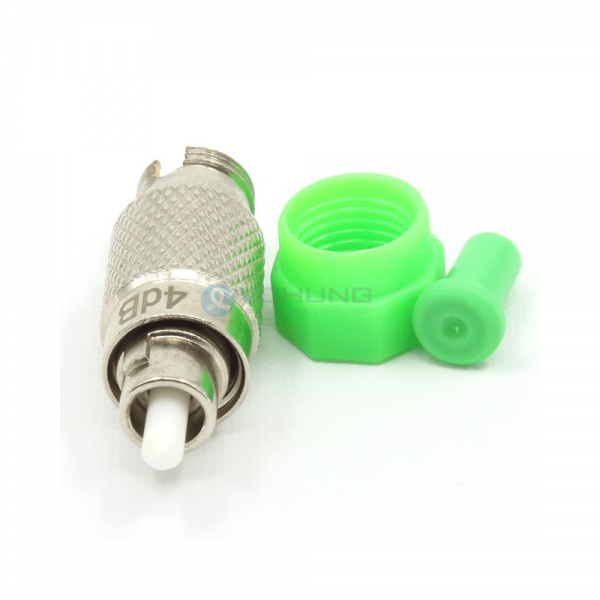

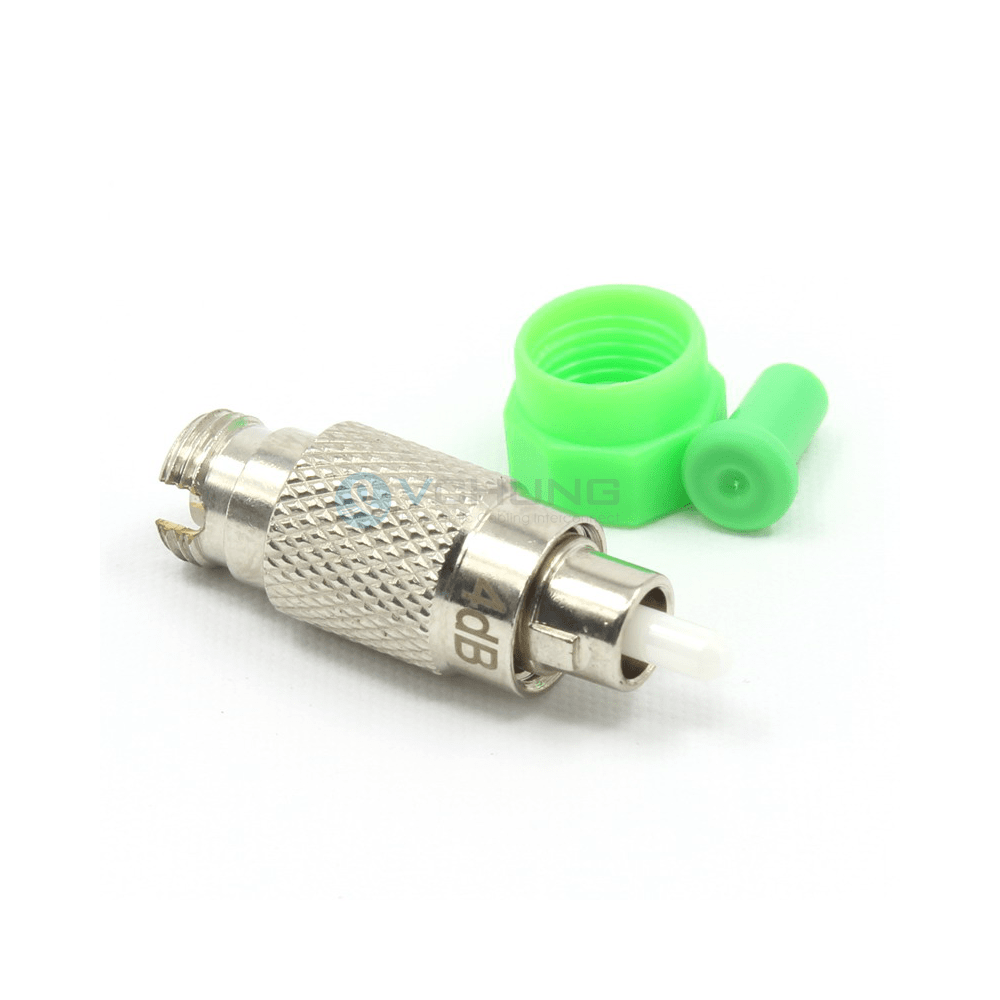

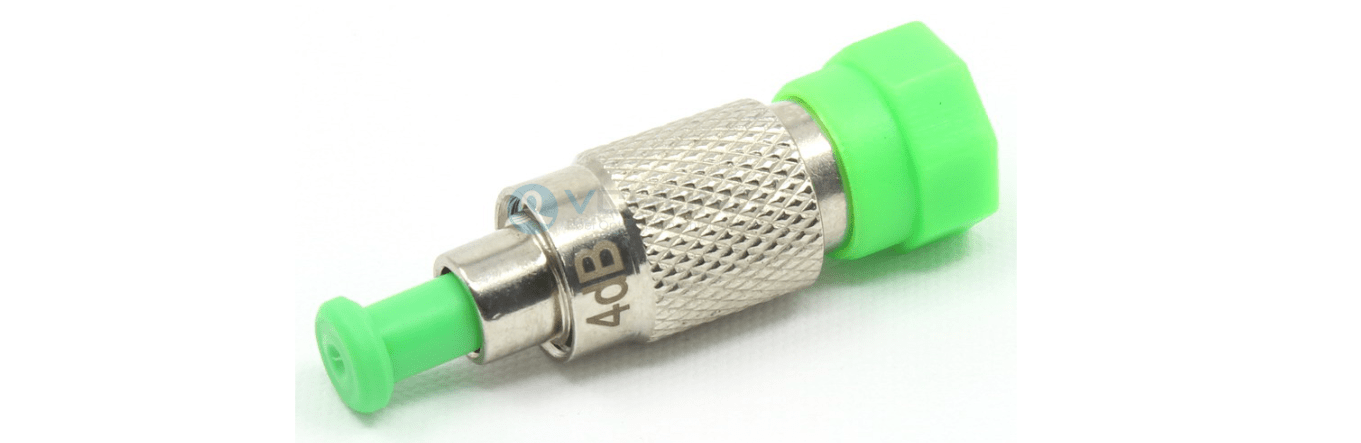

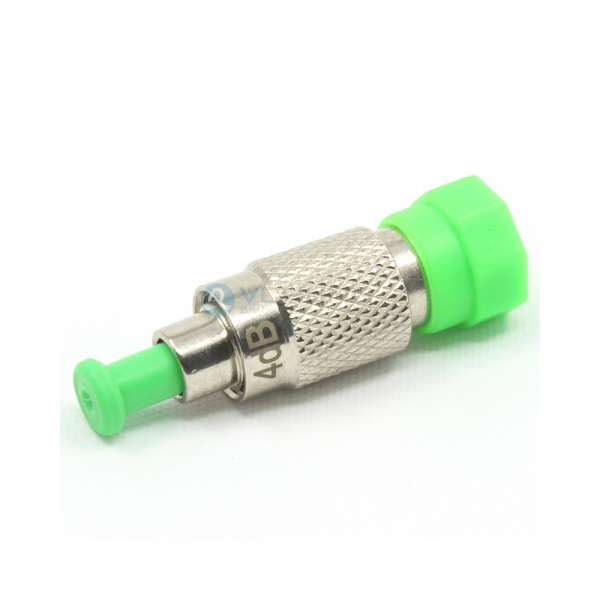

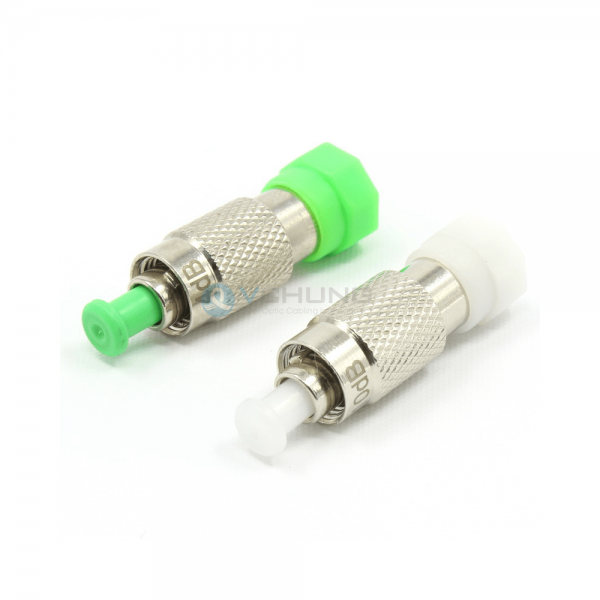

The Plug type fixed attenuator is a Male to Female attenuator. One end is a connector type, and the other end is an adapter type. The attenuation fiber inserts the ferrule and fixed. According to different attenuation fibers, the different attenuation values attenuator can be manufactured. Put the attenuator in the optical link, that means, the optical link thought the attenuation fiber, which can reduce optical power. So the optical components will not be damaged due to excessive power.
FC attenuator is applied to FC optical fiber interface. The external reinforcement method is a metal sleeve and the fastening method is a screw buckle. Generally used on the ODF side (most used on distribution frames)
1.High attenuation accuracy.
2.Low additional loss.
4.Male to female fixed attenuation and easy to use.
1.Debug optical power performance.
2.Calibration calibration of fiber optic instruments.
3.Fiber signal attenuation in cabling system.
4.Optical fiber communication system.
|Attenuator Type||FC (plug type fixed)||Polish Type||APC|
|Fiber Mode||Single-mode||Test Wavelength||1310/1550nm|
|Operating Wavelength Range||1260~1650nm||Body material||Copper|
|Attenuation Tolerance(1~5dB)||±0.5dB||Attenuation Tolerance(6~20dB)||±10%dB|
|Operating Temperature||-20℃ to +70℃||Storage Temperature||-40℃ to +85℃|
NOTE:One ziplock bag for one Attenuator.
|Our Quality Control |
We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.
