Brief Introduction

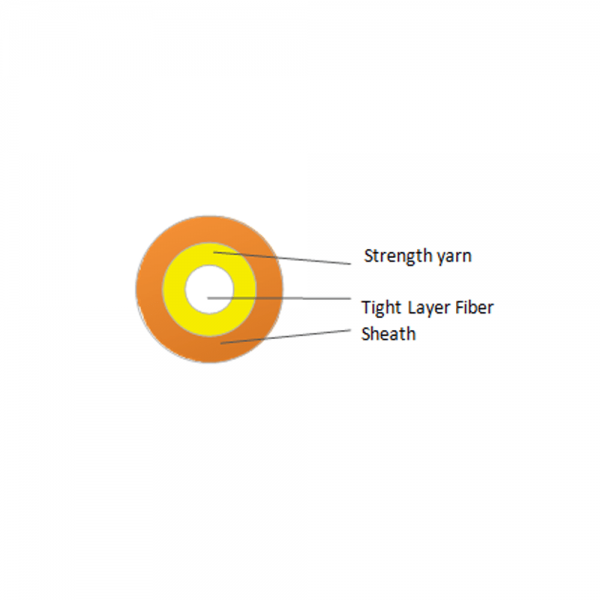

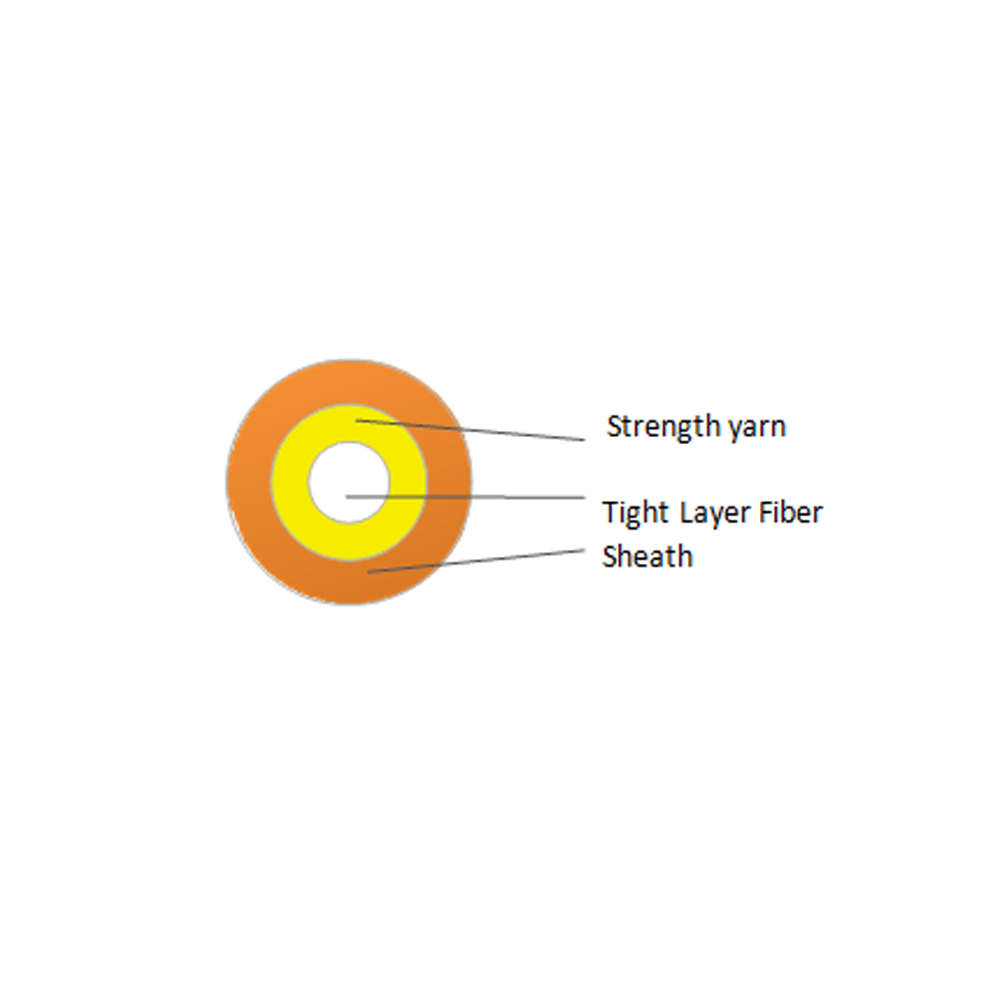

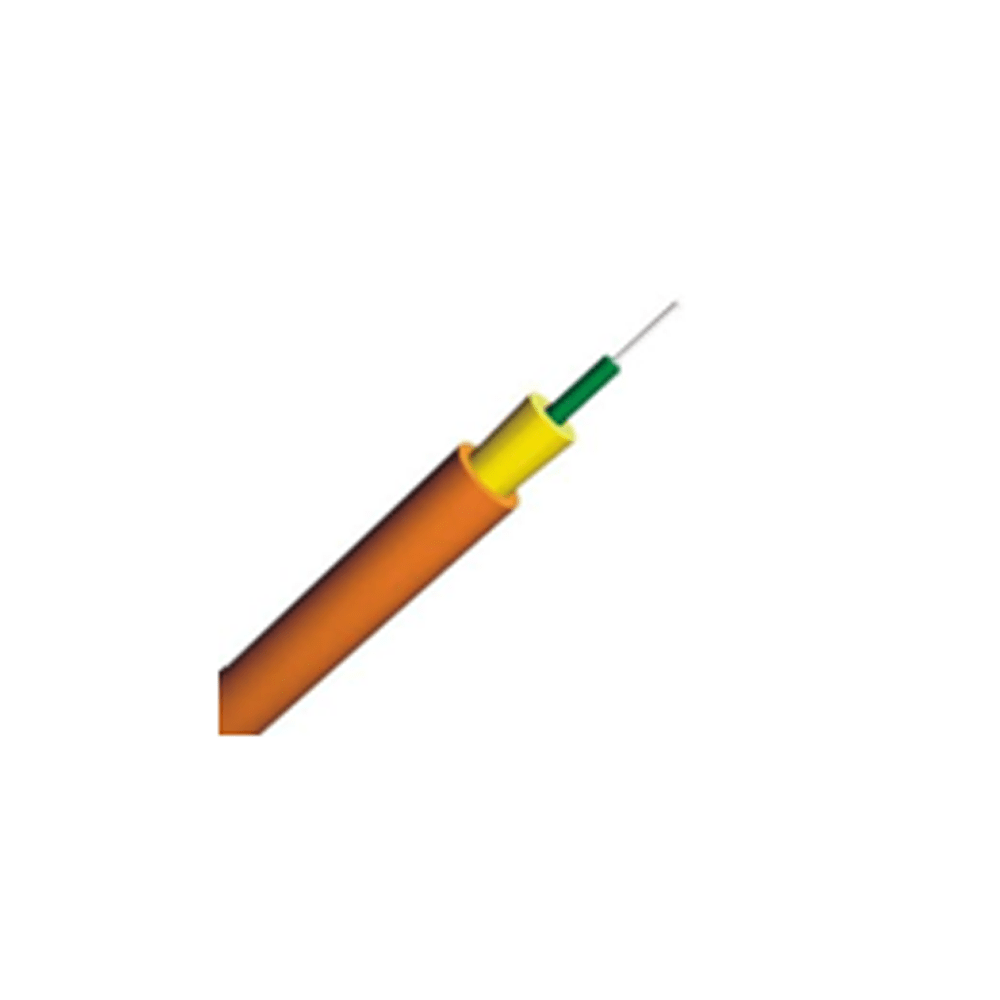

High-strength textile fiber reinforced components to ensure that the optical fibers do not stretch the strain, to ensure long-term Wending transmission characteristics. Small diameter, light weight, flame retardant, easy peeling, low attenuation, with high softness, tight sets of cable can be directly connected, without the transition junction box and tail fiber, suitable for construction operation, maintenance convenience.
Features
- Reliable quality.
- Small diameter.
- light weight.
- low attenuation.
Applications
The floor and the building connect the optical cable, can be direct as the tail fiber and jumper, for the optical communication equipment room, light wiring frame connection. Optical connections for optical instruments and equipment.
Specifications
Fiber core number | OD | weight | Tensile Loading Test | Repeated Bending | Crush Resistance Test | ||
mm | kg/km | Short-tensile load | Long-tensile load | developments | static | N/100mm2 | |
N | N | mm | mm | ||||
1 | 1.6 | 2.9 | 80 | 40 | 20D | 10D | 500 |
1 | 1.8 | 3.2 | 80 | 40 | 20D | 10D | 500 |
1 | 2.0 | 3.5 | 100 | 60 | 20D | 10D | 500 |
1 | 2.4 | 5.0 | 100 | 60 | 20D | 10D | 500 |
1 | 3.0 | 6.8 | 150 | 80 | 20D | 10D | 500 |
How to choose fiber? What is the difference about Several type multimode fiber?
OM4 and OM3 fiber are Gigabit fiber, various performance indexes is better than OM1 and OM2.
Fiber Type | Core/Cladding (um) | Light Source | Bandwidth @850nm OFL (MHZ·KM) | Bandwidth @850nm EMB (MHZ·KM) | 10Gpbs Ethernet 10G BASE SR/LR | 40Gpbs Ethernet 40G | 100Gpbs Ethernet 100G BASE SR10/IR4 |
OM1 | 62.5/125 | LED | 200 | Nonsupport | 33M(SR) | Nonsupport | Nonsupport |
OM2 | 50/125 | LED | 500 | Nonsupport | 82M(SR) | Nonsupport | Nonsupport |
OM3/150 | 50/125 | VSCEL or LED | 700 | 950 | 150M(SR) | 50M(SR4) | 50M(SR10) |
OM3/300 | 50/125 | VSCEL or LED | 1500 | 2000 | 300M(SR) | 100M(SR4) | 100M(SR10) |
OM4 | 50/125 | VSCEL or LED | 3500 | 4700 | 500M(SR) | 150M(SR4) | 150M(SR10) |
OM5 | 50/125 | VSCEL or LED | Operating in the range of 850-950nm, support SWDM system, @850nm OFL 3500MHZ·KM, @850nm EMB 4700MHZ·KM, @953nm OFL 1850MHZ·KM, @953nm EMB 2470MHZ·KM,@1300nm OFL 500MHZ·KM. |
OFL= Over Filled Launch; EMB=Effective Modal Bandwidth
