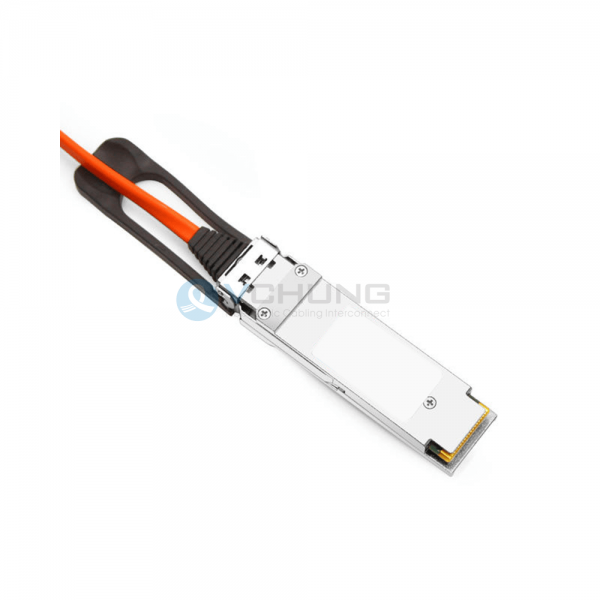

QSFP-H40G-AOCxxM-VC The QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
1.Full Duplex 4 Channel 850nm Parallel Active Optical Cable
2.Transmission data rate up to 10.3Gbit/s per channel • Reliable VCSEL and PIN photonic devices
3.Hot pluggable electrical interface
4.Differential AC-coupled high speed data interface • Available lengths (in meters): 10, 20, 30, 40, 50… • Commercial temperature range(COM): 0 to 70°C
5.Single 3.3V power supply
6.Low power consumption: less than 1.5 W per end
7.I2C standard management interface
8.Excellent high speed signal integrity
9.Complies with QSFP+ MSA high-density form factor
10.Compliant to industrial standard SFF-8436 QSFP+ active optical modules
2. 10G/40G Ethernet (10G/40GbE)
3.4G/ 8G/ 10G Fibre Channel • PCI-Express, SAS/SATA, Fibre Channel compatible interconnect
4.Proprietary high speed, high density data transmission
5.Switch and router high speed backplane interconnect
6.High performance computing, server and data storage
|OEM Part Number||QSFP-H40G-AOCxxM-VC||Form Factor||QSFP AOC|
|Connector Type||QSFP to QSFP||Device Type||Active|
|Wavelength||850nm||Max Data Rate||40Gb/s|
|Cable length||1M to 100M||Fiber Cable||OM3 MMF|
|Power Supply Voltage||3.3V||Cable Jacket Type||LSZH|
|Minimum cable bend radius||7.5mm||Operating Temperature||0℃ to +70℃|
|Protocols||40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel|
|Optical transceivers port(LC)
For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.
|Optical transceivers series|
Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface.
Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including:
1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC.
2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP.
3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.
The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.
|Full MSA Compliance
High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.
VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.
