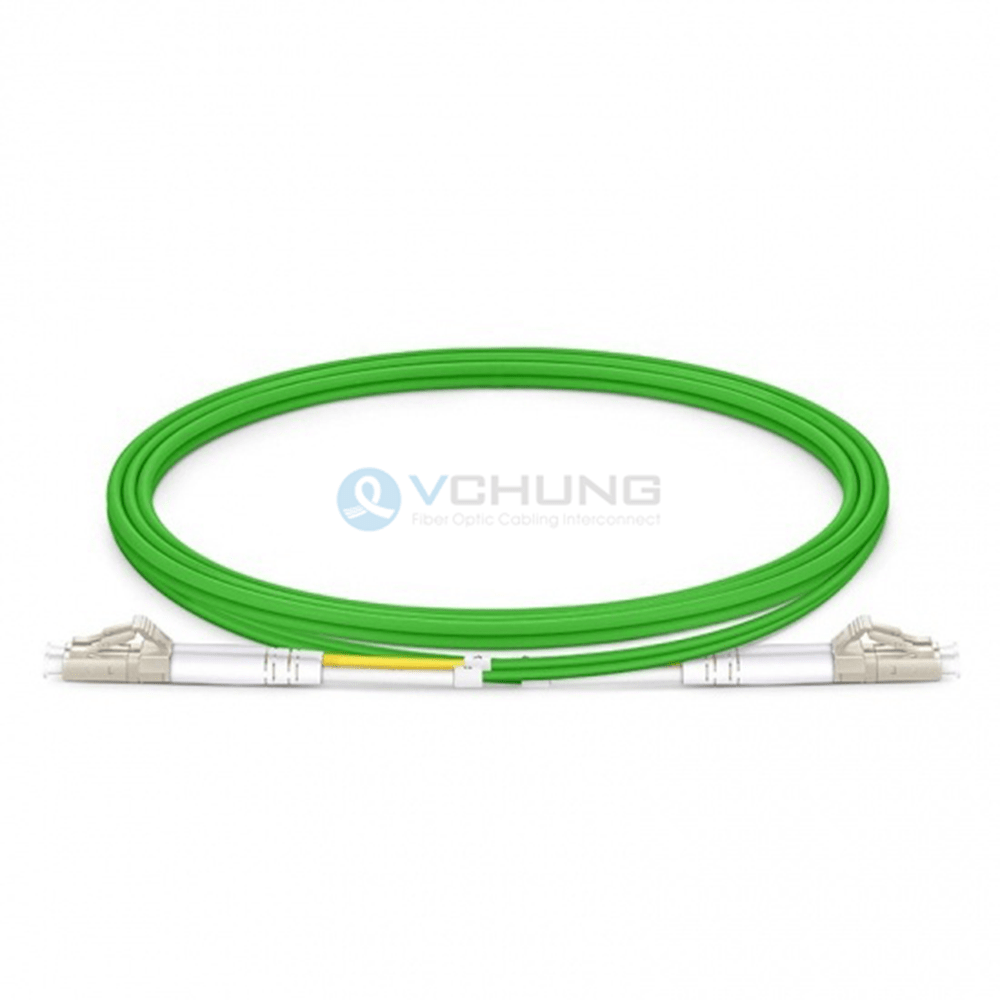

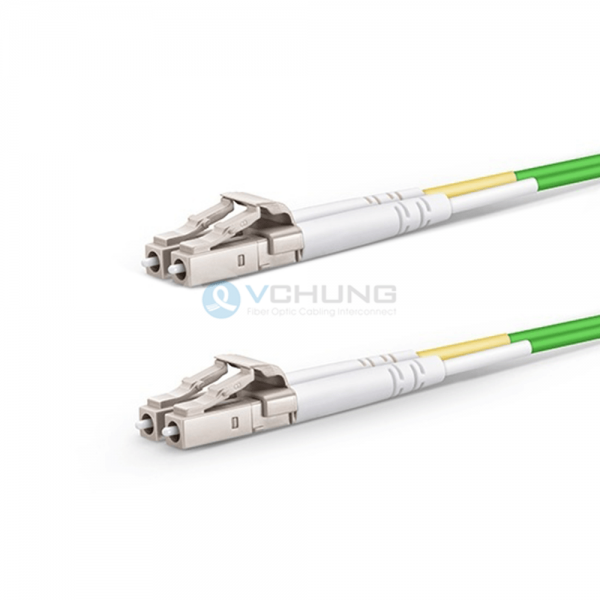

LC UPC to LC UPC 2.0mm Duplex OM5 50/125um Multimode LSZH Fiber Optic Patch Cable

Quick Details
Cores number: Duplex Connector Type: LC
Fiber Type: Multimode OM5 Cable Type: OD.=2.0mm duplex
Jacket Material: LSZH Insertion Loss: 0.30dB max

Model Number: #22201 Category:

Brief Introduction

The color of OM5 fiber cable is usually lime green. OM5 fiber wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.

OM5 fiber meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.


  1. Reliable quality.
  2. Simplex or duplex is customized.
  3. Support use in attaching directly to 10G QSFP or QSFP+ module.
  4. Compliance with TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements.


  1. Optical fiber test system.
  2. Building cabling system
  3. Fiber Access Network
  4. Fiber optic data transmission and FTTX


Connector A LC/UPC duplex Connector B LC/UPC duplex
Fiber Mode MM OM5 50/125um Test Wavelength 850/1300nm
Polish Type UPC to UPC Minimum Bend Radius 7.5mm OM5 fiber
Insertion Loss ≤0.30dB(0.20dB Typ.) Return Loss ≥30dB
Attenuation at 850nm ≤2.3dB/KM Attenuation at 1330nm ≤0.6dB/KM
Cable Jacket LSZH Cable Jacket O.D 2.0mm duplex
Installation Tensile Load 120N Long-Term Tensile Load 50N
Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +85℃

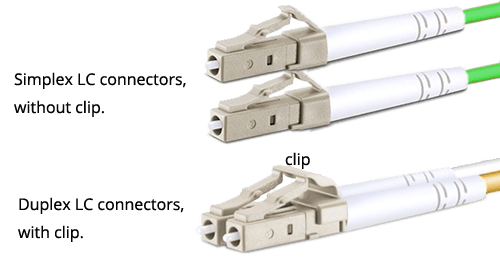

For duplex patch-cord, the connectors with clip or without clip?

Before confirm the order, it's necessary to confirm the connector with clip or wothout clip. Generally speaking, duplex cable(2-core fiber) is equipped with duplex LC connector with clip, if it is matched with simplex connector, this needs special note.
LC UPC to LC UPC 2.0mm Duplex OM5 50/125um Multimode LSZH Fiber Optic Patch Cable

LC UPC to LC UPC 2.0mm Duplex OM5 50/125um Multimode LSZH Fiber Optic Patch CableDuplex LC Connector type

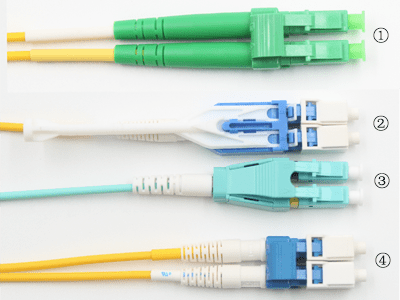

The LC connectors are available in a variety of styles as the picture show:

①This is the most commonly used and the largest number of connectors.
②The LC-HD(High Density), is a totally unique desigh which can increase panel density to its highest possible.
③One 2.0mm cable with two core fiber inside and short BOOT, two connectors can change polarity with each other.
④Uniboot LC connector, the LC is a small form factor (SFF) connector and is ideal for high density applications.

How to choose fiber? What is the difference about Several type multimode fiber?

OM4 and OM3 fiber are Gigabit fiber, various performance indexes is better than OM1 and OM2.

Fiber Type Core/Cladding (um) Light Source Bandwidth @850nm OFL (MHZ·KM) Bandwidth @850nm EMB (MHZ·KM) 10Gpbs Ethernet 10G BASE SR/LR 40Gpbs Ethernet 40G 100Gpbs Ethernet 100G BASE SR10/IR4
OM1 62.5/125 LED 200 Nonsupport 33M(SR) Nonsupport Nonsupport
OM2 50/125 LED 500 Nonsupport 82M(SR) Nonsupport Nonsupport
OM3/150 50/125 VSCEL or LED 700 950 150M(SR) 50M(SR4) 50M(SR10)
OM3/300 50/125 VSCEL or LED 1500 2000 300M(SR) 100M(SR4) 100M(SR10)
OM4 50/125 VSCEL or LED 3500 4700 500M(SR) 150M(SR4) 150M(SR10)
OM5 50/125 VSCEL or LED Operating in the range of 850-950nm, support SWDM system, @850nm OFL 3500MHZ·KM, @850nm EMB 4700MHZ·KM, @953nm OFL 1850MHZ·KM, @953nm EMB 2470MHZ·KM,@1300nm OFL 500MHZ·KM.

OFL= Over Filled Launch;  EMB=Effective Modal Bandwidth
