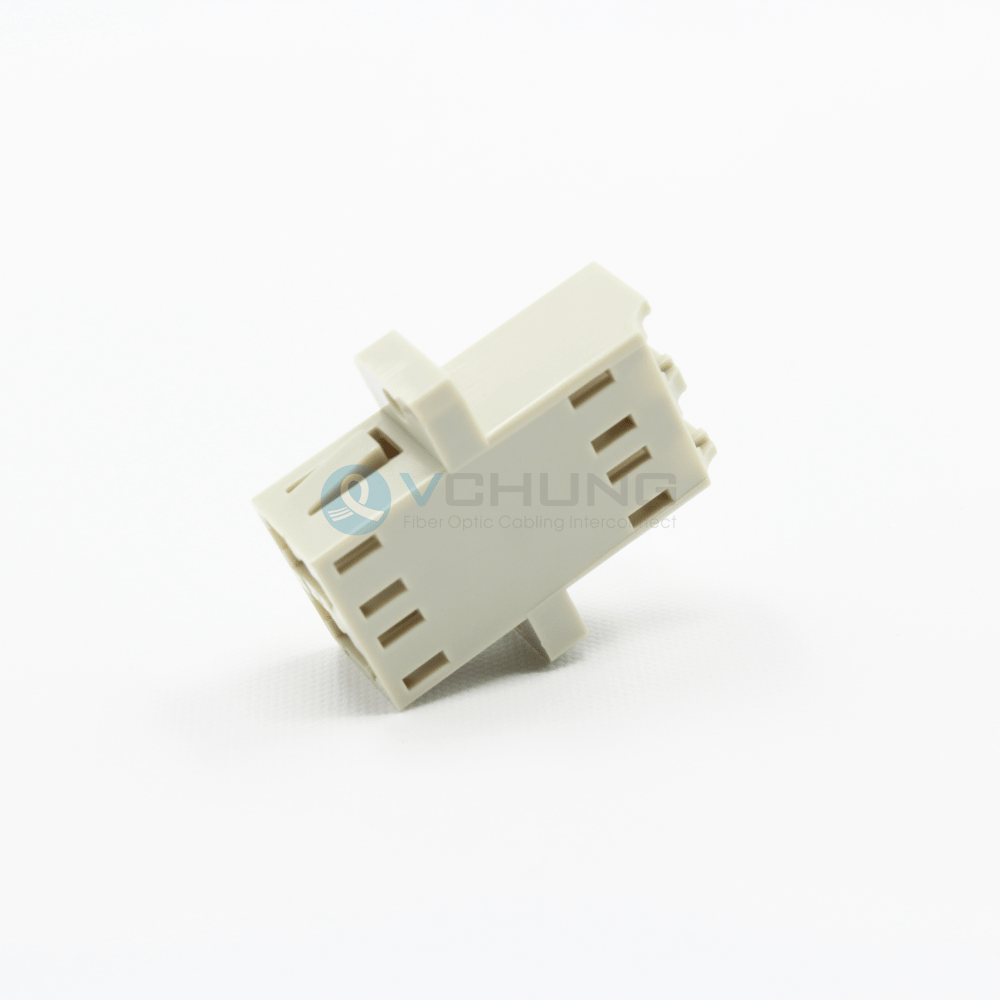

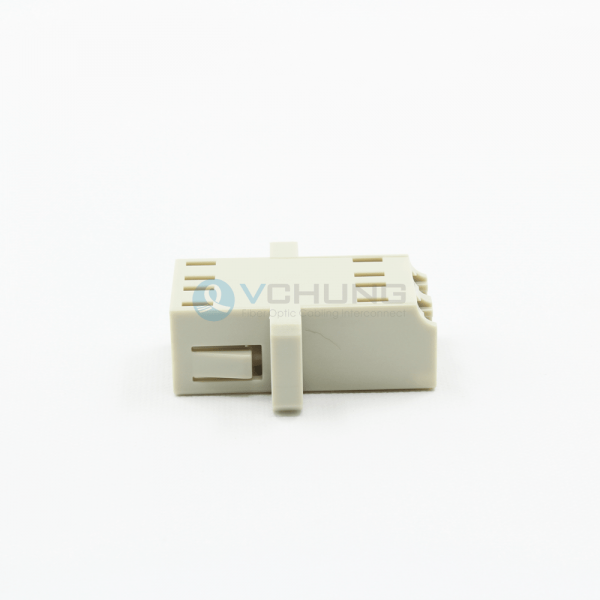

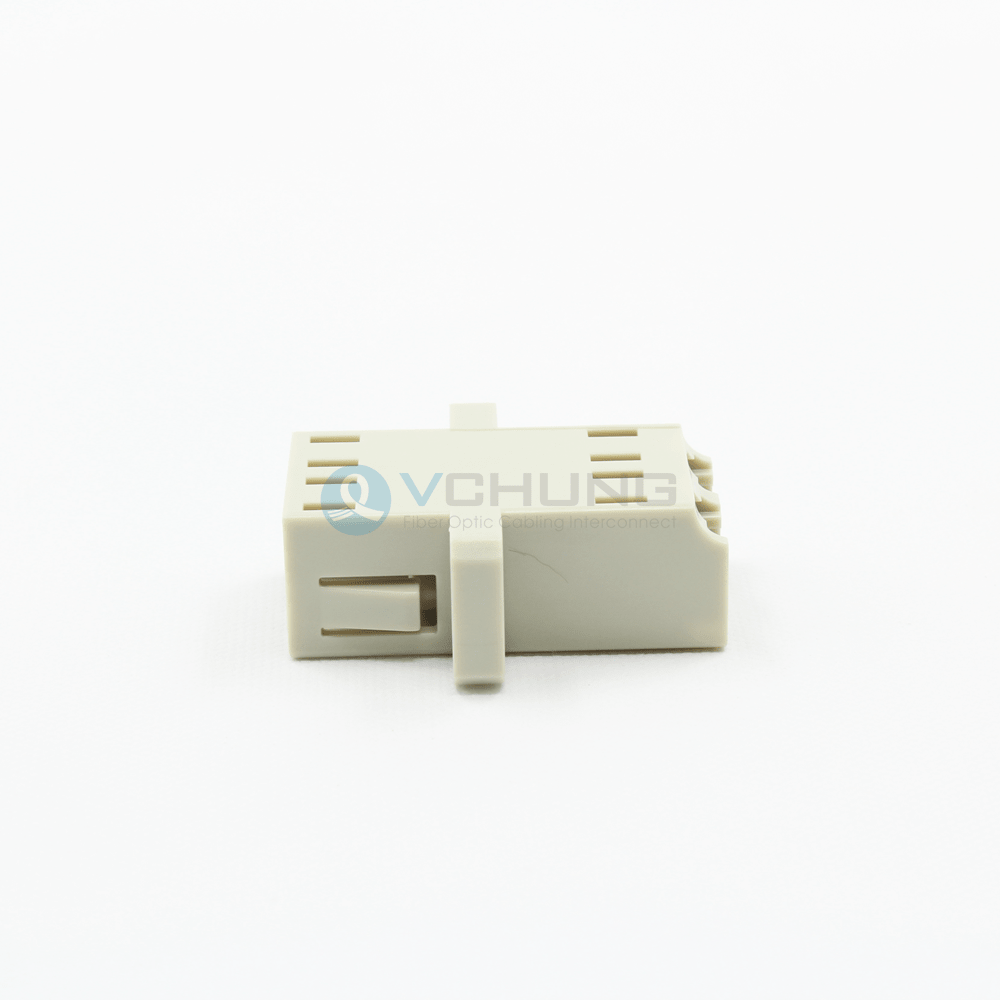

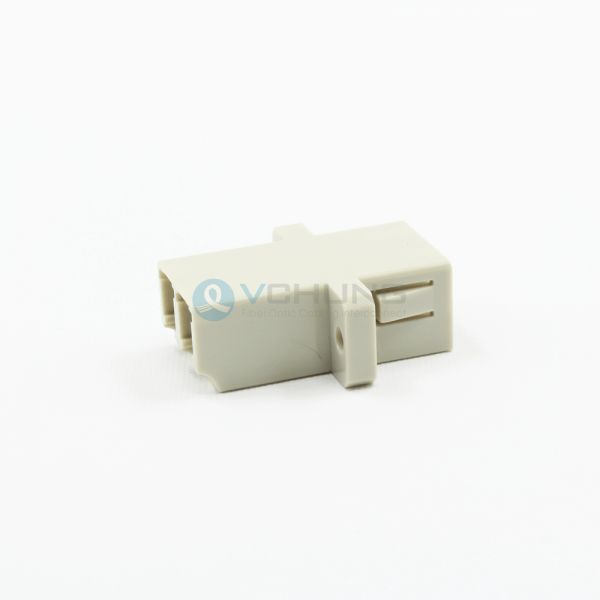

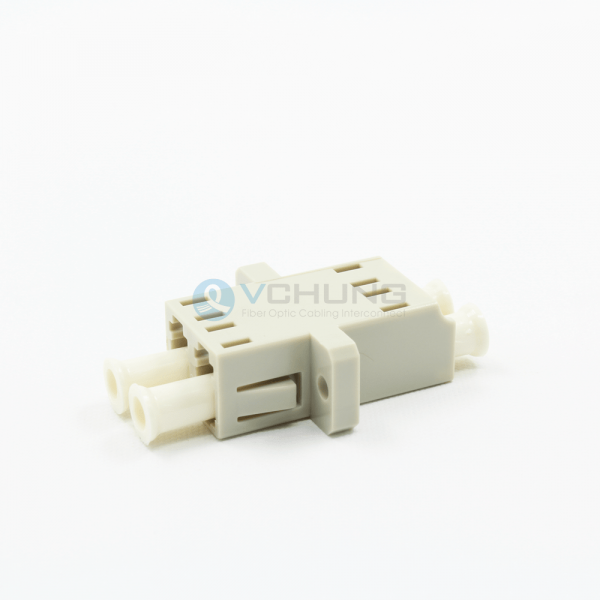

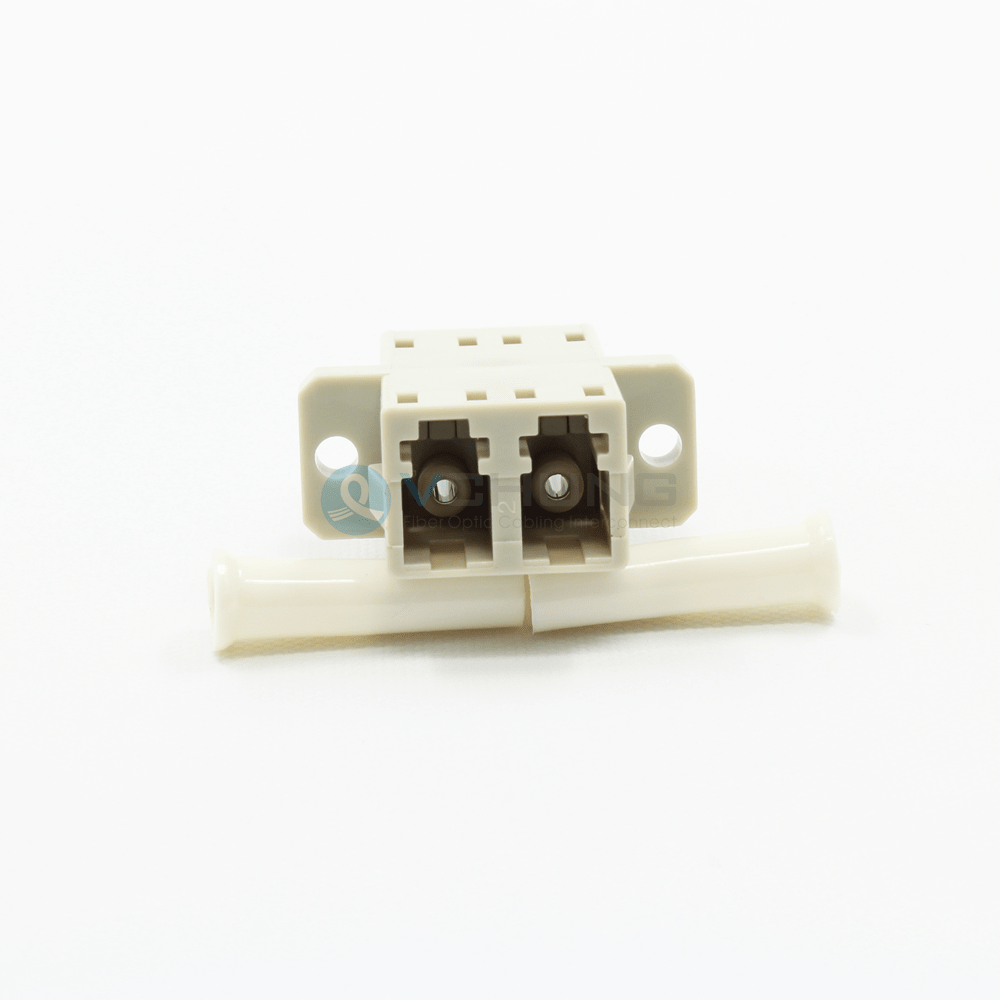

LC/UPC Multimode Beige Color Duplex Adapter With Flange(One-piece Type)

Quick Details
Cores number: Duplex Male/Female: Female to Female
Sleeve Material: Ceramic Flange: with flange
Body Material: Plastic Insertion Loss: 0.20dB max

Model Number: #41205 Category:

Brief Introduction

LC fiber optical adapter also called LC fiber optical coupler, which is a device for detachable connection between optical fiber connector and optical fiber connector. There are many styles, mainly simplex adapter, duplex adapter and 4-core adapter. Our company’s LC adapter appearance must be smooth and clean. It has no oil, burrs, scars and crack. The color of adapter must be bright in good consistency,all parts of adapter can assembly well without difficulty, it should be easy and comfortable to plug in and pull out connector from adapters, the clip should be powerful..


1.Modes:Single mode or Multimode.
2.Sleeve in high precision.
3.Low insertion loss.
4.Good repeatability.
5.Good interchangeability.
6.Easy installation.
7.Good temperature stability.


1.Optical fiber communication system.
2.Cable television network.
3.Optical fiber access network.
4.Video transmissions.
5.Test equipment.


Project Values
Reference standard YD/T 1272.1-2003
Insertion loss ≤0.2dB




IL change absolute value

low temperature Temperature: -40℃, Duration: 168 h ≤0.2dB
high temperature Temperature: 85℃, Duration: 168 h, Temperature change rate: 1℃/min ≤0.2dB
Hot and humid Temperature: 40℃, Humidity: 90%~95%, Duration: 168h, Temperature change rate: 1℃/min ≤0.2dB
Temperature cycle Temperature: -40℃ to + 85℃, Duration: 168h, Cycle times:21, Temperature change rate: 1℃/min ≤0.2dB
Repeatability Insertion pull times:10 ≤0.2dB
Mechanism durability Insertion times: 500 cycles ≤0.2dB
Tensile strength Of coupling mechanism 68.6N/10 Minute ≤0.2dB
Pull-out force ≤19.6.N
Flame resistance UL94-V0
Work temperature -25℃~+75℃
Storage temperature -40℃~+85℃

There are many types of LC adapters. The size must be determined before purchase. The colors are green, blue, beige, purple, and turquoise. The core can be Simple, Duplex, 4-cores.

LC/UPC Multimode Beige Color Duplex Adapter With Flange(One-piece Type)How to know the difference between LC Adapter One-piece and Welding?

①One-piece Type: This means that the adapter body is one piece and does not need to be welded. There is no welding line in the middle of the adapter, which is a good appearance difference.
②Welding Type: Also called split adapter in China. The body of the adapter is divided into two halves, and it needs the welding process of the welding equipment to form a complete adapter.

Fiber Optical Adapters Packing

Usually, we use transparent plastic boxes packaging, which can protect the adapter very well, and very neat. As shown in the picture.
LC/UPC Multimode Beige Color Duplex Adapter With Flange(One-piece Type)

LC/UPC Multimode Beige Color Duplex Adapter With Flange(One-piece Type)Our Quality Control

We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.

Learn More...


LC adapter Datasheet

LC adapter Datasheet Download

Products drawing as follow:

LC/UPC Multimode Beige Color Duplex Adapter With Flange(One-piece Type)

This drawing is for reference only. If you need more information and need to modify the drawing, please Email
