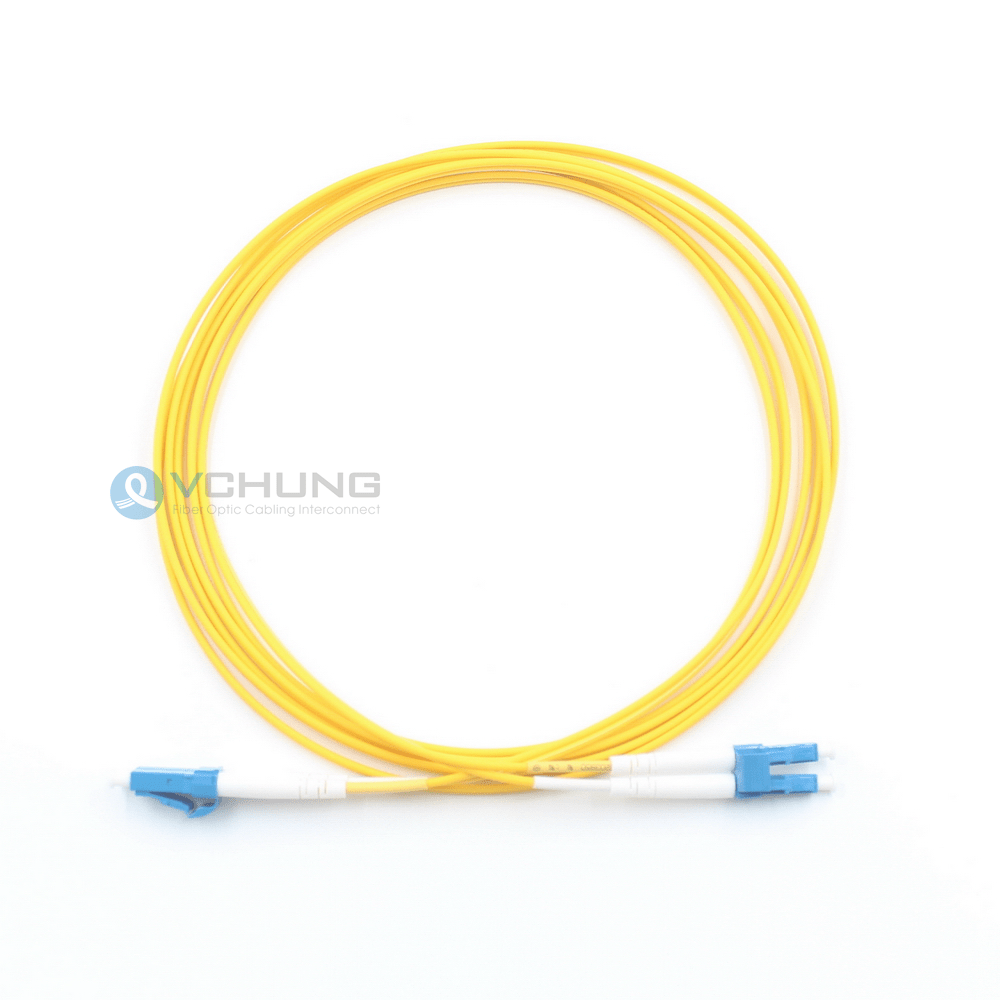

LC/UPC to LC/UPC Single-Mode Duplex LSZH Yellow Jacket 2.0mm Connnctor Patch-cord

Quick Details
Cores number: Duplex Connector Type: LC
Fiber Type: Single-mode Cable Type: OD.=2.0mm duplex
Jacket Material: LSZH Insertion Loss: 0.30dB max

Model Number: #22102 Category:

Brief Introduction

There are many types of simplex connector. The most widely used types are LC connector, SC connectors, FC connectors, and ST connectors. Because of the LC connector uses the ceramic ferrule and which outer diameter only ∮1.25 mm, which is SC connector, FC connector and ST connector half of the outer diameter, so the LC size is only half of the other connectors, because the LC is more smaller, which makes it more density in the 10G/40G fiber cabling system, LC is the first choice for simplex connectors.

This is the most common LC duplex connector; the duplex cable is 3.0mm and 2.0mm. The LC connector color is green and is generally LC/APC type. APC type has better Return Loss than UPC type. For 40G/10G SFP, SFP+ optical module, one connector receives a signal and the other connector transmits a signal. It should be noted that 40G/10G optical module generally uses LC/UPC type.


  1. Reliable quality.
  2. Simplex or duplex is customized.
  3. Support use in attaching directly to 10G QSFP or QSFP+ module.
  4. 4. Compliance with IEC61754-1 and IEC61754-20 standards.


  1. Optical fiber test system.
  2. Building cabling system
  3. Fiber Access Network
  4. Fiber optic data transmission and FTTX


Connector A LC/APC duplex Connector B LC/APC duplex
Fiber Mode SM 9/125um Test Wavelength 1310/1550nm
Polish Type APC to APC Minimum Bend Radius 16mm G.652D fiber
Insertion Loss ≤0.30dB(0.20dB Typ.) Return Loss ≥55dB
Attenuation at 1310nm ≤0.35dB/KM Attenuation at 1550nm ≤0.22dB/KM
Cable Jacket LSZH Cable Jacket O.D 2.0mm duplex
Installation Tensile Load 120N Long-Term Tensile Load 50N
Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +85℃

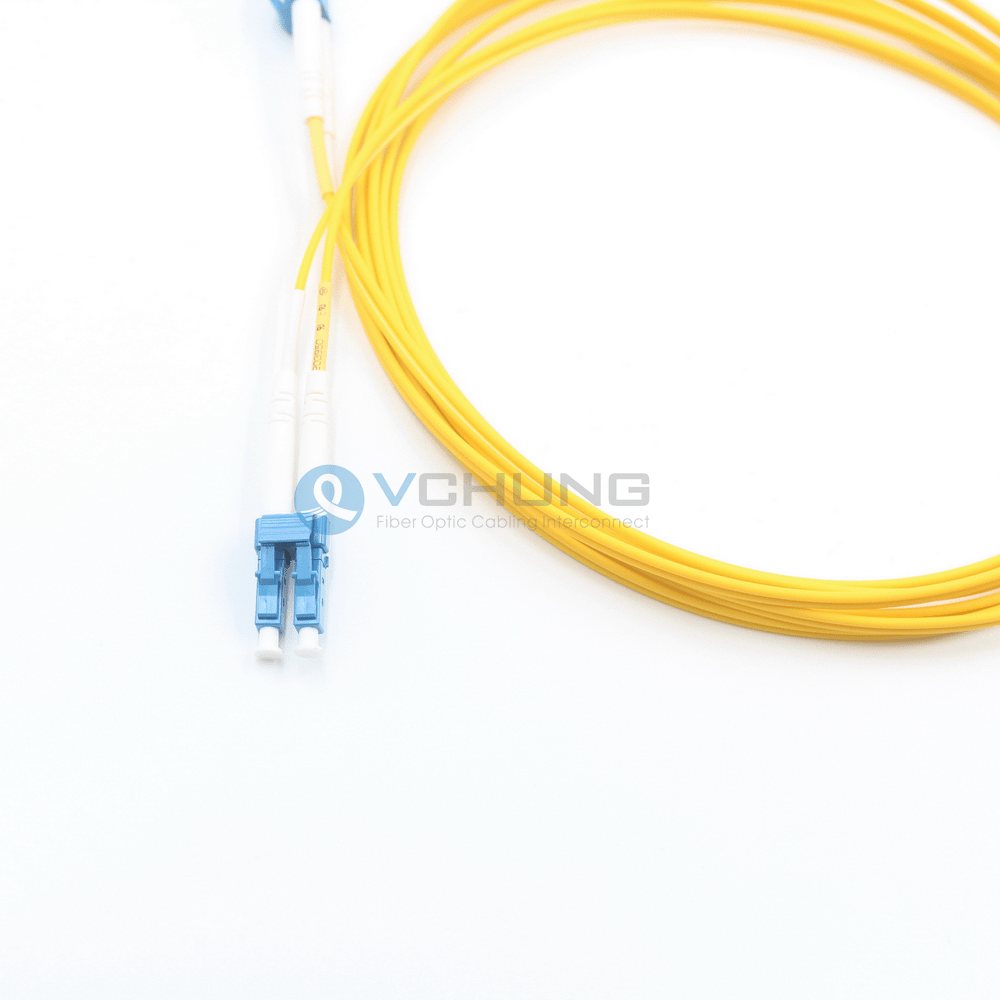

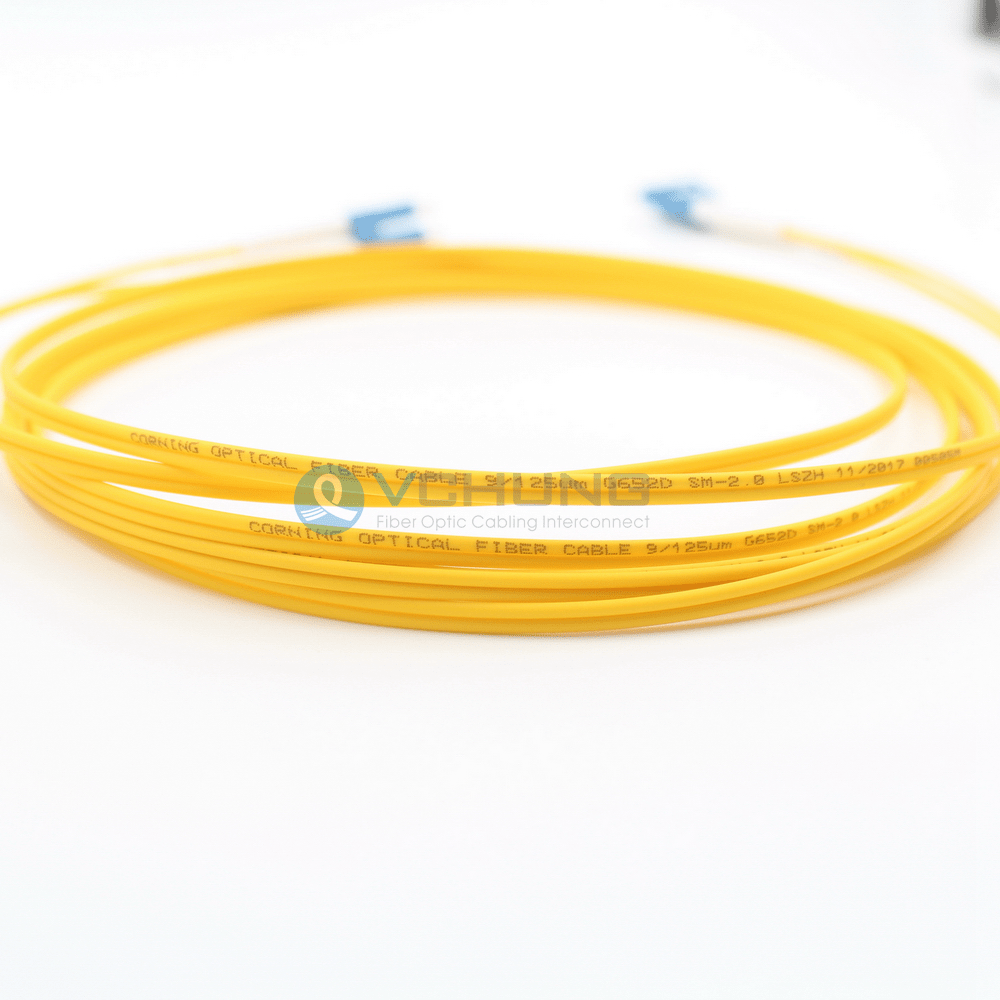

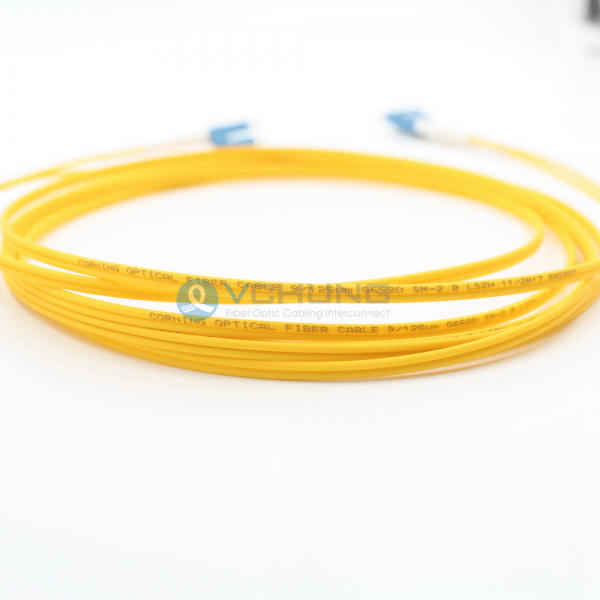

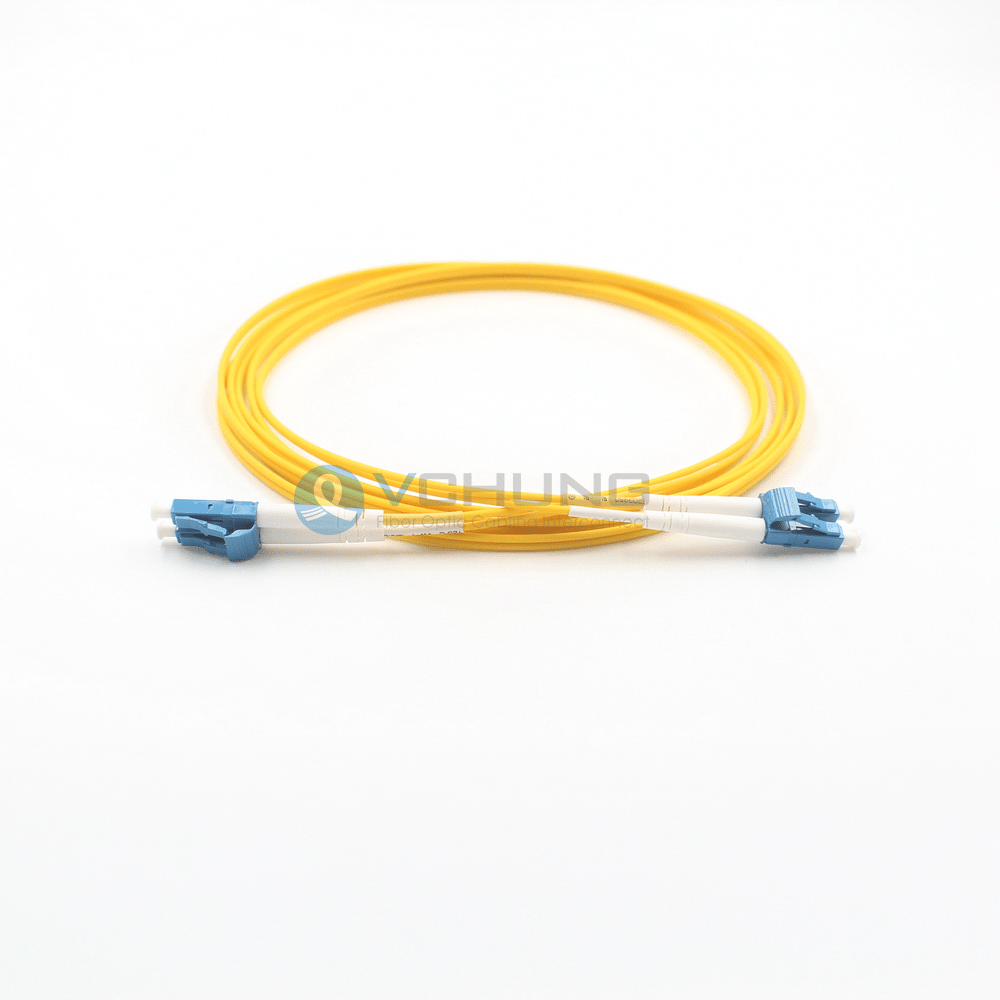

Detailed Images

Compliant with EIA / TIA 604-33 and high-speed wiring network.

LC/UPC to LC/UPC Single-Mode Duplex LSZH Yellow Jacket 2.0mm Connnctor Patch-cord

For duplex patch-cord, the connectors with clip or without clip?

Before confirm the order, it's necessary to confirm the connector with clip or wothout clip. Generally speaking, duplex cable(2-core fiber) is equipped with duplex LC connector with clip, if it is matched with simplex connector, this needs special note.
LC/UPC to LC/UPC Single-Mode Duplex LSZH Yellow Jacket 2.0mm Connnctor Patch-cord

LC/UPC to LC/UPC Single-Mode Duplex LSZH Yellow Jacket 2.0mm Connnctor Patch-cordDuplex LC Connector type
The LC connectors are available in a variety of styles as the picture show:

①This is the most commonly used and the largest number of connectors.
②The LC-HD(High Density), is a totally unique desigh which can increase panel density to its highest possible.
③One 2.0mm cable with two core fiber inside and short BOOT, two connectors can change polarity with each other.
④Uniboot LC connector, the LC is a small form factor (SFF) connector and is ideal for high density applications.

How to choose fiber? What is the difference about Several types single-mode fiber?

Fiber Type Core/Cladding (um) Light Source Static bending radius(mm) Attenuation@1310nm(dB) Attenuation@1550nm(dB) Compatibility with G.652D
G.652D 9/125 Laser 16 0.35 0.22
G.657A1 9/125 Laser 10 0.35 0.22 Fully compatible
G.657A2 9/125 Laser 7.5 0.35 0.22 Fully compatible
G.657B2 9/125 Laser 7.5 0.35 0.22 Nonsupport
G.657B3 9/125 Laser 5.0 0.35 0.22 Nonsupport



NOTE: The following images are for reference only in their packaging style. If the patchord cable is long and big, which will be packing with plastic wrap.

 LC/UPC to LC/UPC Single-Mode Duplex LSZH Yellow Jacket 2.0mm Connnctor Patch-cord

LC/UPC to LC/UPC Single-Mode Duplex LSZH Yellow Jacket 2.0mm Connnctor Patch-cordOur Quality Control
