Brief Introduction

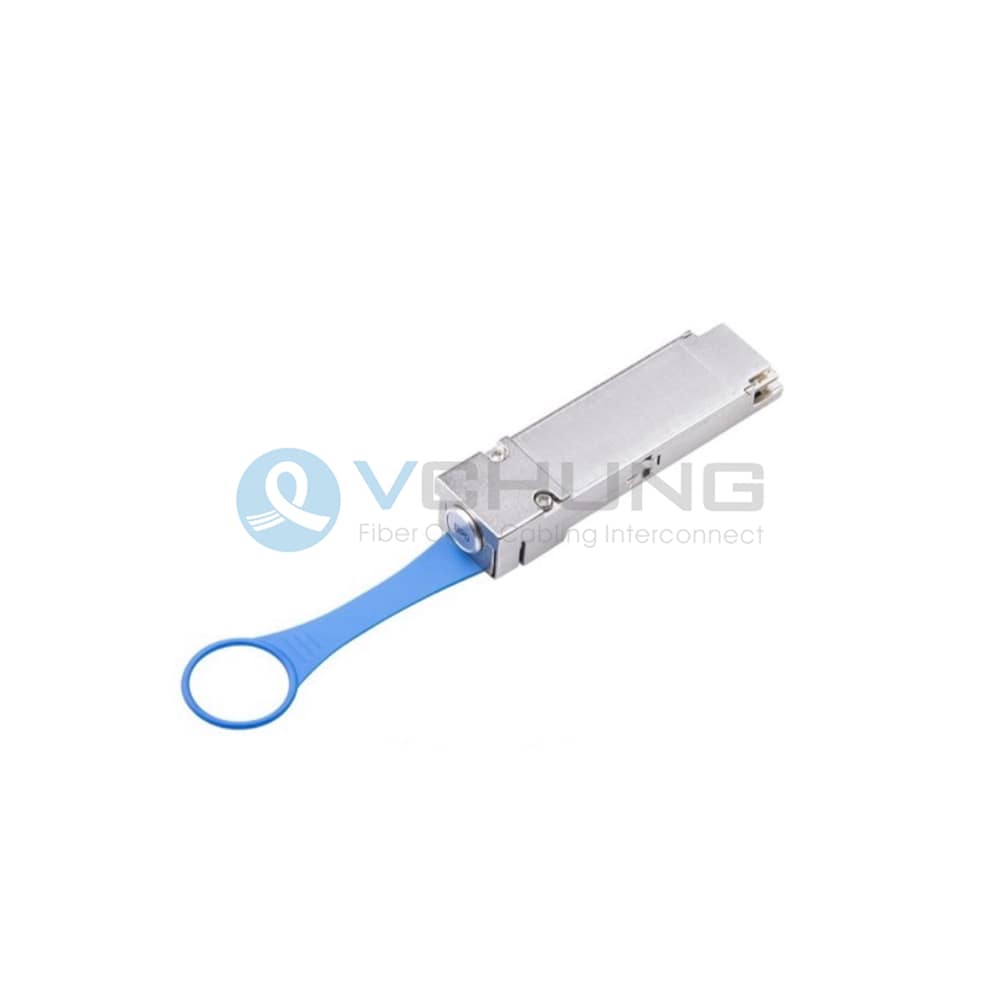

The Vchung QSFP28 Electrical Passive Loopback has Excellent signal integrity, It is used for Economical and flexible 100Gbps QSFP28 port testingBoard level system testing and Power on validation. The loopback module is package in a standard MSA housing compatible with all QSFP+/QSFP28 ports. Transmit data from the host is electrically routed, (internal to the loopback module), to the receive data outputs and back to the host. It provides an economical way to exercise QSFP/QSFP+ ports during R&D validation, production testing, and field-testing.
Features
- Customizable power consumption
- Custom Memory Maps available
- Supports 100Gb/s total data rate
- Hot-pluggable MSA foot print
- Full SFF-8665 MSA compliant
- Temperature range from -0℃to 70℃
- MSA Compliant EEPROM
Applications
- QSFP port/system testing
- Ethernet IEEE 802.3 (Gigabit, 10 Gigabit, 40 Gigabit, and 100 Gigabit Ethernet)
- SDR, DDR and QDR Infiniband Transmission
- SONET, SDH, GBE, Fiber Channel Support
Specifications
| Part No. | VC-LOOPBACK-100GQSP-0-0 | Form Factor | QSFP28 |
| Data Rate | 100G/ps | Attenuation | 0 dB |
| Power Option | 0 W | Operation Temperature | 0 to 70°C (32 to 158°F) |
| DDM | YES | Voltage | 3.3V |
| Protocols | MSA Compliant | Application | QSFP28 Port Testing, Board Level System Testing |
 | Optical transceivers port(LC) For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals. |
| Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4. |  |
| Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied. |  |
 | Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process. |
 | Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally. |
| Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service. |  |
