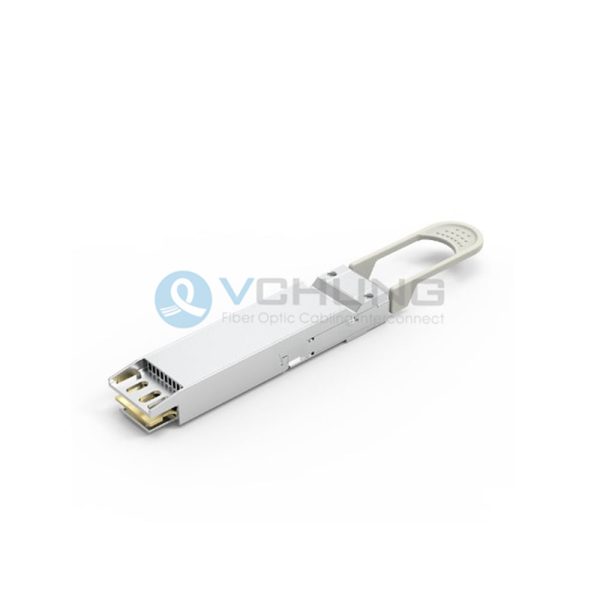

LOOPBACK-800GOSP-xx-30 LOOPBACK-OSFP-0-30 Attenuation (0dB) Power Option (30W) 800G OSFP Electrical Passive Testing Loopback Module

Quick Details
Part number: VC-LOOPBACK-800GOSP-xx-30 Data Rate:800G/ps



Form Factor:OSFP Plug in and out: 500 Times
Power:30W



 Attenuation:Customized

Model Number: #17542 Category:

Brief Introduction

The Vchung  OSFP loopback module is designed and engineered to accommodate customers high usage 2000 cycles at 0°C to 85°C, the loopback module series are the most reliable products in the market to enable the quickest customers systems production and deployment. Software defined multiple power consumption may emulate the optical module power, and the embedded insertion loss characteristics emulates the real-world cabling for 100G/400G/800G Ethernet/Infiniband/FC. The built-in surge current mitigation technology mitigates the DUT risks from being damaged. The broad operating temperature range accommodates the enterprise, datacom and telecom applications. The loopback module may be used for ports testing, field deployment testing and equipment troubleshooting.

Features

  1. OSFP Comply to OSFP Type2 Flat Top style
  2. Industry’s highest rated mating cycles for 2000 and above
  3. Built-in surge current mitigation technology
  4. Adjustable total power consumption up to 30W distributed to the 4 regions, each region is individually
  5. Operating temperature: 0℃ to 85℃
  6. +3.3V power supply
  7. Supports 8*10G/25G/56G PAM4/112G PAM4 data rates
  8. 2-wire interface for integrated Digital Diagnostic Monitoring
  9. Signal integrity performance meets IEEE 802.3ba, 802.3bj, 802.3cd , 802.3ck standards respectively
  10. Enhanced heat dissipation technology for high power testing
  11. Custom EEPROM available

Applications

  1. OSFP port/system testing
  2. Ethernet IEEE 802.3 (Gigabit, 10~800 Gigabit Ethernet)
  3. SONET, SDH, GBE, Fiber Channel Support
Specifications



Part No. VC-LOOPBACK-800GOSP-xx-30 Form Factor OSFP
Data Rate 800G/ps Attenuation Customized
Power Option 30 W Operation Temperature 0 to 70°C (32 to 158°F)
DDM YES Voltage 3.3V
Protocols MSA Compliant Application OSFP-DD Port Testing, Board Level System Testing
