MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable

Quick Details
Cores number: 12 Male/Female: Female to Female
Fiber Type: OM2 50/125um Cable Type: OD.=3.0mm trunk cable
Jacket Material: LSZH Insertion Loss: 0.70dB max

Model Number: #20003 Category:

Brief Introduction

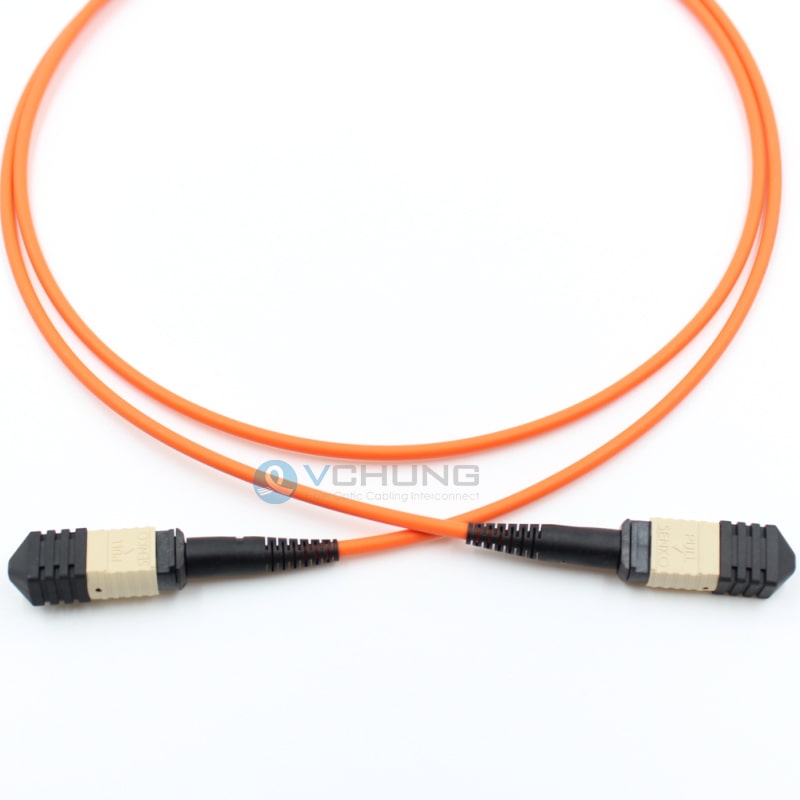

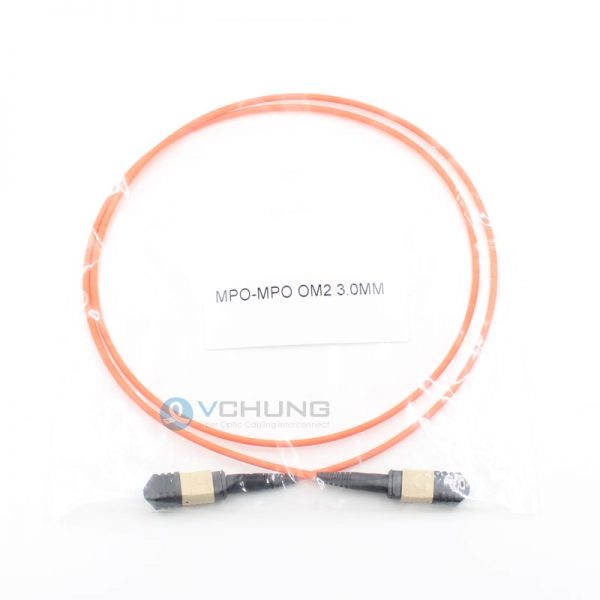

OM2 50/125um multimode fiber cable, MPO to MPO 12 fibers patch cord, trunk pre-terminated cable, LSZH Orange color and the connector is beige color, stardard insertion loss(I/L<0.70dB), designed for 10G BASE SR/LR optics direct connection and data center. Features

1.High quality ferrule and accurate alignment by PIN and PIN hole.
2.MPO comes in many types and design blueprint can be provided quickly.
3.Standard Loss(IL≤0.7dB) and Low Loss(IL≤0.35dB) insertion loss are available.
4.The Connector end-face can meet the interference index.
5.Connector compliant with IEC 61754-7(Type MPO connector family).

Applications

1.High density cabling system.
2.Cabling in communication base station and distribution case.
3.Jumper connection. 40G and 100G system, QSFP module.
4.Optical fiber communication system,CATV,LANs and WANs

Product Video

Specifications

Connector A MPO Female Connector B MPO Female
Fiber Mode MM50/125um OM2 Test Wavelength 850/1300nm
Polish Type PC to PC Minimum Bend Radius 10mm
Insertion Loss ≤0.70dB(0.40dB Typ.) Return Loss ≥25dB
Attenuation at 850nm ≤2.3dB/KM Attenuation at 1300nm ≤0.6dB/KM
Cable Jacket LSZH Cable Jacket O.D 3.0mm
Installation Tensile Load 120N Long-Term Tensile Load 50N
Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +85℃

Detailed Images

MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable


MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated CableAbout MPO Connector

The MPO connectors used are in accordance with the standard IEC 61754-7 and IEC 61754-10, using the international well-known brand connectors. Sufficient SGS report and reliability test report.

About MPO Insertion Loss

All MPO fiber patch cord have been 100% double-wavelength tested, ensuring insertion loss of less than 0.70db, typical value is 0.30db, and return loss must be more than 25dB. Also, there is a low loss(IL≤0.35db)connector for customers to choose.
MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable

MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated CableAbout Cable Material

LSZH is one of the most commonly used optic cable in our factory, the higher fire protection grade cable is available, such as OFNP. All cable materials are meet with IEC/CE/UL/Rohs2.0 standards.

Cable Structure Diagram

12core bare fiber, kevlar from DuPont company, LSZH material, Orange color jacket, OD.=3.0mm.
MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable

How to choose fiber? What is the difference about Several type multimode fiber?

OM4 and OM3 fiber are Gigabit fiber, various performance indexes is better than OM1 and OM2.

Fiber Type Core/Cladding (um) Light Source Bandwidth @850nm OFL (MHZ·KM) Bandwidth @850nm EMB (MHZ·KM) 10Gpbs Ethernet 10G BASE SR/LR 40Gpbs Ethernet 40G 100Gpbs Ethernet 100G BASE SR10/IR4
OM1 62.5/125 LED 200 Nonsupport 33M(SR) Nonsupport Nonsupport
OM2 50/125 LED 500 Nonsupport 82M(SR) Nonsupport Nonsupport
OM3/150 50/125 VSCEL or LED 700 950 150M(SR) 50M(SR4) 50M(SR10)
OM3/300 50/125 VSCEL or LED 1500 2000 300M(SR) 100M(SR4) 100M(SR10)
OM4 50/125 VSCEL or LED 3500 4700 500M(SR) 150M(SR4) 150M(SR10)

OFL= Over Filled Launch;  EMB=Effective Modal Bandwidth


Before produce, it is necessary to confirm whether MPO connector is male or female.

MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable

Female, without guide PINS                                                      Male, with guide PINS


How to confirm the MPO connector what you need is male or female?

Type1: Connection between MPO and MPO
Connection between two MPO connectors, which must be one MPO connector is Female and another one must be Male.
MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable

MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated CableType2: Connection between MPO and optical module
You know, All optical modules are self-contained with Guide PIN, it means male MPO connector inside, so when connection between MPO cable and optical module, the MPO connector on cable must be the female connector.

How to choose the polarity about MPO to MPO pre-terminated cable?

According to ANSI-TIA-568-C.3-2008 specifications, there are three types about polarity: type-A, type-B and type-C, show as the figure.

MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable

How to choose the ferrule channels about 8 fibers MPO cable patch cord?

The 8 fiber cable is generally produced by 12 channels MT ferrule. So there are four channels of MT ferrule are unused, the location of the fiber and MT ferrule channels must be confirmed. Generally speaking, Type 2 is used for QSFP-40G-SR4 optic modules.

MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable

How to realize high density MPO cabling system?

We produce high quality MPO cable which is widely used in high density cabling systems. In addition to MPO Cable, we also provide MPO Cassette and 19′ rack in line with customer needs, for complete the MPO cabling solution.

MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable

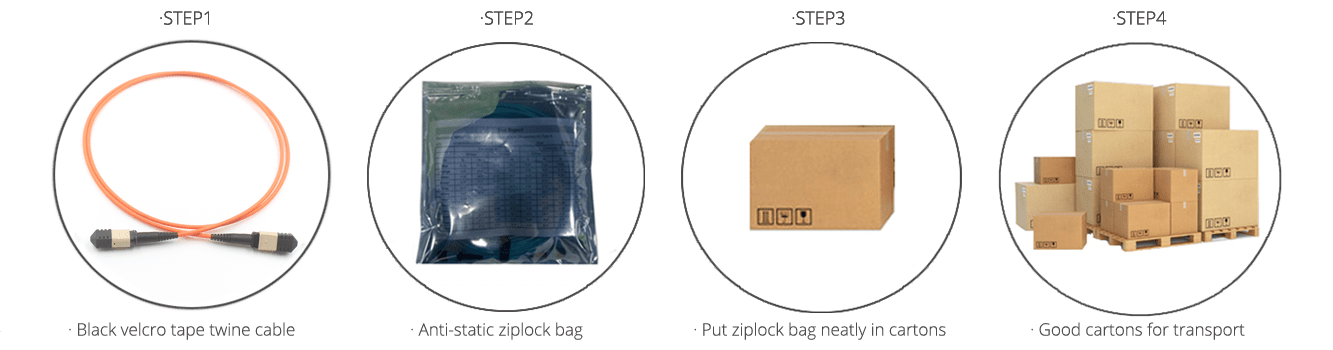

Packing

MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated Cable


MPO 12-Fibers OM2 50/125um Multimode 3.0mm Ttrunk Type-B Pre-Terminated CableOur Quality Control

We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.

Learn More...



MPO-MPO MULTIMODE OM2 DATASHEET

This is MPO Cable OM2 50/125um trunk cable 3.0mm LSZH orange DATASHEET

Click the hyperlink below to open the drawing:



OM3MPO(F)MPO(F)12CA 3.0 TYPE-B



This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
