Brief Introduction

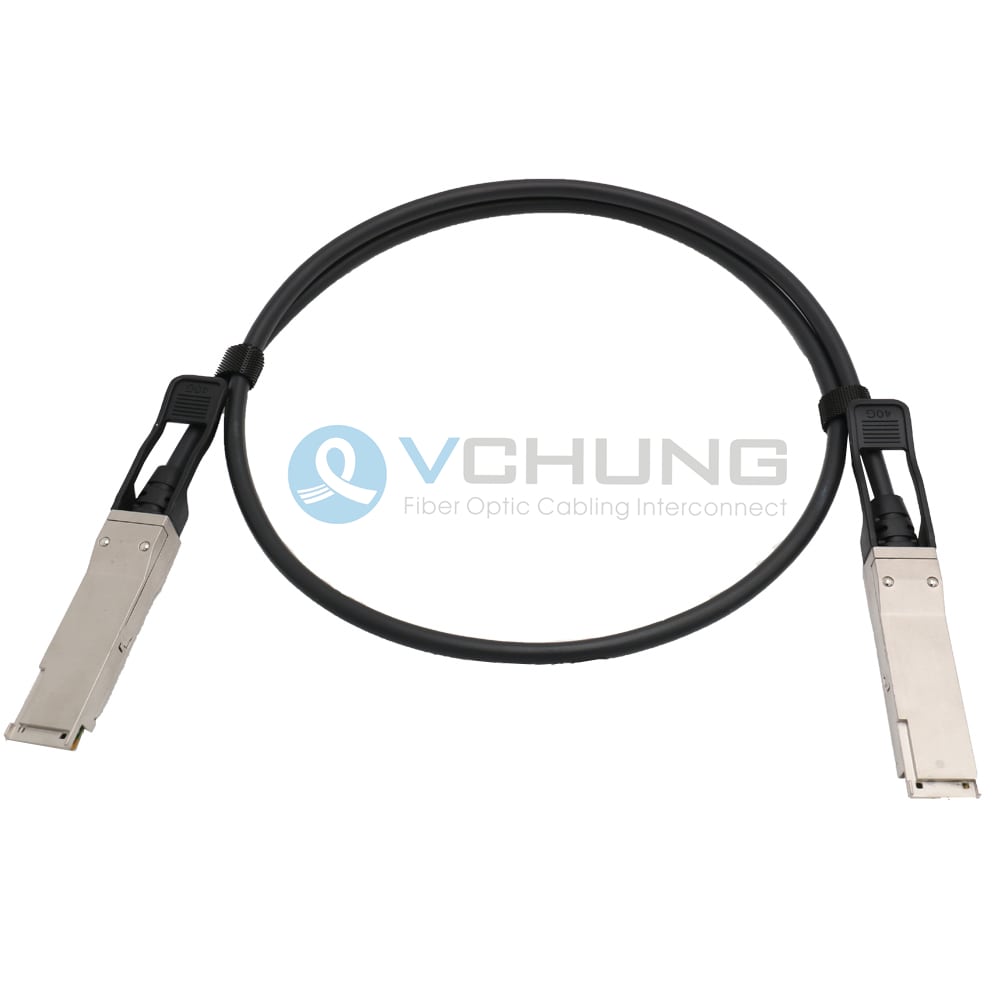

QSFP-100G-CU1M-VC 100G QSFP28 passive cable assembly products, based on 4 x25G or 4 x28G structure, the product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements.QSFP28 cable adopts optimized design to reduce crosstalk and insertion loss, excellent signal integrity, fully conforms to the next generation 100G Ethernet and Infiniband EDR standards.
Features
1.QSFP28 conforms to the Small Form Factor SFF8665
2.4-Channel Full-Duplex Passive Copper Cable Transceiver • Support data rates : 25.78Gb/s (per channel) • Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s) • IEEE 802.3bj 100GEBASE-CR4
3. Copper link x (x=1m, 2m, 3m, 5m) • Power Supply :+3.3V
4. Low crosstalk
5.I2C based two-wire serial interface for EEPROM signature which can be customized
6.Operating Temperature: 0~ 70 °C
7.Compatible to QSFP28 MSA
8.RoHS Compliant
Applications
1. 100 Gigabit Ethernet • Fiber Channel over Ethernet • InfiniBand EDR
2. Data storage and communication industry Switch / router/ HBA
3.Enterprise network SAN
4.Data Center Network
Specifications
| OEM Part Number | QSFP-100G-CU1M -VC | Form Factor | 100G QSFP28 DAC Cable |
| Connector Type | QSFP28 to QSFP28 | Cable Type | Twinax |
| Passive or actively equalized | Passive | Max Data Rate | 100Gb/s |
| Cable length | 0.5M to 5M available | Wire Gauge | 30AWG; 26AWG |
| Power Supply Voltage | 3.3V | Jacket Material | PVC(OFNR) |
| Minimum cable bend radius | 35 mm | Cable impedance | 100 Ω |
| Protocols | 100 Gigabit Ethernet | Operating Temperature | 0℃ to +70℃ |
