QSFP28-2DCxx-80 100G QSFP28 2CH C-Band DWDM Single Lambda CS 80km Optical Transceivers

Quick Details
Part number: VC-QSFP28-2DCxx-80 Connector Type: Duplex CS
Form Factor:QSFP28 Wavelength: DWDM CHxx
Distance:80km (With EDFA and DCM) Fiber Type:SMF

Model Number: #17444 Categories ,

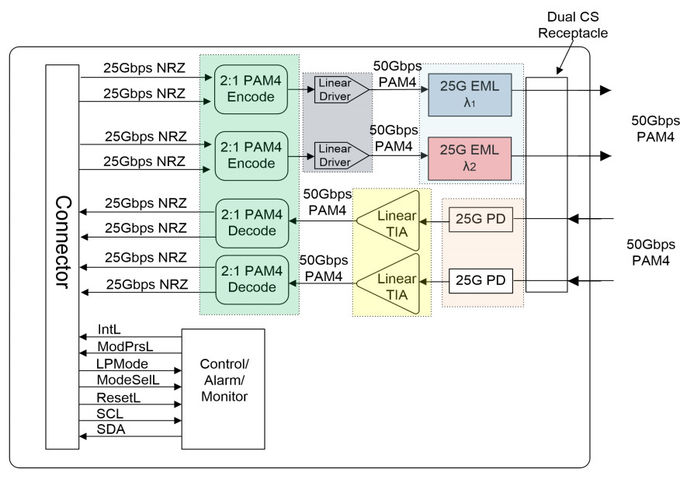

Brief Introduction

The Vchung 100G DWDM QSFP28 two wave transceiver module enables 80km optical transmission over single-mode fiber (SMF) with EDFA & DCM.  It is available in all C-Band wavelengths on the 100GHz DWDM ITU Grid from 1528.77nm to 1565.50nm. The transceiver operates at a data rate of 100Gbps with PAM4 modulation format using duplex CS interfaces. It is compliant with the OIF CEI-28G-VSR, QSFP28 MSA and SFF-8636 Rev 2.10a standards for 100G amplified DWDM networks applications.

Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 0

Features

  1. Hot pluggable QSFP28 MSA form factor
  2. Up to 80km reach for G.652 SMF with transport white box
  3. Single +3.3V power supply
  4. Temperature Range 0 to 70°C
  5. Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
  6. Receiver: 2*27.5Gbaud/s Pin-PD ROSA
  7. 4*25G CAUI4 electrical interface
  8. Integrated SFEC with high coding gain
  9. PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
  10. Dual CS adaptor
  11. Compatible with RoHS

Applications

  1. High bandwidth connectivity for Data Center Interconnection
  2. 100G Ethernet Metro-Access over DWDM
  3. P to P Access Network
Specifications
Part No. VC-QSFP28-2DCxx-80 Form Factor QSFP28
Distance 80km (With EDFA and DCM) Wavelength DWDM CHxx
Operation Temperature 0 to 70°C (32 to 158°F) Connector Duplex CS
Voltage 3.3V Cable Type SMF
DDM Yes Transmitter Type EML
Receiver Type PIN TX Power -1~+4.0dBm
Receiver Sensitivity <-12.5dBm Protocols QSFP28 MSA
Warranty 3 years Data Rate 100G/ps

Wavelength Table

TX1 TX2
Ch. No. Frequency

(THz)

Center Wavelength(nm) Ch. No. Frequency

(THz)

Center Wavelength(nm)
C13 191.30 1567.13 C14 191.40 1566.31
C13+ 191.35 1566.72 C14+ 191.45 1565.90
C15 191.50 1565.50 C16 191.60 1564.68
C15+ 191.55 1565.09 C16+ 191.65 1564.27
C17 191.70 1563.86 C18 191.80 1563.05
C17+ 191.75 1563.45 C18+ 191.85 1562.64
C19 191.90 1562.23 C20 192.00 1561.42
C19+ 191.95 1561.83 C20+ 192.05 1561.01
C21 192.10 1560.61 C22 192.20 1559.79
C21+ 192.15 1560.20 C22+ 192.25 1559.39
C23 192.30 1558.98 C24 192.40 1558.17
C23+ 192.35 1558.58 C24+ 192.45 1557.77
C25 192.50 1557.36 C26 192.60 1556.55
C25+ 192.55 1556.96 C26+ 192.65 1556.15
C27 192.70 1555.75 C28 192.80 1554.94
C27+ 192.75 1555.34 C28+ 192.85 1554.54
C29 192.90 1554.13 C30 193.00 1553.33
C29+ 192.95 1553.73 C30+ 193.05 1552.93
C31 193.10 1552.52 C32 193.20 1551.72
C31+ 193.15 1552.12 C32+ 193.25 1551.32
C33 193.30 1550.92 C34 193.40 1550.12
C33+ 193.35 1550.52 C34+ 193.45 1549.72
C35 193.50 1549.32 C36 193.60 1548.51
C35+ 193.55 1548.91 C36+ 193.65 1548.11
C37 193.70 1547.72 C38 193.80 1546.92
C37+ 193.75 1547.32 C38+ 193.85 1546.52
C39 193.90 1546.12 C40 194.00 1545.32
C39+ 193.95 1545.72 C40+ 194.05 1544.92
C41 194.10 1544.53 C42 194.20 1543.73
C41+ 194.15 1544.13 C42+ 194.25 1543.33
C43 194.30 1542.94 C44 194.40 1542.14
C43+ 194.35 1542.54 C44+ 194.45 1541.75
C45 194.50 1541.35 C46 194.60 1540.56
C45+ 194.55 1540.95 C46+ 194.65 1540.16
C47 194.70 1539.77 C48 194.80 1538.98
C47+ 194.75 1539.37 C48+ 194.85 1538.58
C49 194.90 1538.19 C50 195.00 1537.40
C49+ 194.95 1537.79 C50+ 195.05 1537.00
C51 195.10 1536.61 C52 195.20 1535.82
C51+ 195.15 1536.22 C52+ 195.25 1535.43
C53 195.30 1535.04 C54 195.40 1534.25
C53+ 195.35 1534.64 C54+ 195.45 1533.86
C55 195.50 1533.47 C56 195.60 1532.68
C55+ 195.55 1533.07 C56+ 195.65 1532.29
C57 195.70 1531.90 C58 195.80 1531.12
C57+ 195.75 1531.51 C58+ 195.85 1530.72
C59 195.90 1530.33 C60 196.00 1529.55
C59+ 195.95 1529.94 C60+ 196.05 1529.16

100G QSFP28 DWDM Solutions

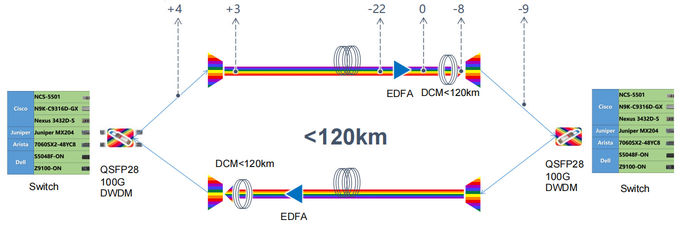

  • Passive DWDM MUX 1X100G QSFP28 DWDM 120KM Solution



Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 1

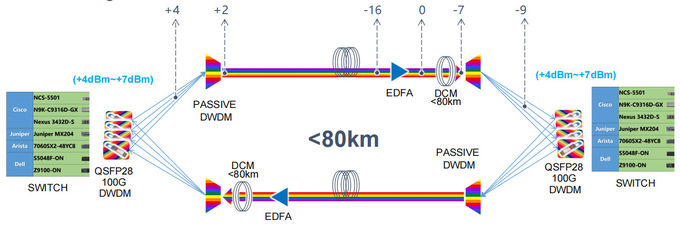

  • Passive DWDM MUX 4X100G QSFP28 DWDM 80KM Solution



Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter 2

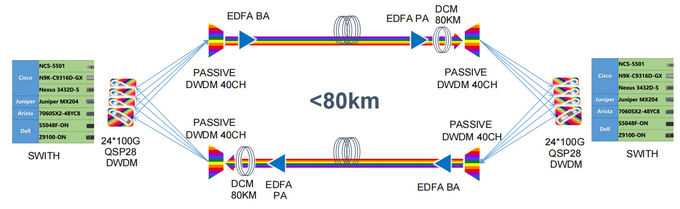

  • Passive DWDM MUX 24X100G QSFP28 DWDM 80KM Solution
