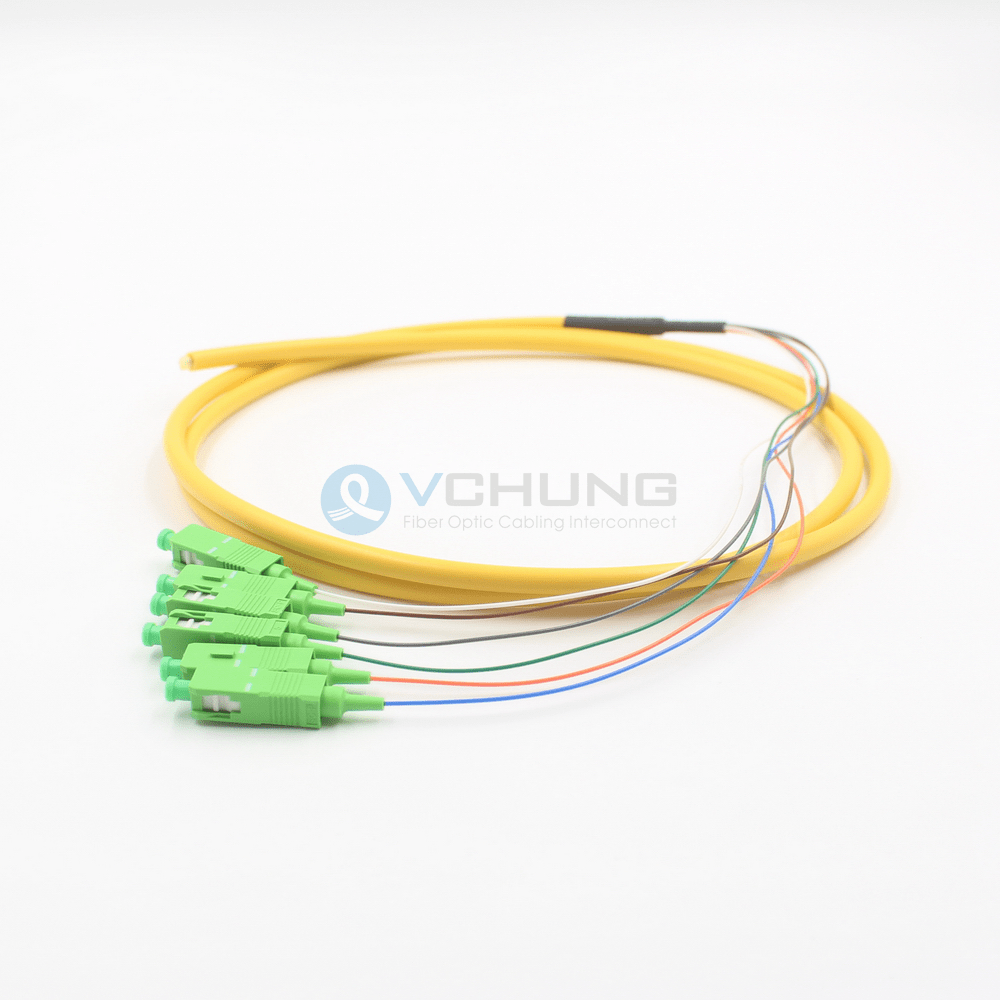

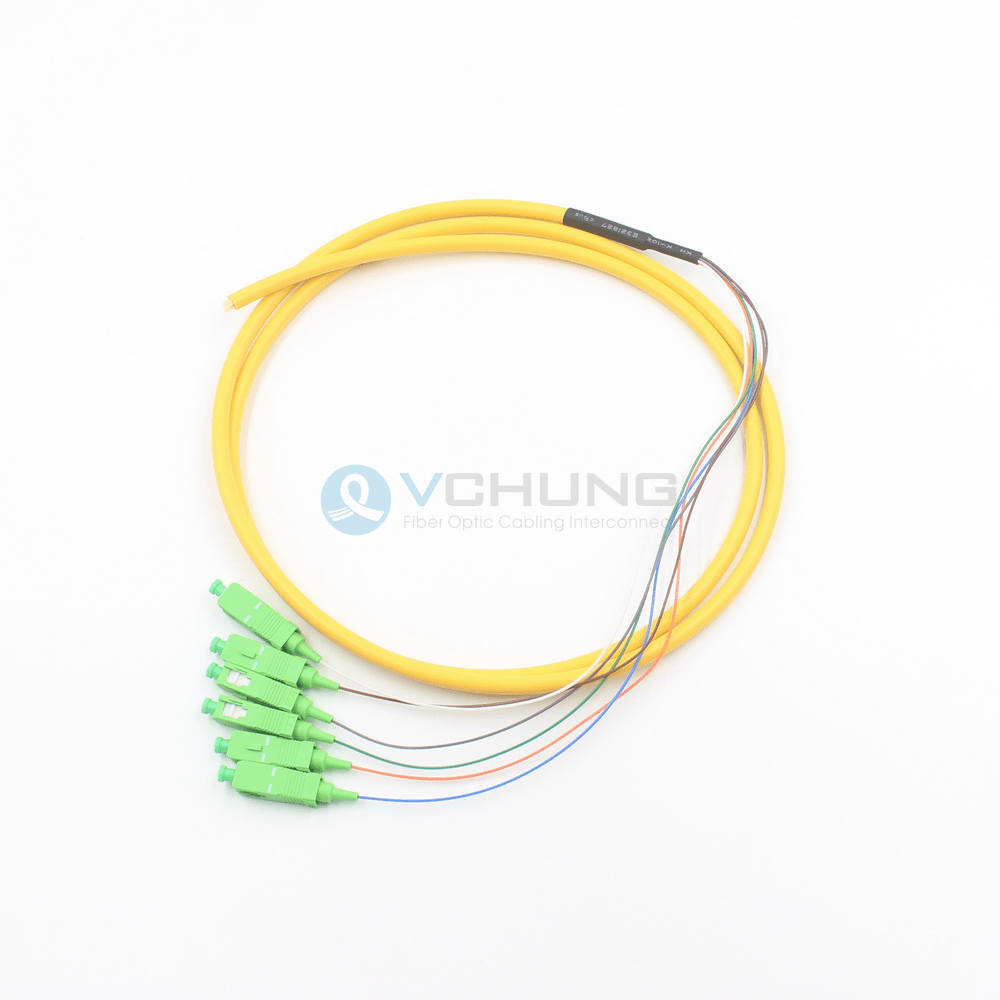

SC APC IL0.30dB 6-Cores Single-Mode SMF 5.0mmTrunk Fiber Optical Pigtail Cable

Quick Details
Cores number: 6 Core Connector Type: SC
Fiber Type: Single-mode Cable Type: OD.=5.0mm duplex
Jacket Material: LSZH Insertion Loss: 0.30dB max

Model Number: #23102 Category:

Brief Introduction

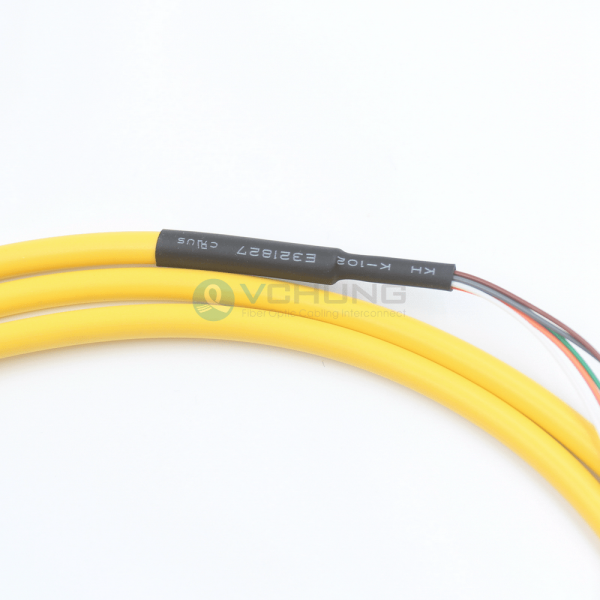

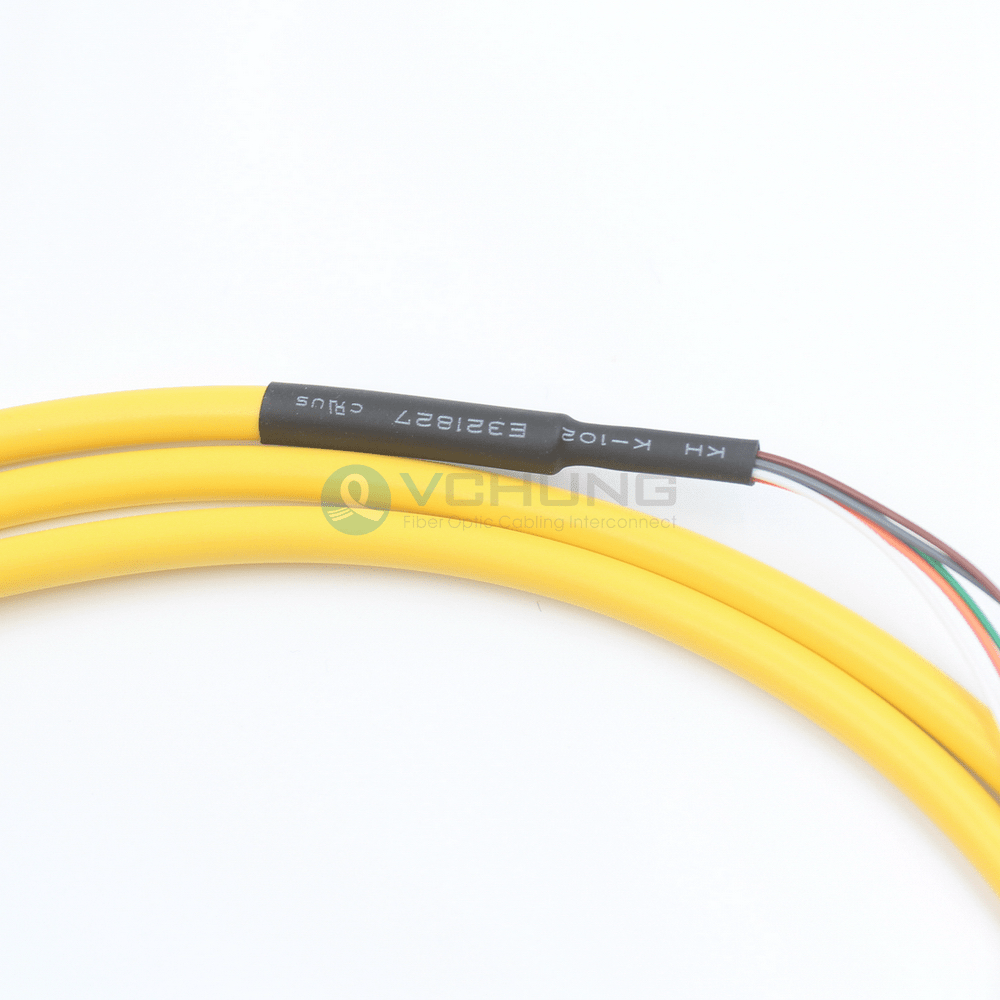

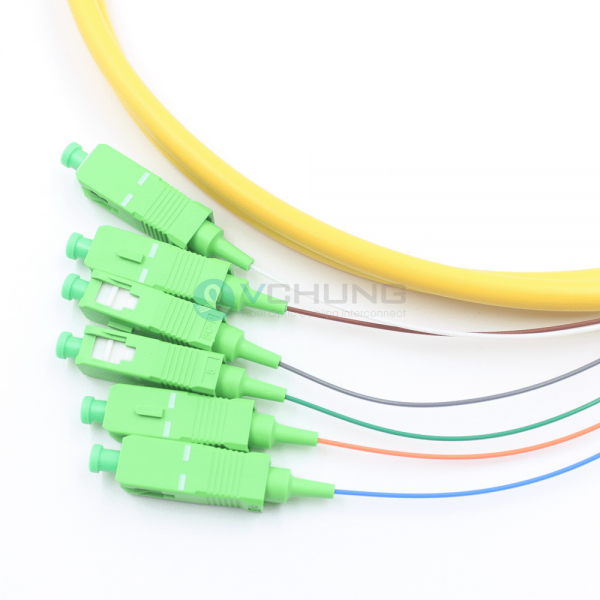

12-core single-mode SC APC OR LC APC simplex connector, the main cable is ∮5.0mm yellow LSZH trunk cable, containing 6-core 0.9mm cable 6 colors: Blue, orange, green, brown, gray, and white. More fiber cores can be selected by the customer.

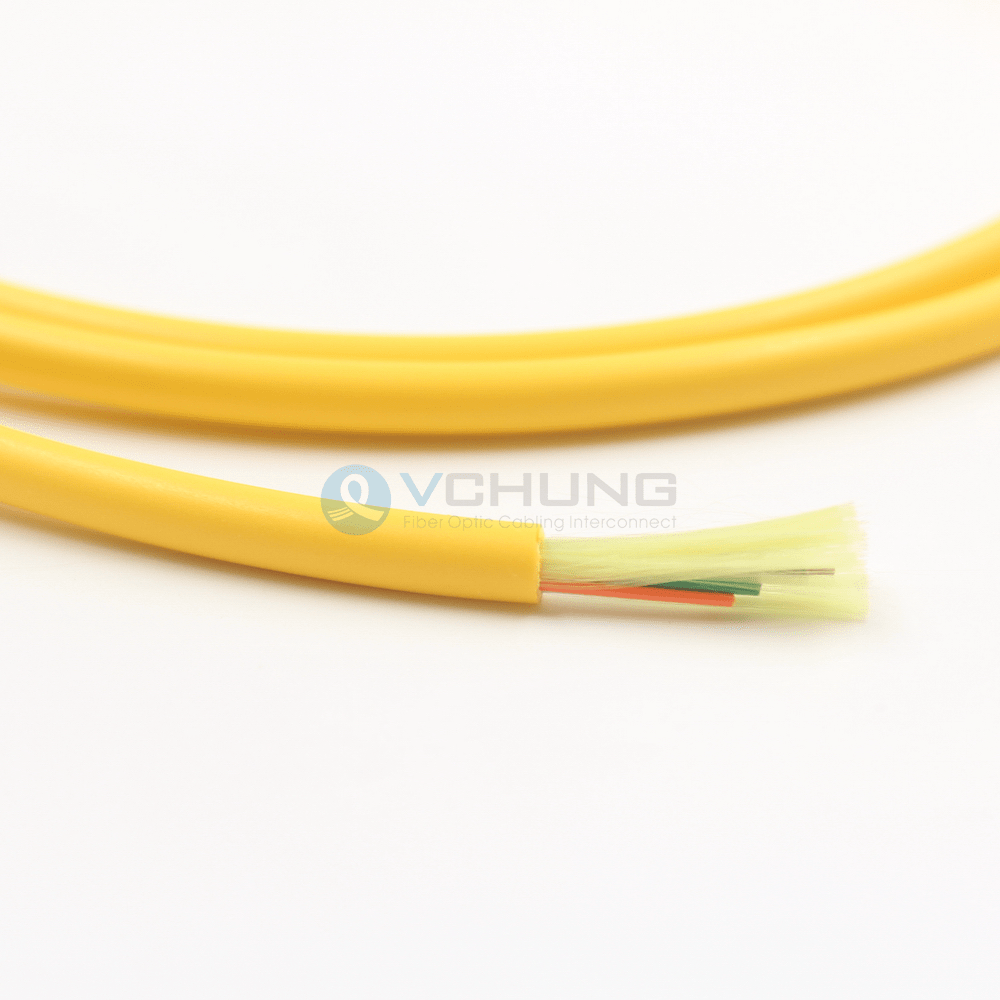

  1. 5mm trunk cable
  2. Contains 0.9mm fiber optic cable
  3. 0.9mm connector


  1. Communication base station and cabling system
  2. Connection between devices
  3. Optical fiber communication system,
  4. CATV, LAN and WAN


Connector A SC/APC duplex Connector B SC/APC duplex
Fiber Mode SM 9/125um Test Wavelength 1310/1550nm
Polish Type APC to APC Minimum Bend Radius 16mm G.652D fiber
Insertion Loss ≤0.30dB(0.20dB Typ.) Return Loss ≥55dB
Attenuation at 1310nm ≤0.35dB/KM Attenuation at 1550nm ≤0.22dB/KM
Cable Jacket LSZH Cable Jacket O.D 2.0mm duplex
Installation Tensile Load 120N Long-Term Tensile Load 50N
Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +85℃

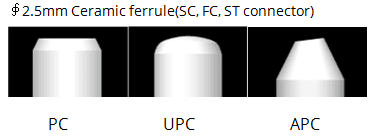

How to choose the ferrule end-face UPC, APC, PC?

Generally speaking, the color of the housing is blue, which means it is the UPC end-face,  the color of the housing is green, which means it is the APC end-face. The difference between UPC and APC is shown as the figure

SC APC IL0.30dB 6-Cores Single-Mode SMF 5.0mmTrunk Fiber Optical Pigtail Cable

How to choose fiber? What is the difference about Several types single-mode fiber?

Fiber Type Core/Cladding (um) Light Source Static bending radius(mm) Attenuation@1310nm(dB) Attenuation@1550nm(dB) Compatibility with G.652D
G.652D 9/125 Laser 16 0.35 0.22
G.657A1 9/125 Laser 10 0.35 0.22 Fully compatible
G.657A2 9/125 Laser 7.5 0.35 0.22 Fully compatible
G.657B2 9/125 Laser 7.5 0.35 0.22 Nonsupport
G.657B3 9/125 Laser 5.0 0.35 0.22 Nonsupport

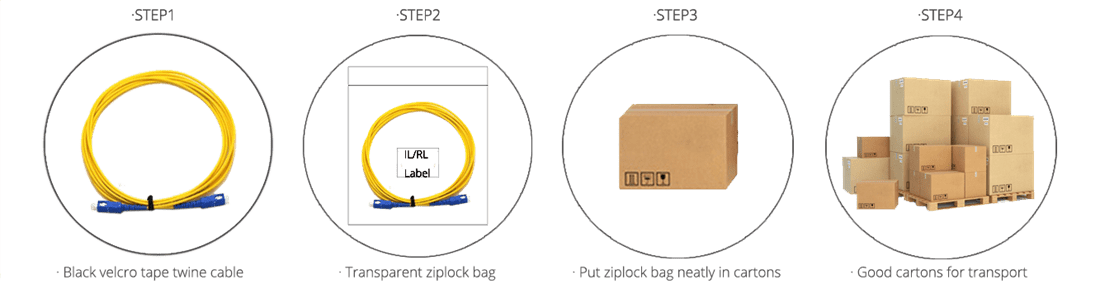

NOTE: The following images are for reference only in their packaging style. If the patchcord cable is long and big, which will be packing with plastic wrap.

 SC APC IL0.30dB 6-Cores Single-Mode SMF 5.0mmTrunk Fiber Optical Pigtail Cable

SC APC IL0.30dB 6-Cores Single-Mode SMF 5.0mmTrunk Fiber Optical Pigtail CableOur Quality Control

We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.

Learn More...




Click the hyperlink below to open the drawing:

This drawing is for reference only. If you need more information and need to modify the drawing, please Email
