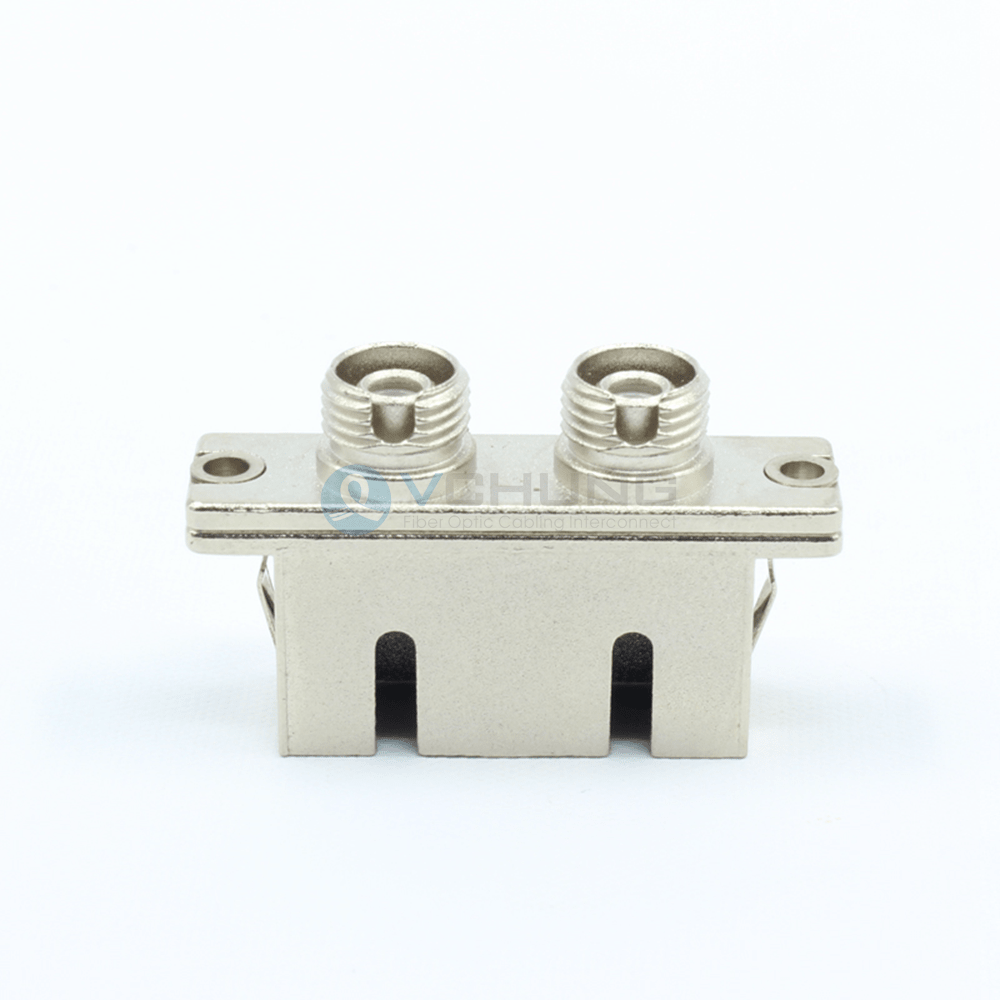

SC-FC Female to Female Duplex With Flange Fiber Optical Hybrid Adapter Metal Material

Quick Details
Cores number: Duplex Male/Female: Female to Female
Sleeve Material: Ceramic Flange: Hybrid and with Flange
Body Material: Metal / Crimp Insertion Loss: 0.20dB max

Model Number: #42201 Category:

Brief Introduction

Female to Female Hybrid Adapter is assembles different adapters together, so that different connectors can be directly connected to realize optical signal transmission thought hybrid adapter, such as the connection between SC / LC / ST / FC connector. Hybrid adapter have simplex and duplex type. Our company’s SC adapter appearance must be smooth and clean. It has no oil, burrs, scars and crack. The color of adapter must be bright in good consistency, all parts of adapter can assembly well without difficulty, it should be easy and comfortable to plug in and pull out connector from adapters, the clip should be powerful.


1.Modes:Single mode or Multimode.
2.Sleeve in high precision.
3.Low insertion loss.
4.Good repeatability.
5.Good interchangeability.
6.Easy installation.
7.Good temperature stability.


1.Optical fiber communication system.
2.Cable television network.
3.Optical fiber access network.
4.Video transmissions.
5.Test equipment.


Project Values
Reference standard YD/T 1272.1-2003
Insertion loss ≤0.2dB




IL change absolute value

low temperature Temperature: -40℃, Duration: 168 h ≤0.2dB
high temperature Temperature: 85℃, Duration: 168 h, Temperature change rate: 1℃/min ≤0.2dB
Hot and humid Temperature: 40℃, Humidity: 90%~95%, Duration: 168h, Temperature change rate: 1℃/min ≤0.2dB
Temperature cycle Temperature: -40℃ to + 85℃, Duration: 168h, Cycle times:21, Temperature change rate: 1℃/min ≤0.2dB
Repeatability Insertion pull times:10 ≤0.2dB
Mechanism durability Insertion times: 500 cycles ≤0.2dB
Tensile strength Of coupling mechanism 68.6N/10 Minute ≤0.2dB
Pull-out force ≤19.6.N
Flame resistance UL94-V0
Work temperature -25℃~+75℃
Storage temperature -40℃~+85℃

There are many types of Hybrid adapters. The size must be determined before purchase. The colors are green, blue, beige, purple, and turquoise. The core can be Simple, Duplex.


Fiber Optical Adapters Packing

Usually, we use transparent plastic boxes packaging, which can protect the adapter very well, and very neat. As shown in the picture.
SC-FC Female to Female Duplex With Flange Fiber Optical Hybrid Adapter Metal Material

SC-FC Female to Female Duplex With Flange Fiber Optical Hybrid Adapter Metal MaterialOur Quality Control

We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.

Learn More...


Female to Female Hybrid adapter Datasheet

Female to Female Hybrid adapter Datasheet

Products drawing as follow:


This drawing is for reference only. If you need more information and need to modify the drawing, please Email

Q1. What is your terms of packing?

Answer: A: Generally, we pack our goods in ziplock bag and brown cartons. If you have special requirements, please let us know and we will try our best to cooperate with you.

Q2. What is your terms of payment?

Answer: A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?


Q4. How about your delivery time?

Answer: A: Generally, it will take 2 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

Answer: A: Yes, we can produce by your samples or technical drawings.

Q6. What is your sample policy?

Answer: A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

Answer: A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?

Answer: A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
