SC/UPC Single-Mode Attenuation 1 to 30dB Plug Type Fixed Optical Attenuator

Quick Details
Cores number: Simplex Male/Female: Male to Female
Fiber Type: Single-mode Polish Type: UPC
Connector housing color:  Metal Attenuation value: 1~30dB

Model Number: #31105 Category:

Brief Introduction

The Plug type fixed attenuator is a Male to Female attenuator. One end is a connector type, and the other end is an adapter type. The attenuation fiber inserts the ferrule and fixed. According to different attenuation fibers, the different attenuation values attenuator can be manufactured. Put the attenuator in the optical link, that means, the optical link thought the attenuation fiber, which can reduce optical power. So the optical components will not be damaged due to excessive power.

Features

1.High attenuation accuracy.
2.Low additional loss.
3.Good stability.
4.Male to female fixed attenuation and easy to use.

Applications

1.Debug optical power performance.
2.Calibration calibration of fiber optic instruments.
3.Fiber signal attenuation in cabling system.
4.Optical fiber communication system.

Product Video

Specifications

Attenuator Type SC (plug type fixed) Polish Type UPC
Fiber Mode Single-mode Test Wavelength 1310/1550nm
Operating Wavelength Range 1260~1650nm Body material Copper
Attenuation Tolerance(1~5dB) ±0.5dB Attenuation Tolerance(6~20dB) ±10%dB
Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +85℃

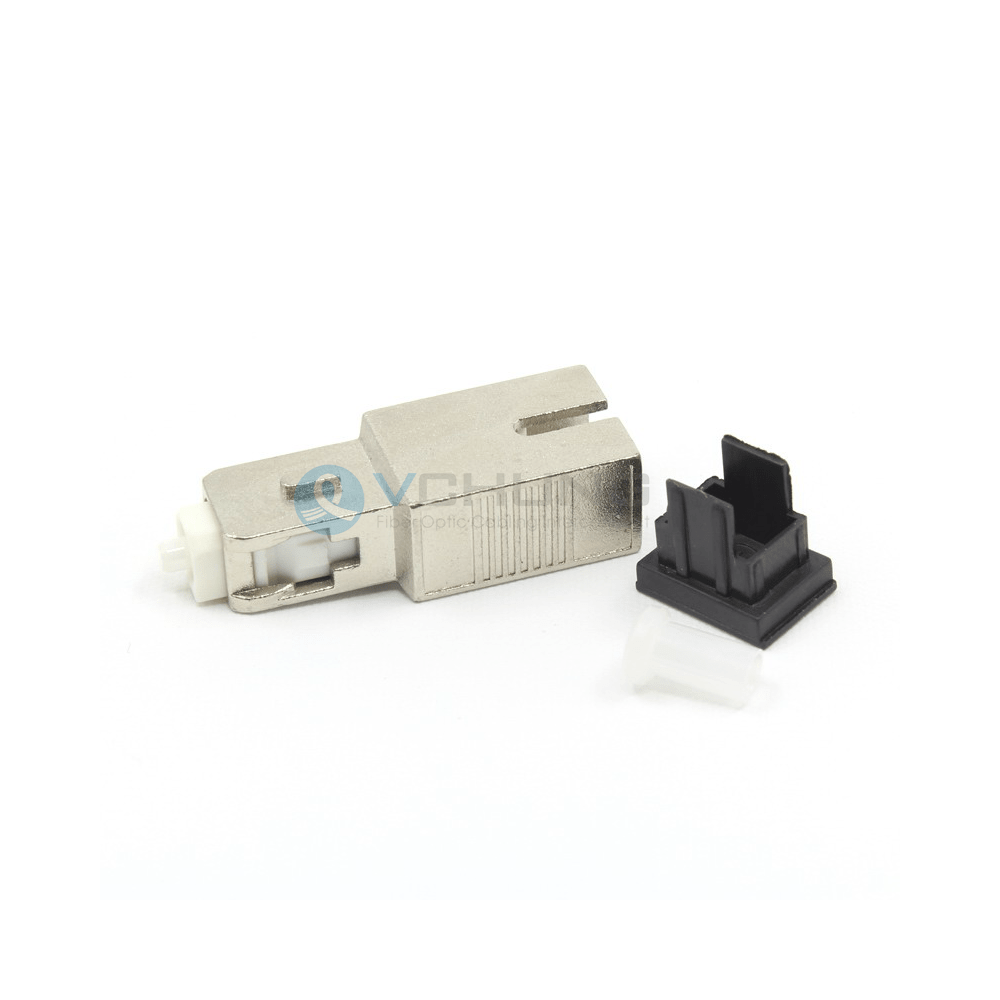

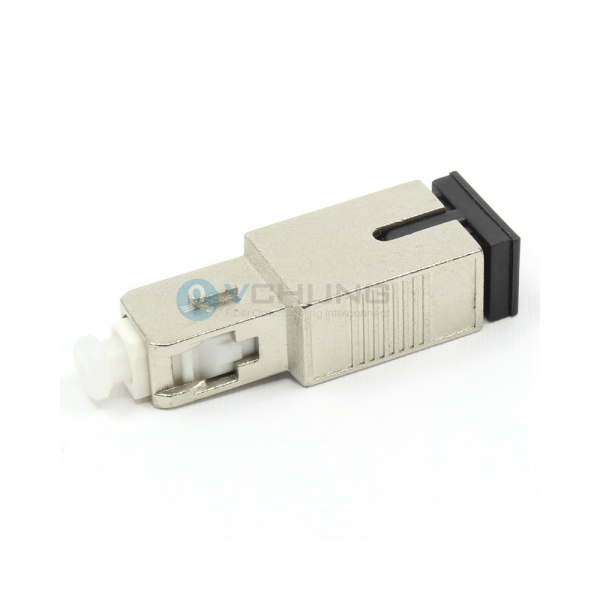

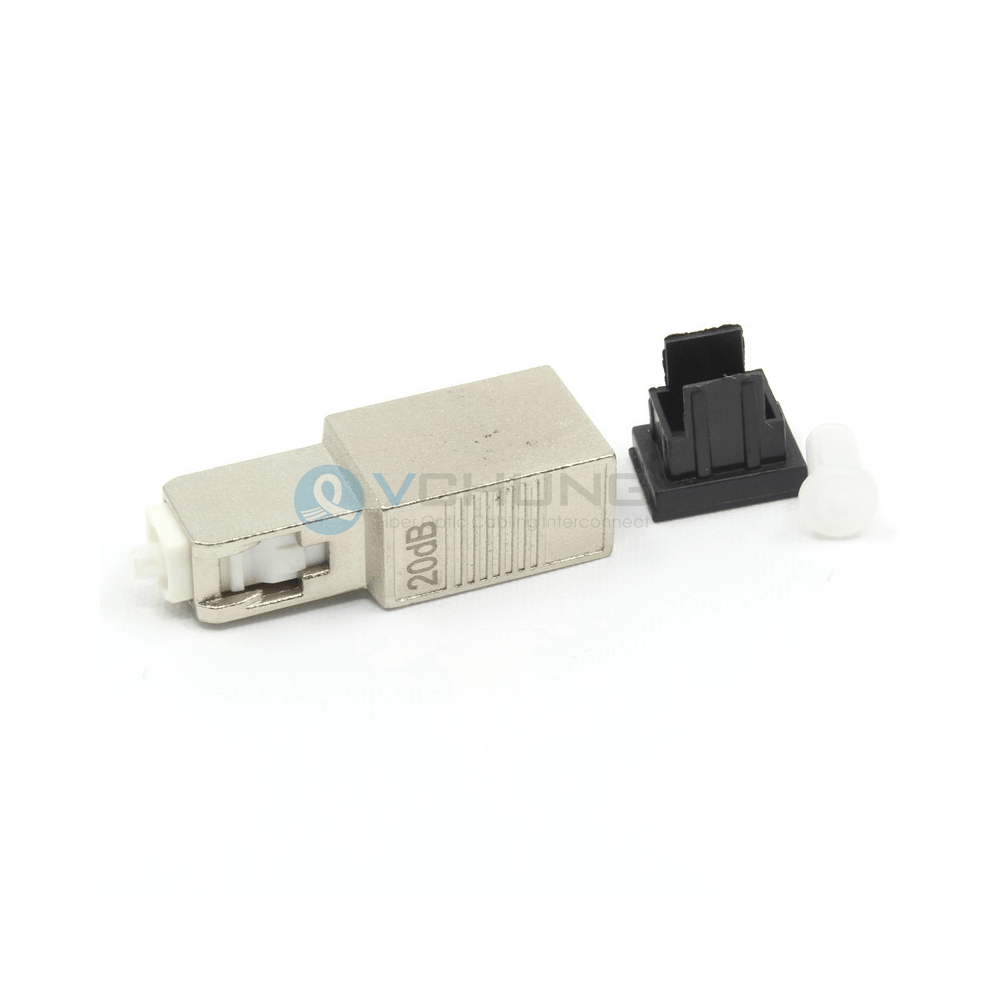

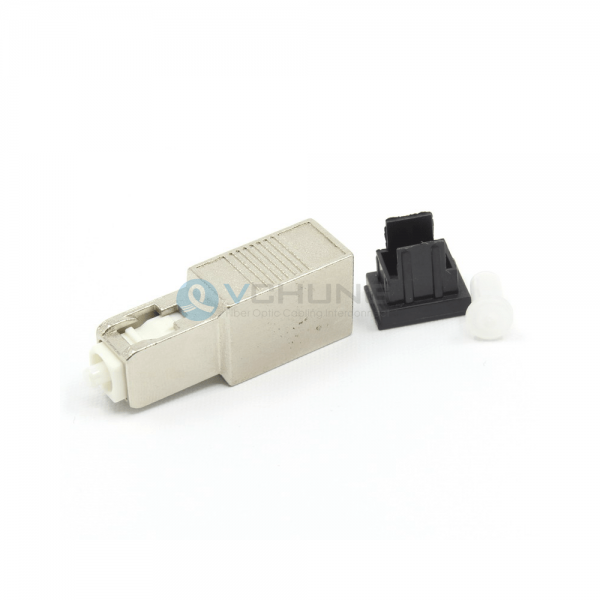

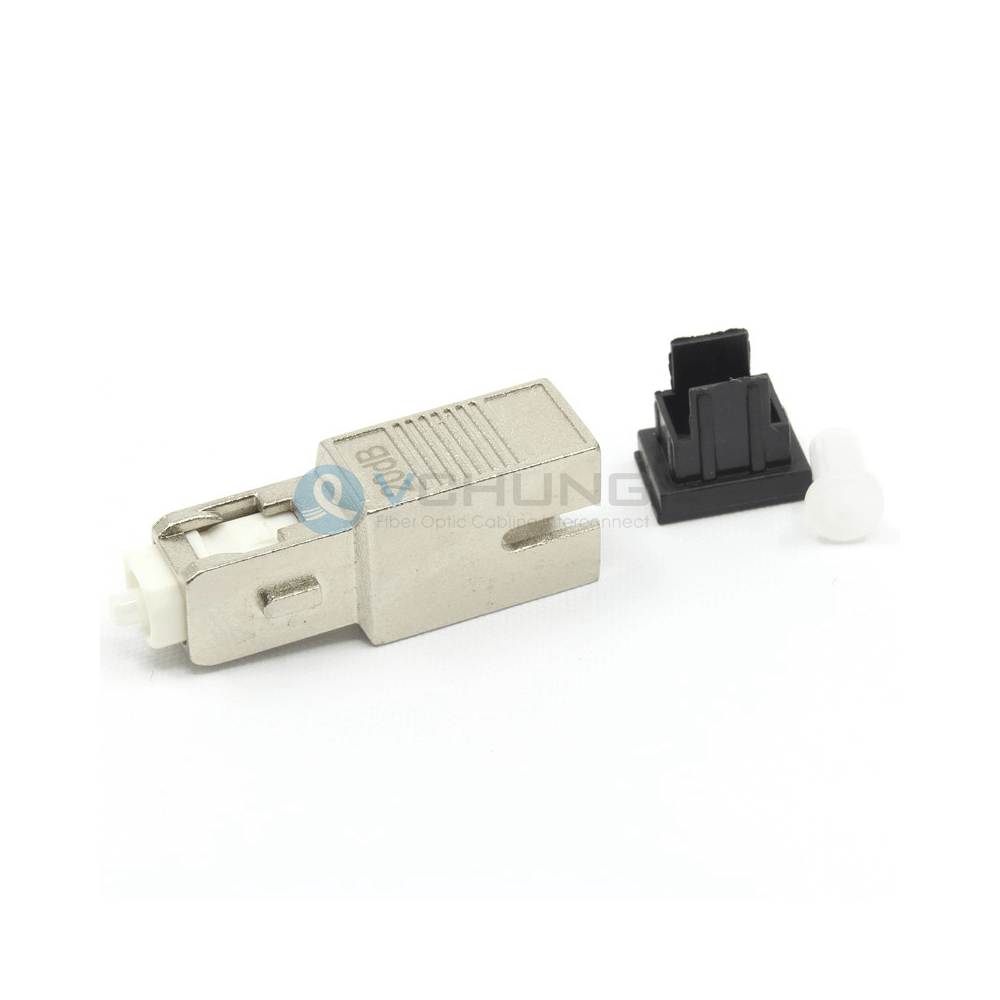

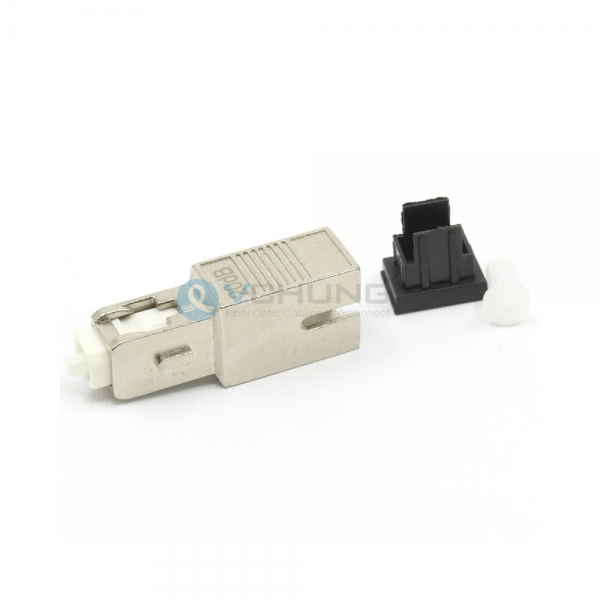

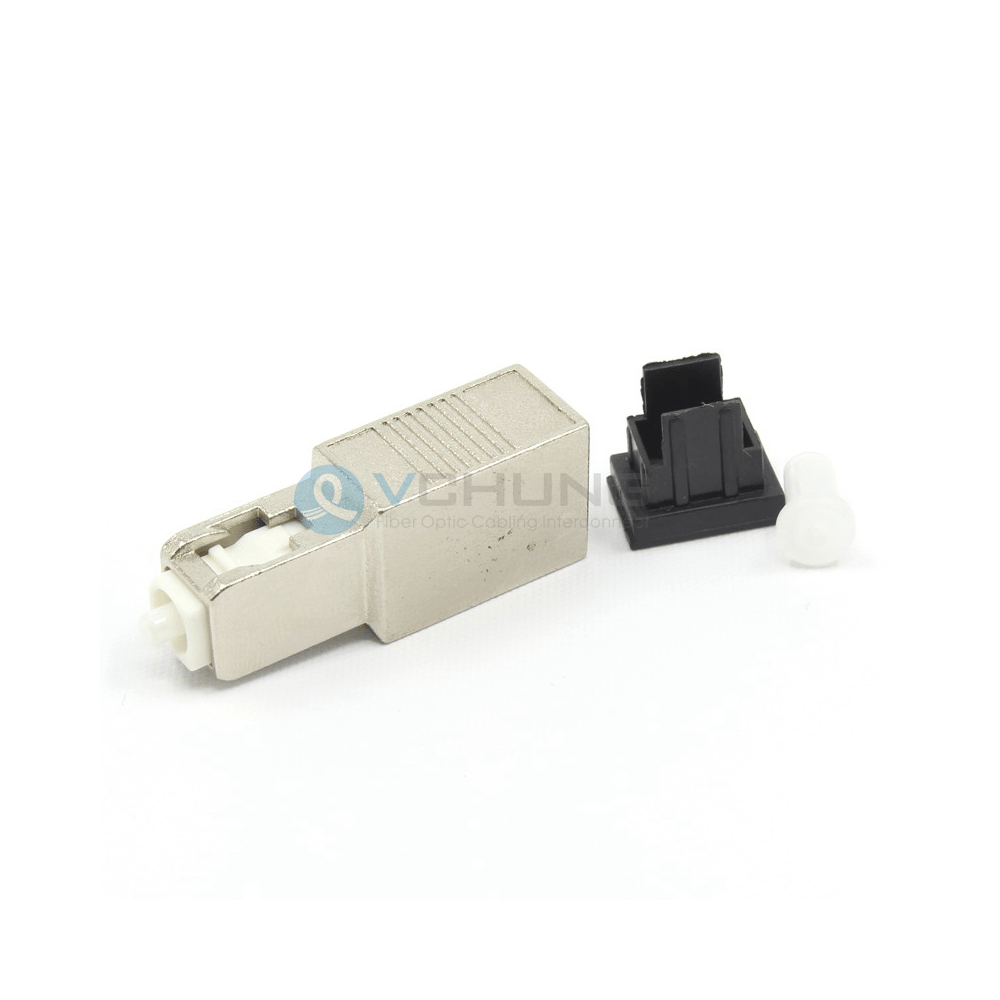

Detailed Images

SC/UPC Single-Mode Attenuation 1 to 30dB Plug Type Fixed Optical Attenuator

SC/UPC Single-Mode Attenuation 1 to 30dB Plug Type Fixed Optical Attenuator


Packing

NOTE:One ziplock bag for one Attenuator.

 SC/UPC Single-Mode Attenuation 1 to 30dB Plug Type Fixed Optical Attenuator

SC/UPC Single-Mode Attenuation 1 to 30dB Plug Type Fixed Optical AttenuatorOur Quality Control

We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.

Learn More...

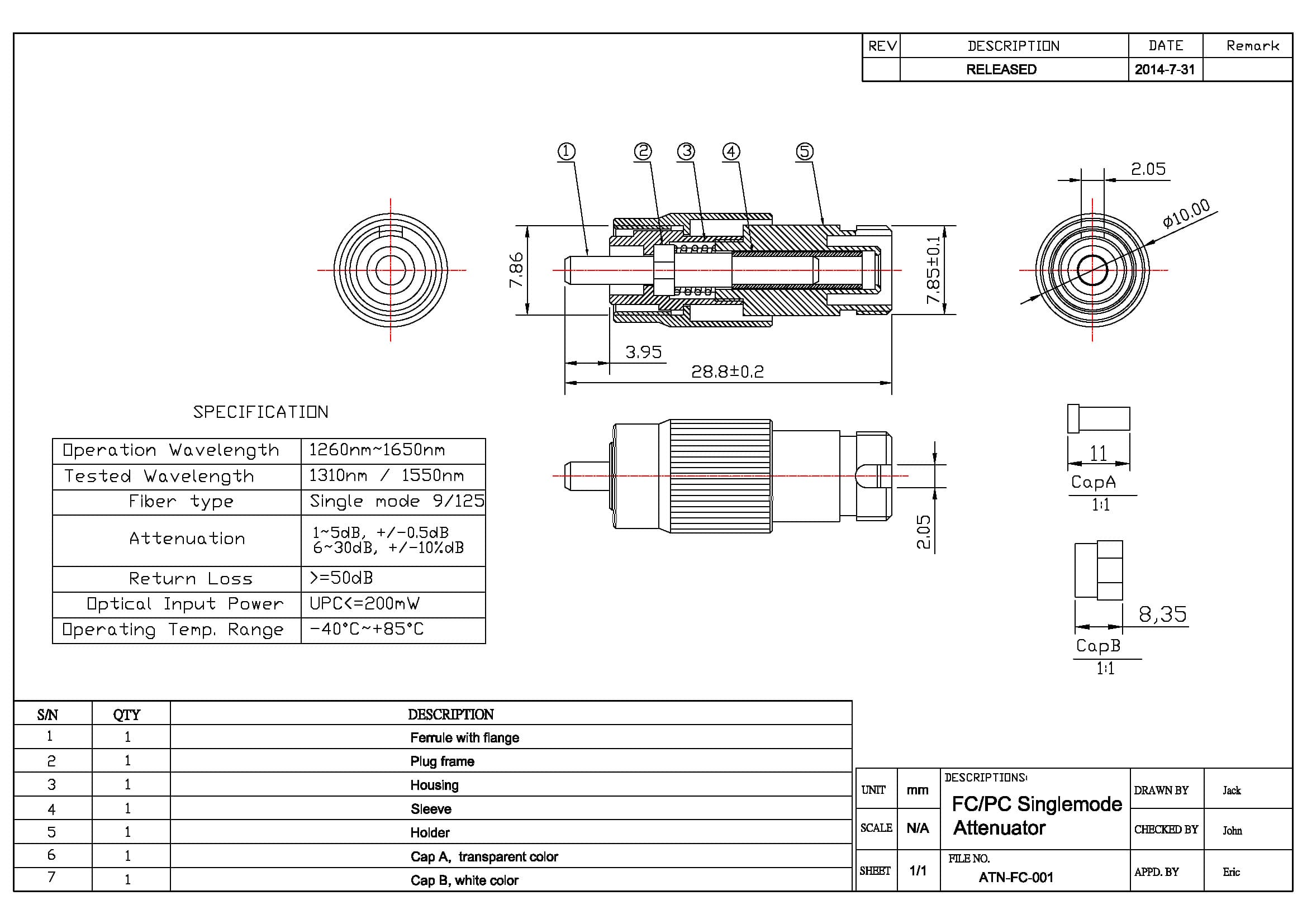

FC attenuator specification

This is FC attenuator specification DATASHEET

SC/UPC Single-Mode Attenuation 1 to 30dB Plug Type Fixed Optical Attenuator

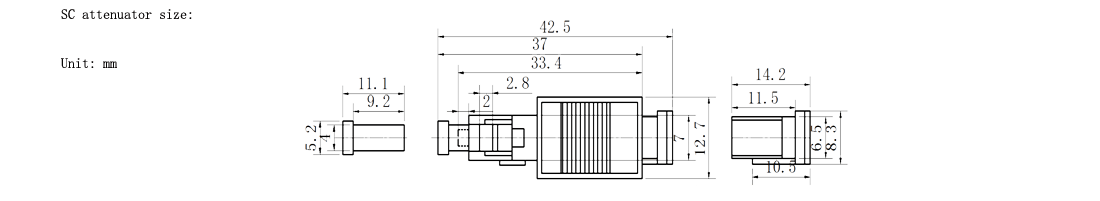

This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
