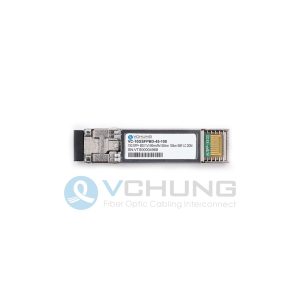

SFP-10G-BX80D 10G BiDi SFP+ 1550nmTx/1490nmRx 80km Transceiver Module

Brief Introduction

Vchung’s VC-10GSFPBD-54-80 is hot pluggable Small-Form-Factor SFP+ Bi-directional transceiver module, which is designed for long reach 10Gb/s duplex optical data communications application. The SFP+ BIDI module features a highly reliable 1550nm EML laser transmitter and 1490nm APD photo-detector into single LC optical connector, which allows 80km link distance over single-strand single mode fiber.

This BDI SFP+ ZR transceiver module also provides a unique enhanced digital diagnostic monitoring interface(DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. The transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-ZR/ZW per IEEE 802.3ae ), and 10G Fibre Channel. The transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features

1. Hot-pluggable SFP+ footprint
2. Electrical interface compliant to SFF-8431
3. Compliant with SFF-8472
4. 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR
5. 1550nm EML laser transmitter, 1490nm APD photo-detector receiver
6. Distance up to 80km on single mode fiber
7. Simplex LC connector
8. Built-in digital diagnostic functions
9. Single 3.3V power supply
10. Metal enclosure, for lower EMI
11. ROHS compliant and lead-free

Applications

1.10GBASE-ZR/10GBASE-ZW Ethernet
2.10G Fiber Channel
3.10G Data Center Switches and Routers
4.10G Network interface cards
5.10G Media Converters

Specifications

Form Factor	SFP+	Data Rate	10Gbps
Wavelength	Tx1550nm / Rx1490nm	Reach	80KM
Media	Single-mode	Device Type	SFP+ ZR
Connector Type	LC simplex	DDMI	with
Optical Components	EML/APD	Power Supply Voltage	3.3V
Output Power	0~6dBm	Receiver Sensitivity	< -21dBm
Compatiblity	MSA Compliant	Operating Temperature	0℃ to +70℃

10G BIDI SFP+ 10km~100km Transceivers

---

Optical transceivers port(LC) For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.

---

Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.

---

Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.

---

Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.

---

Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.

---

Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.

---



This drawing is for reference only. If you need more information and need to modify the drawing, please Email us：support@vchung.com
