Brief Introduction

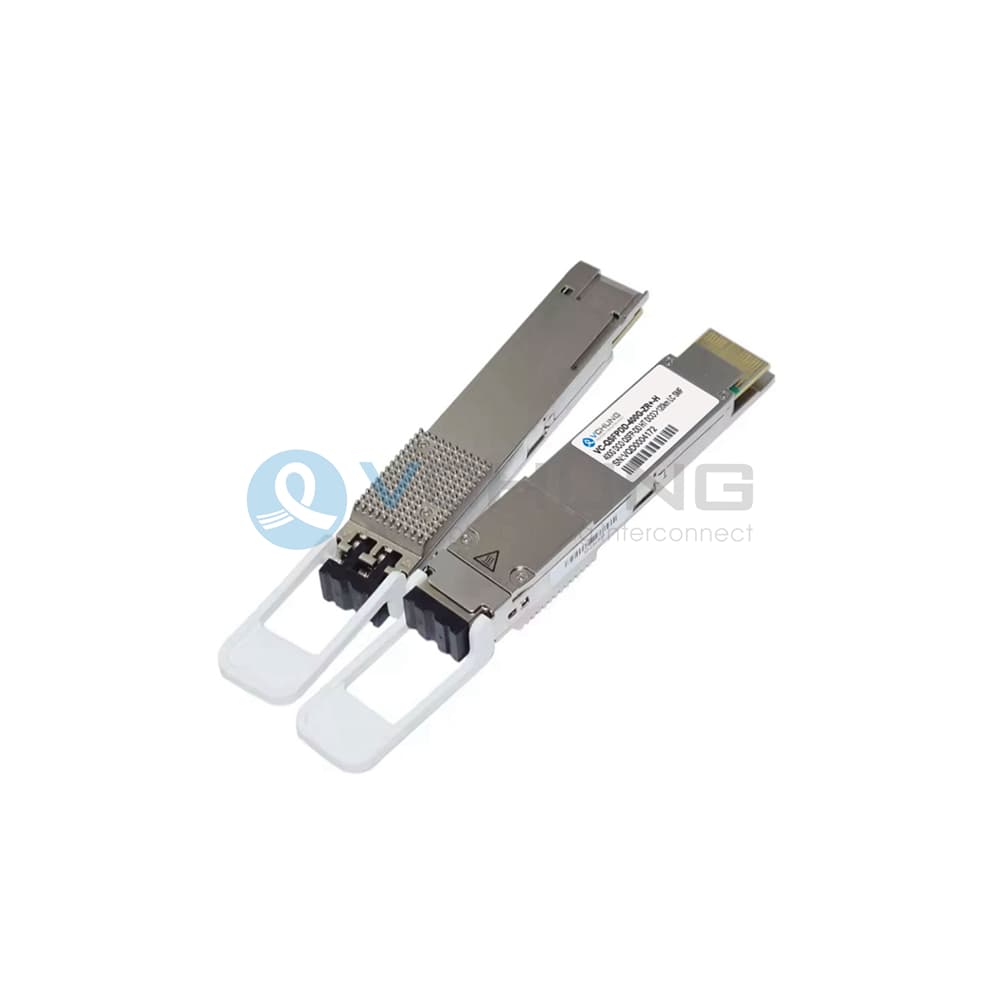

The Vchung 400G QSFP-DD ZR+ Pro is a C-Band optical frequency tunable coherent optical module,combines 7nm coherent DSP ASIC functionalitywithbest in class ultra-narrow line-width tunable lasers, high-speed modulators and high responsively coherent receivers to deliver highperformanceat 100G DP-QPSK/ 200G DP-QPSK/ 300G DP-8QAM / 400G DP-16QAM modulattion format.With an adjustable output optical power rangeof -10~1dBm, it utilizes EDFA. The transceiver is compliant with the OIF QSFP-DD MSA and supports digital diagnostics functions.It is intended to be used in conjunction with a host platform to support 400G transmission over optical links in DCI applications.
Features
- Line rate 100G/200G/300G/400G
- OFEC and CFEC FEC Support
- Support ingress LF hold-off time configure
- Support hitless firmware upgrade
- Digital Diagnostic Monitoring Support
- Hot Pluggable by 76-PIN PAD and host connector
- C-band tunable, supports 100/75/50GHz grid spacing, support 0.1GHz fine turning
- Maximum Power Consumption 22.5W
- 100G DP-QPSK/ 200G DP-QPSK / 300G DP 8QAM /
400G DP-16QAM Modulation - TX VOA inside, output power -10~1dBm tunable
- EDFA inside, High output Power, max TX power +4dBm at 193.7THz, +1dBm at C-band
- Compact Size (18.4 mm x 93.4 mm x 8.5 mm)
Applications
1.QSFP-DD MSA
2.Open ZR+ MSA2.0
3.OIF-400ZR-02.0
4. OIF-CMIS-05.2
5.IA OIF-C-CMIS-01.2
6.QSFP-DD-Hardware-Rev6.3
7.Transmission distance up to 480km Integrated with EDFA
| Part No. | VC-QSFPDD-400G-ZR+-H | Form Factor | QSFP-DD |
| Distance | 480KM with EDFA | Wavelength | Coherent |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Connector | Duplex LC |
| Voltage | 3.3V | Cable Type | SMF |
| DDM | Yes | Transmitter Type | Tunable Coherent Laser |
| Receiver Type | PIN | TX Power | -10.0~+1.0dBm |
| Receiver Sensitivity | <-22dBm | Protocols | MSA Compliant |
| Warranty | 3 years | Data Rate | 100G/400G |
