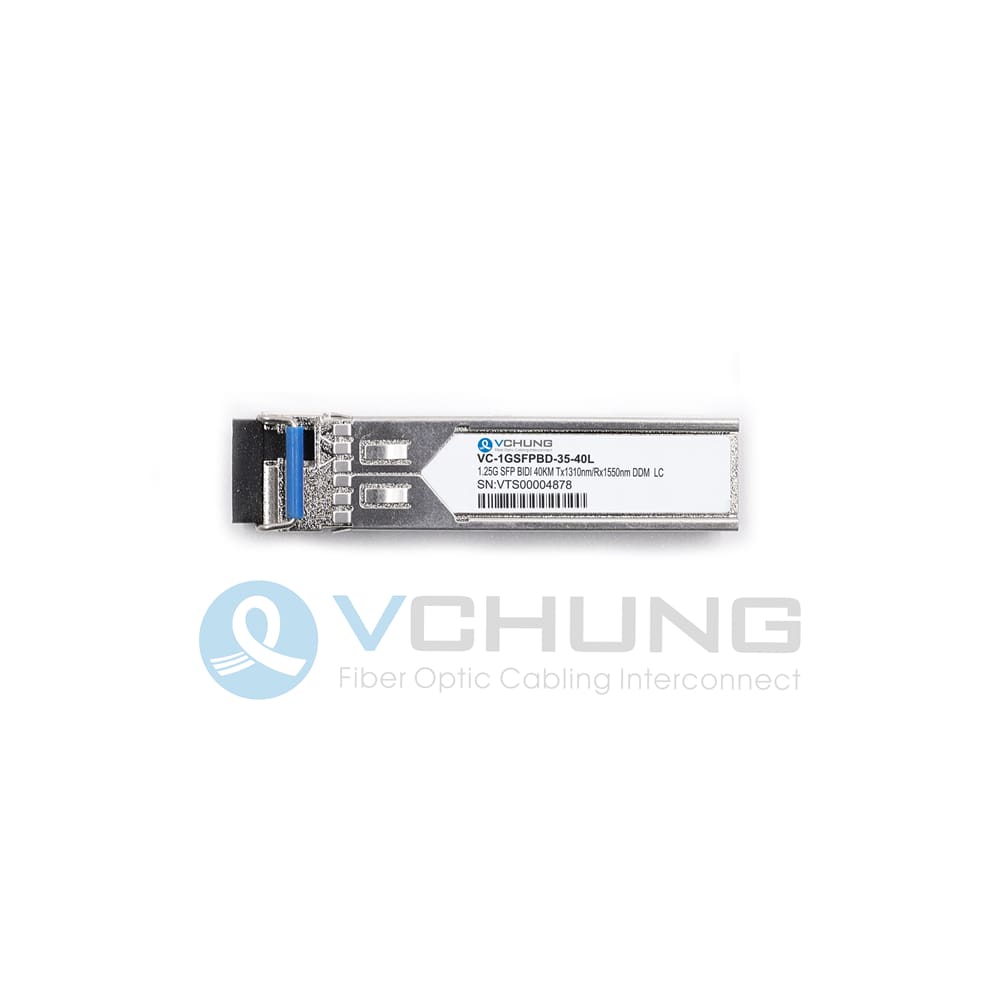

For Cisco GLC-BX-40U Compatible, 1000BASE-BX-40U BIDI SFP Tx1310nm/Rx1550nm 40km Optical Transceiver Module

Quick Details
Cable Type: SMF Form Type: SFP BIDI
Wavelength: TX1310nm/RX1550nm Distance: 40KM
Data Rate: 1.25Gb/s Connector Type: Simplex LC

Brief Introduction

The SFP BIDI transceivers are small form factor pluggable module for Gigabit Ethernet 1000BASE-BX and Fiber Channel single fiber applications by using 1310nm/1550nm transmitter and 1550nm/1310nm receiver. It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses a multiple quantum well A type/ B type laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated B type/ A type detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The SFP BIDI transceivers are designed to be compliant with SFF-8472 Multi-source Agreement (MSA).

Features

1.Support 1.25Gbps Data Link

2.1310nm FP TX/1550nm RX

3.40km with 9/125 µm SMF

4.Single 3.3V Power Supply and TTL Logic Interface

5.Hot-Pluggable SFP Footprint Simplex SC/LC Connector Interface

6.Class 1 FDA and IEC60825-1 Laser Safety Compliant

7.Compliant with SFP MSA Specification

Applications

1.Fiber Channel Links

2.WDM Gigabit Ethernet Links

3.Other Optical Links

4.FTTX Application

Specifications

Form Factor SFP BIDI Data Rate 1.25Gb/s
Wavelength TX1310nm/RX1550nm Reach 40KM
Media Single-mode Device Type SFP EX
Connector Type Simplex LC DDMI with
Optical Components FP+PIN Power Supply Voltage 3.3V
Output Power -3~2dBm Receiver Sensitivity < -23dBm
Compatiblity MSA Compliant Operating Temperature 0℃ to +70℃

For Cisco GLC-BX-40U Compatible, 1000BASE-BX-40U BIDI SFP Tx1310nm/Rx1550nm 40km Optical Transceiver ModuleOptical transceivers port(LC)

For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.

Optical transceivers series

Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface.
Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including:
1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC.
2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP.
3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.
For Cisco GLC-BX-40U Compatible, 1000BASE-BX-40U BIDI SFP Tx1310nm/Rx1550nm 40km Optical Transceiver Module

Compatibility

The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
For Cisco GLC-BX-40U Compatible, 1000BASE-BX-40U BIDI SFP Tx1310nm/Rx1550nm 40km Optical Transceiver Module

For Cisco GLC-BX-40U Compatible, 1000BASE-BX-40U BIDI SFP Tx1310nm/Rx1550nm 40km Optical Transceiver ModuleIndustrial Standards

VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.

For Cisco GLC-BX-40U Compatible, 1000BASE-BX-40U BIDI SFP Tx1310nm/Rx1550nm 40km Optical Transceiver ModuleFull MSA Compliance

High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.

Quality assurance

VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.
For Cisco GLC-BX-40U Compatible, 1000BASE-BX-40U BIDI SFP Tx1310nm/Rx1550nm 40km Optical Transceiver Module



10GBASE-LR SFP+ DATASHEET

10GBASE-LR SFP+ DATASHEET

For Cisco GLC-BX-40U Compatible, 1000BASE-BX-40U BIDI SFP Tx1310nm/Rx1550nm 40km Optical Transceiver Module

This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
