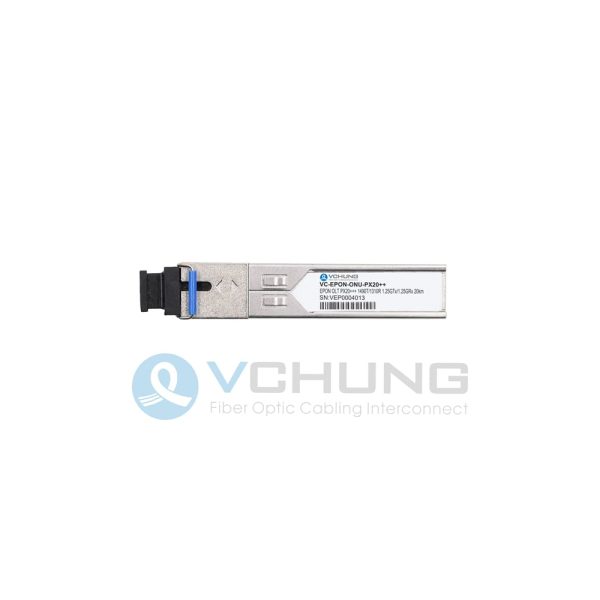

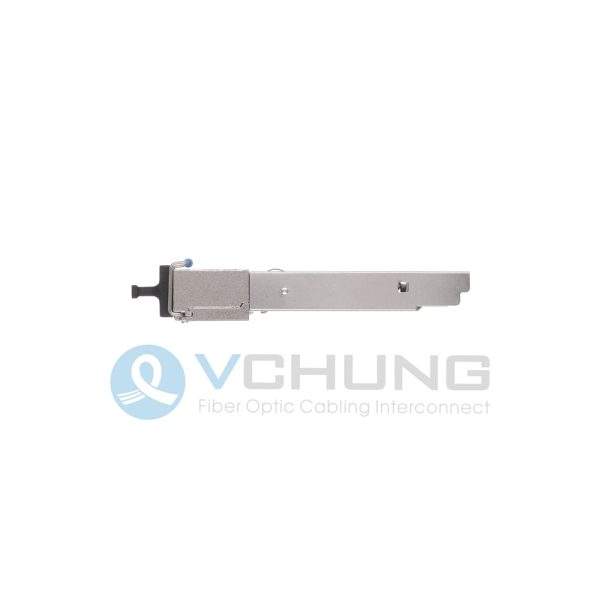

The EPON OLT SFP Transceiver module is designed for Gigabit Ethernet Passive Optical Network（EPON）20km transmission. The module incorporates 1490nm continuous-mode transmitter and 1310nm burst-mode receiver. The transmitter section uses a 1490nm DFB laser and an integrated laser driver which is desigened to be class-1 eye safe under any single fault. The laser driver includes APC and temperature compensation functions, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging.
The receiver section uses an integrated APD and BM-preamplifier mounted together. The burst-mode receiver is resetless and wide dynamic range over 20dB can be obtained under whole operating conditions. The module has the function that indicates receiver burst-power-detect signal (active HIGH). The receiver includes digitalized burst mode optical power monitoring function, which converses any of a received ONU optical power directly in digital, with a Trigger input from system. When rising edge of Trigger detected, the DDM processor starts a burst optical power conversion, the digital result is available via DDM interface after Burst Optical Power Conversion Time. Trigger pulse width should be more than Burst Optical Power Conversion Holding Time. An integrated WDM coupler can distinguish 1310nm input light from 1490nm output light. The metallic package guarantees excellent EMI and EMC characteristics.
1. Single fiber bi-directional data links symmetric 1.25Gbps application
2. 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
3.Reset-less burst-mode receiver simply the system design
4. More than 24dB wide dynamic range
5. 0 to 70°C operating case temperature, Single 3.3V power supply
6. Digital diagnostic monitoring interface
7. Digital burst RSSI function to monitor the input optical power level
8. LVPECL compatible data input/output interface
9.LVTTL transmitter disable control
10. LVTTL transmitter laser fault alarm
11. LVTTL receiver loss of signal indication
12. Low EMI and excellent ESD protection
13. Class I laser safety standard IEC-60825 compliant
|Product Series||EPON-OLT-PX20||Data Rate||TX-1.25G/RX-1.25G|
|Form Factor||GEPON SFP ONU/OLT||connector||Simplex SC|
|Wavelength||TX 1490nm/RX 1310nm||Fiber Type||SMF|
|Max Distance||2okm||Optical Components||1490nm DFB|
|Power Supply Voltage||3.3V||Receiver Type||APD|
|Transmitter Power||+2.0~+7.0dBm||Receiver Sensitivity||-27 dBm|
|Compatiblity||MSA Compliant||Operating Temperature||0°C to 70°C|

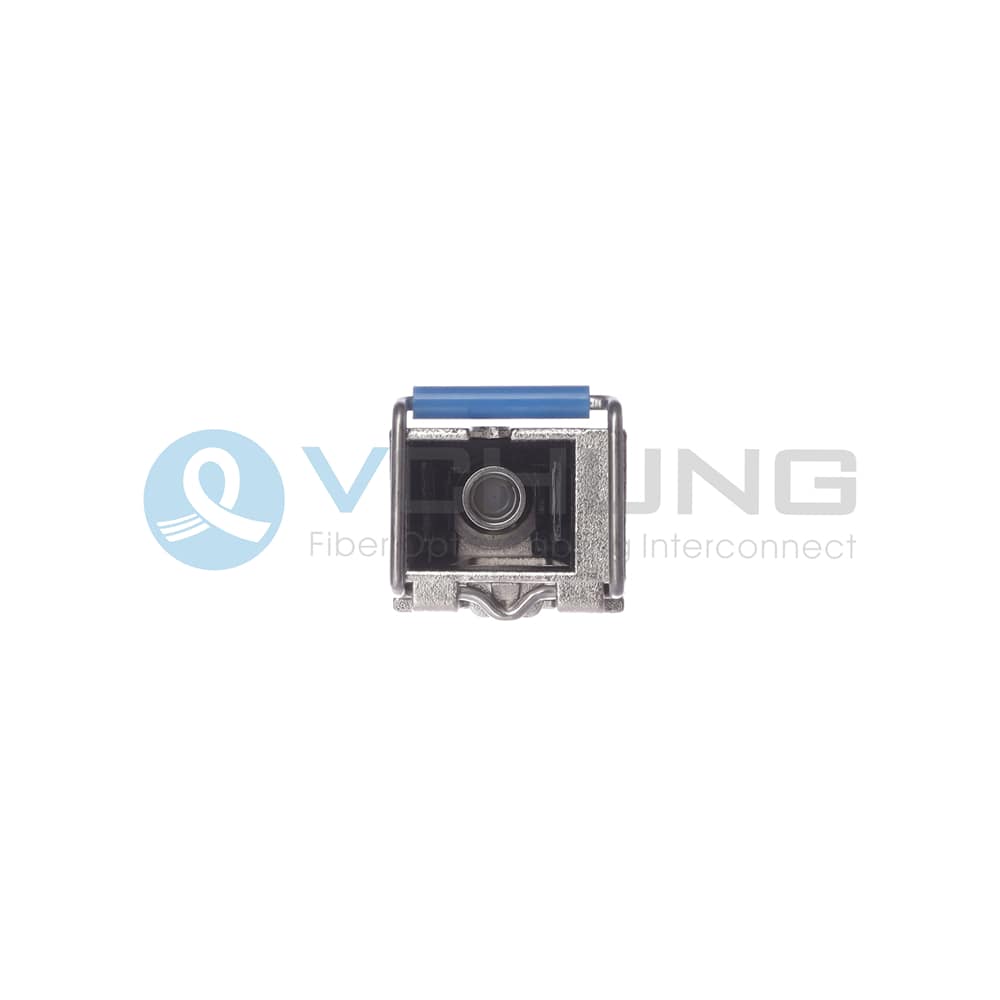

|Optical transceivers port(SC)
For SC port, there are two types of single-fiber bidirectional optical transceivers (one SC connector) and dual-fiber unidirectional optical transceiver (two SC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.
|Optical transceivers series|
Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface.
Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including:
1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC.
2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP.
3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.
The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.
|Full MSA Compliance
High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.
