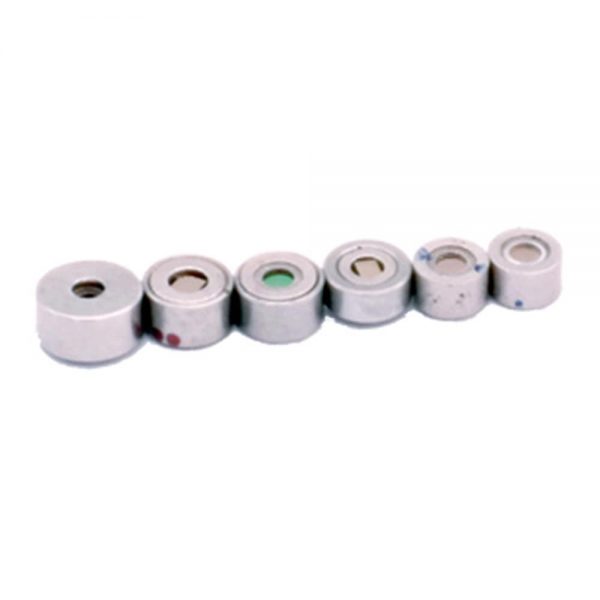

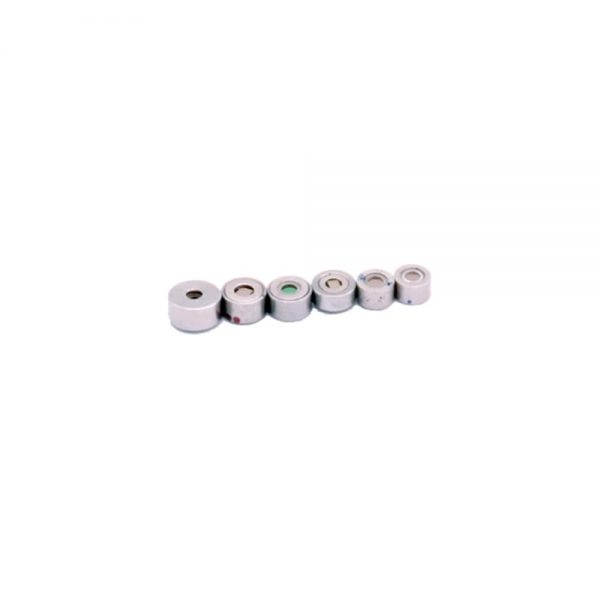

Free Space Isolator For Optical Transceivers TOSA/ROSA

Quick Details
Center wavelength: CWDM wavelength Isolation: 30dB Min
Insertion Loss: 0.30dB Max Isolated core dimensions: 0.4,0.5,0.6mm
Max power: 300mW Metal parts material: SUS304

Model Number: #18103 Category:

Brief Introduction

Free Space Isolator is designed to optical transceivers TOSA/ROSA packaging, fit for different of optical module transceiver. Our FSI are 100% factory tested and can meet your special requirements.


1.High Isolation

2. Low IL Insertion

2.100% tested before delivery

4.Full Size available


1.100G QSFP28-LR4

2.100G CWMD4


4.Butterfly Packaging


Center wavelength( λc) 1310nm, 1490nm, 1550nm, CWDM wavelength
Bandwidth λc ±20nm Insertion Loss (λc at 25°C) Max 0.30dB
Isolation (λc at 25°C) Min 30dB Isolated core dimensions 0.4mm, 0.5mm, 0.6mm or customized
Isolation core placement angle 7 ± 1° Max power 300mw
Metal parts material SUS304 Appearance size  1.3×1.0mm, 1.8×1.1mm, 2.5*1.1mm, customized
Polarization direction marker point tolerance ± 10°
Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +85℃

Order information

Center wavelength( λc) Appearance size Core size In/Out Wavelength Mark
27:1270nm 1310:Φ1.3xL1.0mm 40:0.4×0.4mm In:Input Attachment 1(code)
29:1290nm 1811:Φ1.8xL1.1mm 50:0.5×0.5mm Out:Output
31:1310nm 2511:Φ2.5xL1.1mm 60:0.6×0.6mm
33:1330nm 2514:Φ2.5xL1.4mm XX: Customized
49:1490nm Customized
XX: Customized


Code and Package

Code Magnetic ring package Code Metal package
A 1270nm (High Point)(black)&(Low point)(Yellow) AA 1270nm (End-face)(black)&(side-face)(Yellow)
B 1290nm (High Point)(black)&(Low point)(green) BB 1290nm (End-face)(black)&(side-face)(green)
C 1310nm (High Point)(black)&(Low point)(red) CC 1310nm (End-face)(black)&(side-face)(red)
D 1330nm (High Point)(black)&(Low point)(blue) DD 1330nm (End-face)(black)&(side-face)(blue)
E 1350nm (High Point)(black)&(Low point)(orange) EE 1350nm (End-face)(black)&(side-face)(orange)
F 1370nm (High Point)(pink)&(Low point)(orange) FF 1370nm (End-face)(pink)&(side-face)(orange)
G 1390nm (High Point)(blue)&(Low point)(brown) GG 1390nm (End-face)(blue)&(side-face)(brown)
H 1410nm (High Point)(red)&(Low point)(brown) HH 1410nm (End-face)(red)&(side-face)(brown)
I 1430nm (High Point)(green)&(Low point)(brown) II 1430nm (End-face)(green)&(side-face)(brown)
J 1450nm (High Point)(brown)&(Low point)(pink) JJ 1450nm (End-face)(brown)&(side-face)(pink)
K 1470nm (High Point)(red)&(Low point)(pink) KK 1470nm (End-face)(red)&(side-face)(pink)
L 1490nm (High Point)(green)&(Low point)(red) LL 1490nm (End-face)(green)&(side-face)(red)
M 1510nm (High Point)(green)&(Low point)(pink) MM 1510nm (End-face)(green)&(side-face)(pink)
N 1530nm (High Point)(green)&(Low point)(orange) NN 1530nm (End-face)(green)&(side-face)(orange)
O 1550nm (High Point)(blue)&(Low point)(red) OO 1550nm (End-face)(blue)&(side-face)(red)
P 1570nm (High Point)(blue)&(Low point)(green) PP 1570nm (End-face)(blue)&(side-face)(green)
Q 1590nm (High Point)(blue)&(Low point)(orange) QQ 1590nm (End-face)(blue)&(side-face)(orange)
R 1610nm (High Point)(blue)&(Low point)(pink) RR 1610nm (End-face)(blue)&(side-face)(pink)




Free Space Isolator Spec DATASHEET

Free Space Isolator Spec DATASHEET

Free Space Isolator For Optical Transceivers TOSA/ROSA

This drawing is for reference only. If you need more information and need to modify the drawing, please Email
