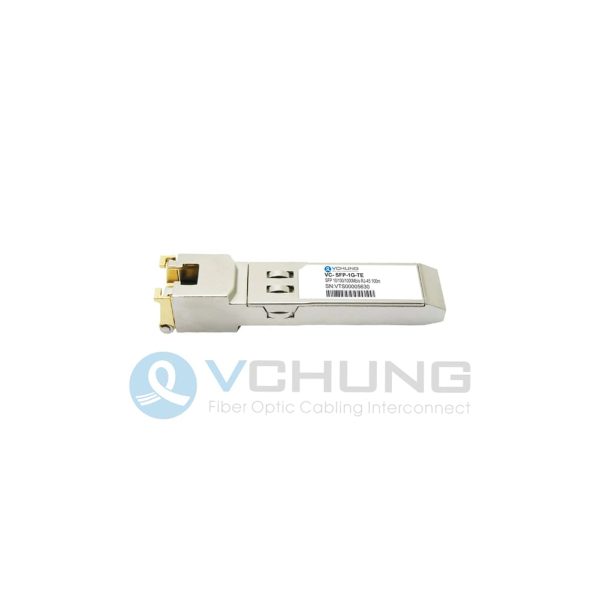

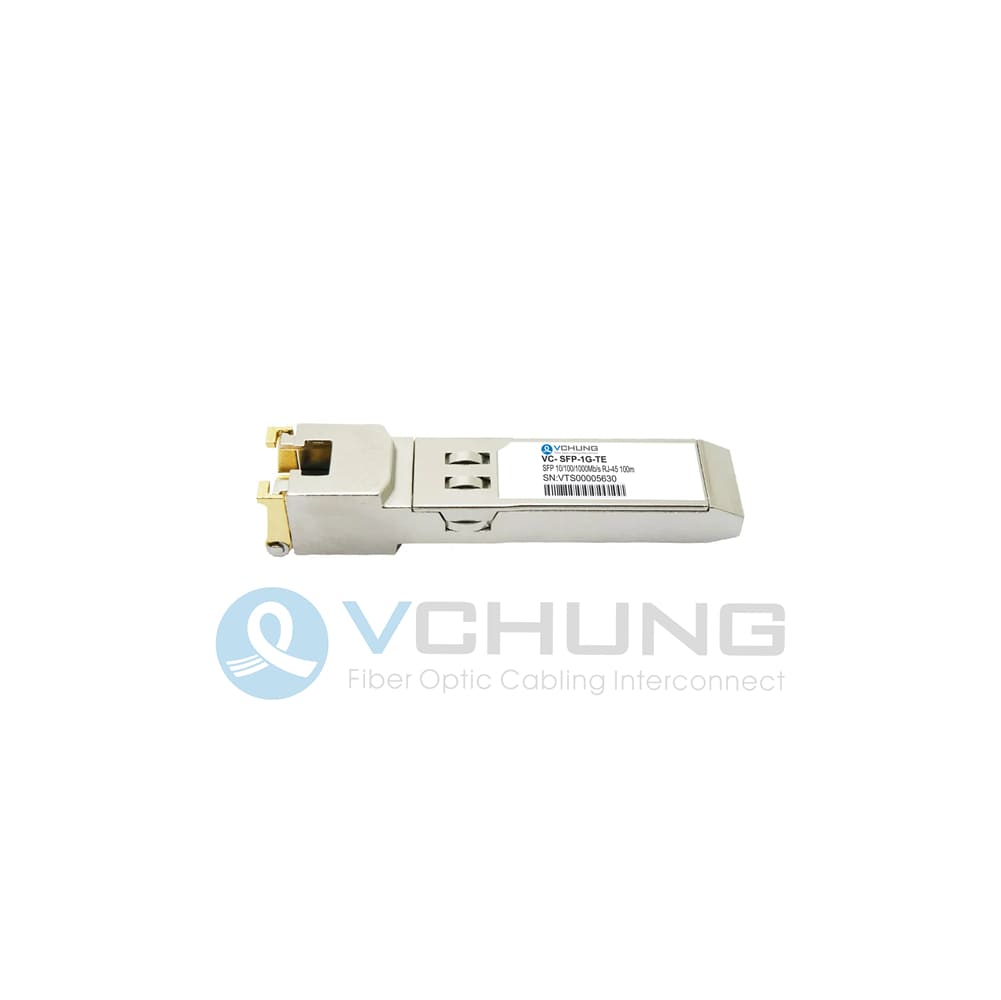

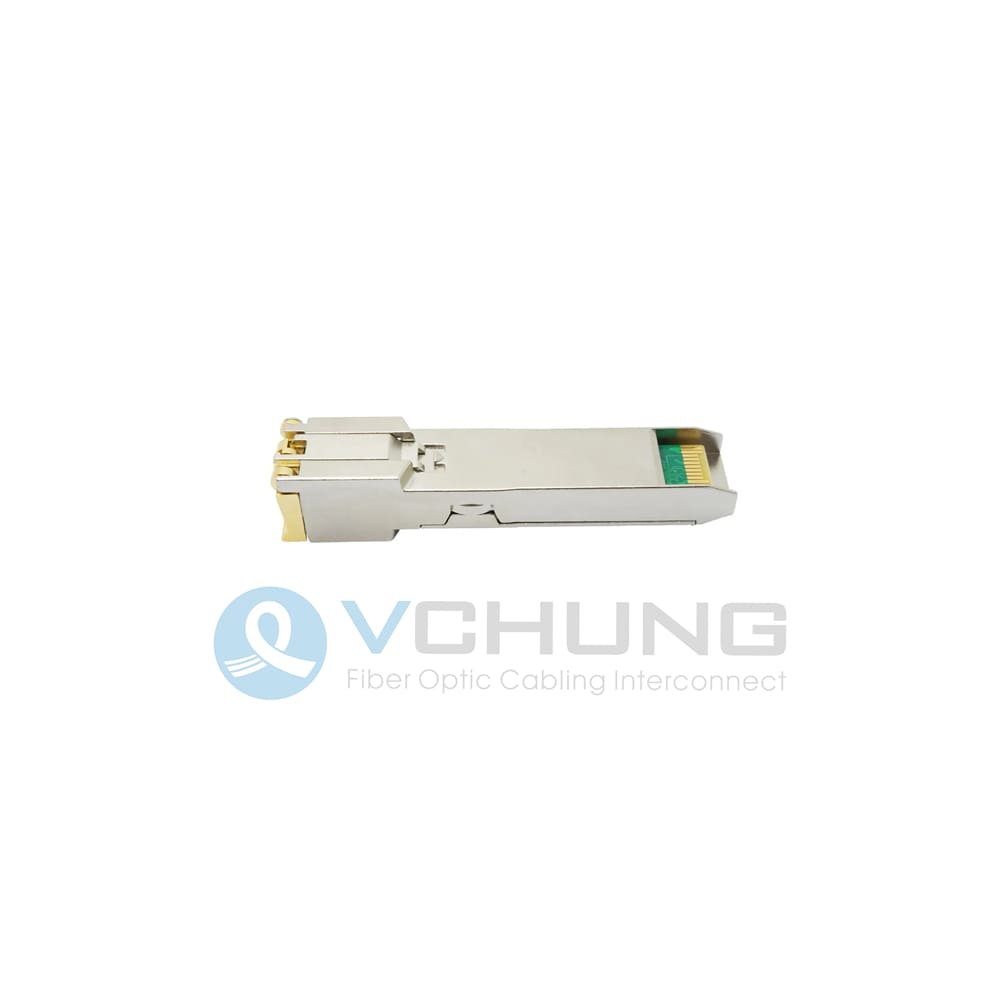

GLC-TE-VC Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp-Orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cables. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.
1.Up to 1.25Gb/s bi-directional data links
2. Hot-pluggable SFP footprint
3. Extended case temperature range (-40°C to +85°C )
4. Fully metallic enclosure for low EMI
5. Low power dissipation (1.05 W typical)
6. Compact RJ-45 connector assembly
7. Access to physical layer IC via 2-wire serial bus
8. 1000 BASE-T operation in host systems with SERDES interface
1.LAN 1000Base-T Operation in Host Systems
2.Switch to Switch Interface
4.Gigabit Ethernet over Cat5 Cable
|Form Factor||Copper SFP||Data Rate||1000BASE|
|Cable Type||Cat 5/Cat 5a||Reach||100M|
|Protocols||MSA Compliant, IEEE STD 802.3 and 802.3ab||DDMI||NO|
|Power Supply Voltage||3.3V||Media||Copper|
|Output Power||N/A||Receiver Sensitivity||N/A|
|Compatiblity||MSA Compliant||Operating Temperature||-40°C to 85°C|
|Optical transceivers port(LC) |
For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.
|Optical transceivers series|
Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface.
Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including:
1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC.
2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP.
3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.
The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
|Industrial Standards |
VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.
|Full MSA Compliance |
High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.
VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.
