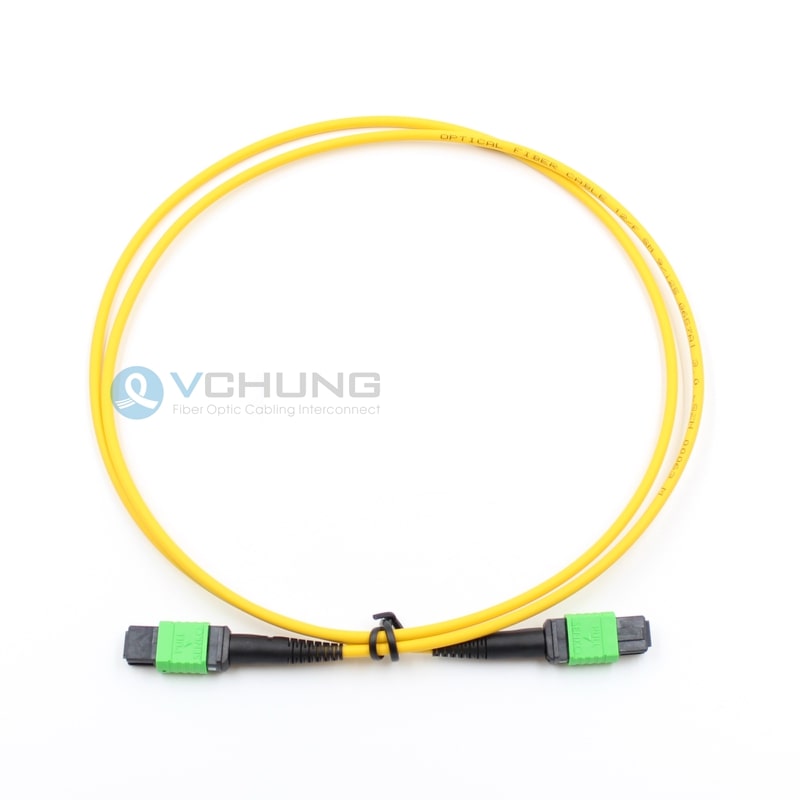

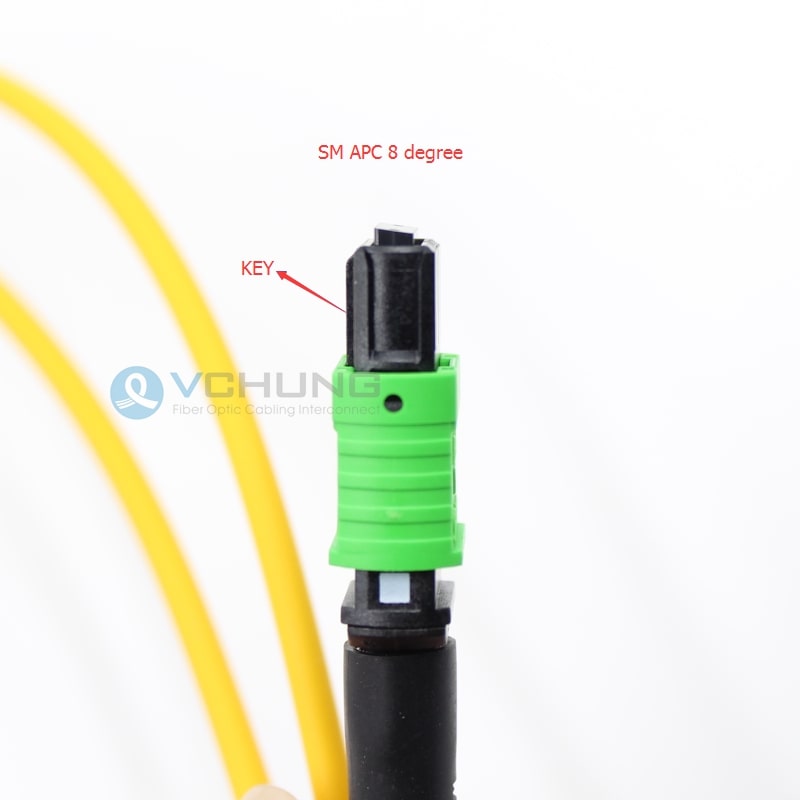

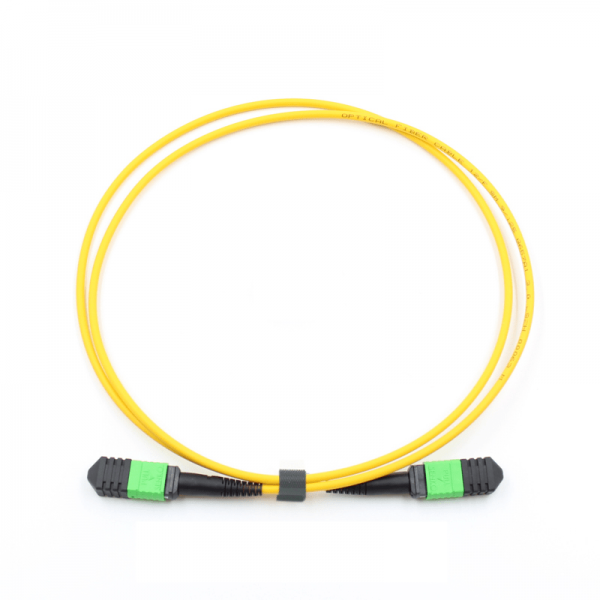

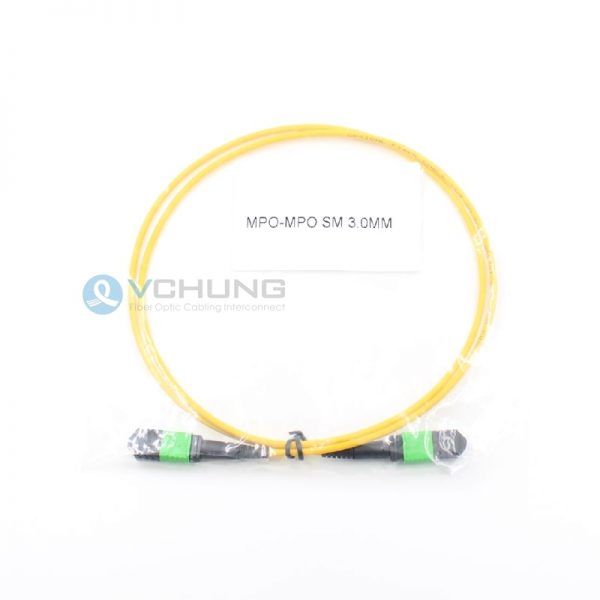

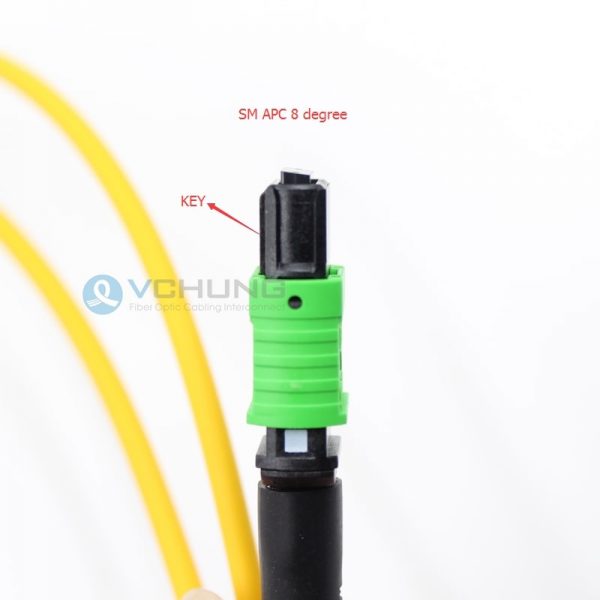

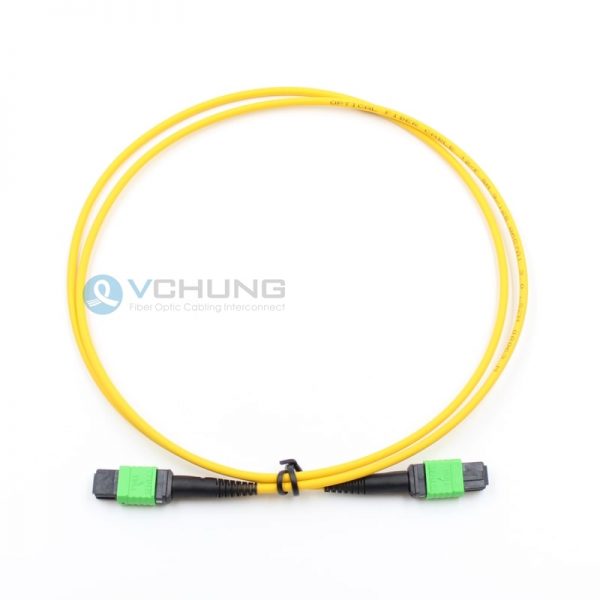

This Trunk cable (also called bundle cable or round cable) MPO-MPO jumpers can be 4 to 24 core fibers, G.652D fiber or G.657A1 fiber. The single-mode MPO jumper is suitable for long distance transmission. MPO connector color is green (Standard insertion loss) or yellow (Low insertion loss) and the end face is APC (8 degree). The single-mode fiber cable is yellow jacket and the material is LSZH. The outer diameter is ∮3.0mm. For the polarity, there are three types: Type-A, Type-B, and Type-C. For the connection between 40G optical modules, which is usually Type-B (Key up – Key up type). MPO male or female connector is available.Used in 100G/400G fiber optical module direct connection and high density data center.
1.High quality ferrule and accurate alignment by PIN and PIN hole.
2.MPO comes in many types and design blueprint can be provided quickly.
3.Standard Loss(IL≤0.7dB) and Low Loss(IL≤0.35dB) insertion loss are available.
4.The Connector end-face can meet the interference index.
5.Connector compliant with IEC 61754-7(Type MPO connector family).
1.High density cabling system.
2.Cabling in communication base station and distribution case.
3.Jumper connection. 40G and 100G system, QSFP module.
4.Optical fiber communication system,CATV,LANs and WANs
|Connector A||MPO Female||Connector B||MPO Female|
|Fiber Mode||SM 9/125um||Test Wavelength||1310/1550nm|
|Polish Type||APC to APC||Minimum Bend Radius||10mm(G.657A1)|
|Insertion Loss||≤0.70dB(0.40dB Typ.)||Return Loss||≥55dB|
|Attenuation at 1310nm||≤0.35dB/KM||Attenuation at 1550nm||≤0.22dB/KM|
|Cable Jacket||LSZH||Cable Jacket O.D||3.0mm|
|Installation Tensile Load||120N||Long-Term Tensile Load||50N|
|Operating Temperature||-20℃ to +70℃||Storage Temperature||-40℃ to +85℃|
|About MPO Connector |
The MPO connectors used are in accordance with the standard IEC 61754-7 and IEC 61754-10, using the international well-known brand connectors. Sufficient SGS report and reliability test report.
|About MPO Insertion Loss|
All MPO fiber patch cord have been 100% double-wavelength tested, ensuring insertion loss of less than 0.70db, typical value is 0.40db, and return loss must be more than 55dB. Also, there is a low loss(IL≤0.35db)connector for customers to choose.
|About Cable Material |
LSZH is one of the most commonly used optic cable in our factory, the higher fire protection grade cable is available, such as OFNP. All cable materials are meet with IEC/CE/UL/Rohs2.0 standards.
|Cable Structure Diagram|
24core bare fiber, kevlar from DuPont company, LSZH material, yellow color jacket, OD.=3.0mm.
Before produce, it is necessary to confirm whether MPO connector is male or female.
Female, without guide PINS Male, with guide PINS
How to confirm the MPO connector what you need is male or female?
|Type1: Connection between MPO and MPO|
Connection between two MPO connectors, which must be one MPO connector is Female and another one must be Male.
|Type2: Connection between MPO and optical module |
You know, All optical modules are self-contained with Guide PIN, it means male MPO connector inside, so when connection between MPO cable and optical module, the MPO connector on cable must be the female connector.
How to choose the polarity about MPO to MPO pre-terminated cable?
According to ANSI-TIA-568-D specifications, there are three types about polarity: type-A, type-B and type-C, show as the figure.
How to realize high density MPO cabling system?
We produce high quality MPO cable which is widely used in high density cabling systems. In addition to MPO Cable, we also provide MPO Cassette and 19′ rack in line with customer needs, for complete the MPO cabling solution.
How does the MPO cable patchcord connect to the switch in 100G system?
The MPO cable patch-cord is directly connected to the 400G optic module. Type-B and Female MPO connector is required. The optic module is connected to the switches directly. Show as the figure.
|Our Quality Control |
We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.
