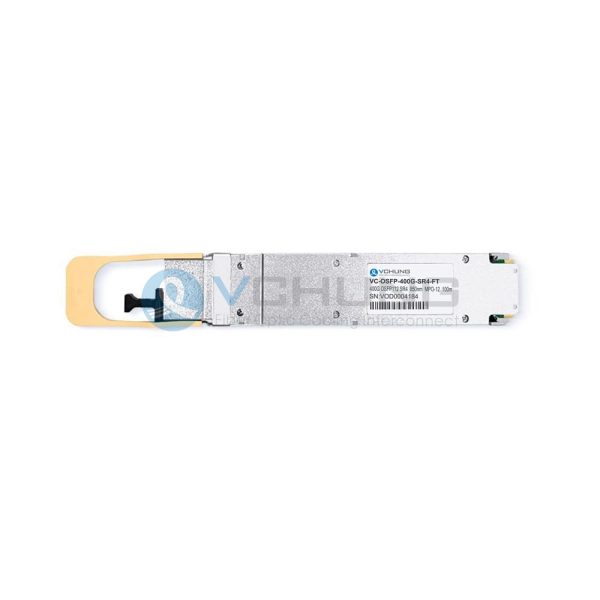

OSFP112-400G-SR4 400G OSFP SR4 Flat Top PAM4 850nm 30m on OM3/50m on OM4 MTP/MPO-12 Multimode Transceivers

Quick Details
Part number: VC-OSFP112-400G-SR4 Connector Type: MPO-12 (APC)
Form Factor:OSFP Flat Top Wavelength: 850nm
Distance:50m Fiber Type:MMF

Model Number: #17463 Category:

Brief Introduction

The Vchung 400Gb/s OSFP optical module. It provides increased port density and total system cost savings. The OSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 106.25Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber. An optical fiber cable with an MTP/MPO-12 connector can be plugged into the OSFP SR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an OSFP MSA-compliant edge type connector. The central wavelengths of all the 4 parallel lanes are 850nm. It contains an optical MPO-12 connector for the optical interface and a 60-pin connector for the electrical interface. Host FEC is required to support up to 100m OM3 multi-mode fiber transmission. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the OSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features

  1. OSFP MSA compliant
  2. 4 parallel lanes on 850nm center wavelength
  3. Compliant to IEEE 802.3bs Specification
  4. Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC
  5. Operating case temperature: 0 to 70oC
  6. 25Gb/s electrical interface (400GAUI-8)
  7. Data Rate 106.25Gbps (PAM4) per channel.
  8. Maximum power consumption 12W
  9. MPO-12 connector
  10. RoHS compliant

Applications

  1. Data Center Interconnect
  2. 400G Ethernet
  3. Infiniband Interconnects
  4. Enterprise Networking
Specifications



Part No. VC-OSFP112-400G-SR4 Form Factor OSFP Flat Top
Distance 30m on OM3/50m on OM4 Wavelength 850nm
Operation Temperature 0 to 70°C (32 to 158°F) Connector MPO-12 (APC)
Voltage 3.3V Cable Type MMF
Extinction Ratio 2.5dB Transmitter Type 850nm VCSEL
Receiver Type PIN TX Power -4.6~+4.0dBm
Receiver Sensitivity < -4.6 dBm Data Rate 425Gbps (4×106.25Gb/s)
Power Consumption < 8.5W Modulation Format 4x 106.25G PAM4
Inbuilt FEC YES Core Size Core Size
Packaging Technology COB CDR (Clock and Data Recovery) TX and RX
DDM/DOM Yes Powerbudget 1.7dB
Application 400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking Protocols 400G InfiniBand NDR, OSFP MSA Rev 5.0、IEEE 802.3ck、IEEE 802.3-2022
