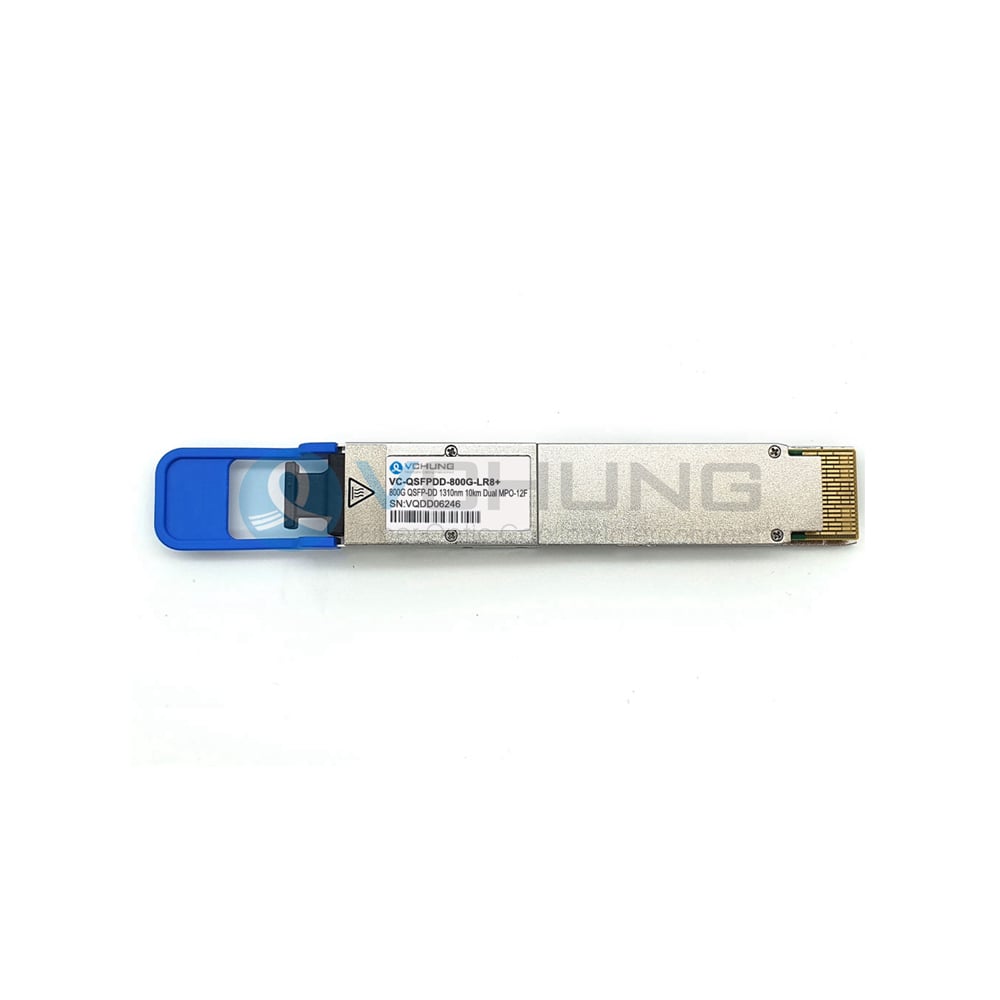

QSFP-DD-800G-LR8+  QSFP-DD 8x100G LR PAM4 1310nm 10km Dual MPO-12 SMF  Transceivers

Quick Details
Part number:VC-QDD-800G-LR8+ Connector Type: Dual MTP/MPO-12
Form Factor:QSFP-DD Wavelength: 1310nm
Distance:10km Fiber Type:SMF

Model Number: #17508 Category:

Brief Introduction

The Vchung QSFP-DD 8x100G LR transceiver module is designed for 800 Gigabit Ethernet links over 10 km of single-mode fiber. The module incorporates 8 parallel channels on 1310nm center wavelength, operating at 106.25G per channel. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with QSFP-DD MSA.


  1. Supports 850Gbps
  2. Single 3.3V Power Supply
  3. Up to 10km over SMF with KP4 FEC supported at the Host side
  4. Dual MPO-12 connector
  5. 25Gbps (PAM4) electrical interface
  6. PIN and TIA array on the receiver side
  7. Power dissipation < 18W
  8. Safety Certification: TUV/UL/FDA*1
  9. RoHS Compliant
  10. Application for 8x100G Ethernet, 2x400G Ethernet, 1x800G Ethernet


  1. 800G Ethernet,
  2. Data Center Interconnect,
  3. Infiniband Interconnects


Part No. VC-QDD-800G-LR8+ Form Factor QSFP-DD
Distance 10km Wavelength 1310nm
Operation Temperature 0 to 70°C (32 to 158°F) Connector Dual MTP/MPO-12
Voltage 3.3V Cable Type SMF
DDM Yes Transmitter Type EML
Receiver Type PIN TX Power -1.9~+4.8dBm
Receiver Sensitivity < -8.2dBm Powerbudget 6.3dB
Maximum Power < 18W Data Rate 8x100G 800GbE
CDR (Clock and Data Recovery) TX and RX Built-in DSP Modulation Format PAM4
Extinction Ratio >3.5dB Protocols QSFP-DD MSA, IEEE 802.3bs

QSFP-DD-800G-LR8+  QSFP-DD 8x100G LR PAM4 1310nm 10km Dual MPO-12 SMF  TransceiversOptical transceivers port(LC)

For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.

Optical transceivers series

Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface.
Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including:
1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC.
2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP.
3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.
QSFP-DD-800G-LR8+  QSFP-DD 8x100G LR PAM4 1310nm 10km Dual MPO-12 SMF  Transceivers


The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
QSFP-DD-800G-LR8+  QSFP-DD 8x100G LR PAM4 1310nm 10km Dual MPO-12 SMF  Transceivers

QSFP-DD-800G-LR8+  QSFP-DD 8x100G LR PAM4 1310nm 10km Dual MPO-12 SMF  TransceiversIndustrial Standards

VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.

QSFP-DD-800G-LR8+  QSFP-DD 8x100G LR PAM4 1310nm 10km Dual MPO-12 SMF  TransceiversFull MSA Compliance

High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.

Quality assurance

VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.
QSFP-DD-800G-LR8+  QSFP-DD 8x100G LR PAM4 1310nm 10km Dual MPO-12 SMF  Transceivers



This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
