Brief Introduction

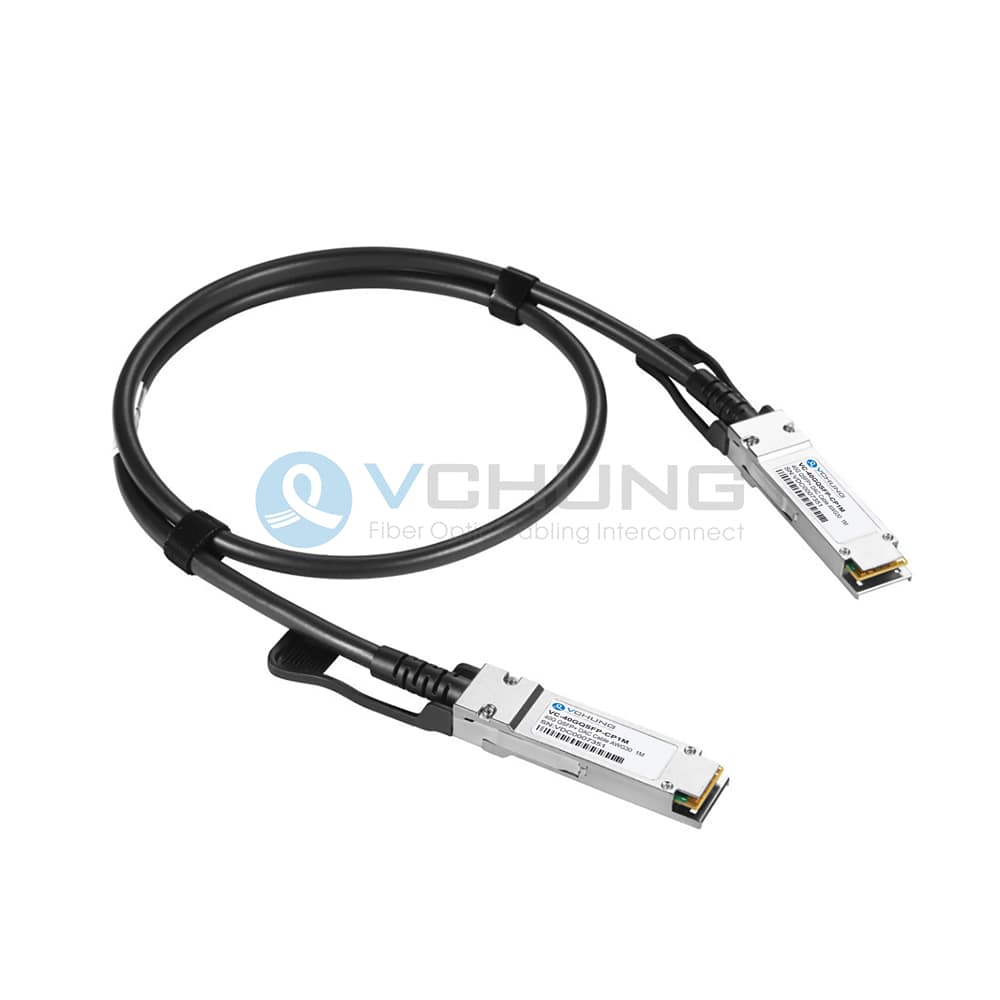

QSFP-H40GB-CUxxM -VC QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4×10 Gb/s per channel) specifications.
Features
1. 4-Channel Full-Duplex Passive Copper Cable Transceiver • Support for multi-gigabit data rates: 1Gb/s – 10.3Gb/s (per channel) • Maximum aggregate data rate: 41.2Gb/s
2.Wire AWG: AWG30/AWG26/AWG24
3. AC coupling of PECL signals
4.All-metal housing for superior EMI performance
5.Available lengths (in meters): 0.5, 1, 2, 3… • Commercial temperature range(COM): 0 to 70°C
6.Single 3.3V power supply
7. Low power consumption: less than 2W
8.High-Density QSFP 38-PIN Connector • Shielded copper twinaxial design for reduced skew rate and crosstalk
9.Compliant QSFP MSA specifications
10.Compliant with industry-standard QSFP+ form factor SFF-8436
Applications
1. InfiniBand QDR (4 x 10G), DDR (4 x 5G) and SDR (4 x 2.5G) interconnects
2. 10G/40G Ethernet (10G/40GbE) • 2G/4G/ 8G/ 10G Fibre Channel • Networked storage systems
3.External storage systems
4.Data Center networking
5.Hubs, Switches, Routers, Servers
Specifications
OEM Part Number | QSFP-H40GB-CUxxM-VC | Form Factor | QSFP DAC Cable |
Connector Type | QSFP+ to QSFP+ | Cable Type | Twinax |
Passive or actively equalized | Passive | Data Rate | 40Gb/s |
Cable length | 0.5M to 7M available | Wire Gauge | 30AWG; 26AWG;24AWG |
Power Supply Voltage | 3.3V | Jacket Material | PVC(OFNR) |
Minimum cable bend radius | 35 mm | Cable impedance | 100 Ω |
Protocols | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel | Operating Temperature | 0℃ to +70℃ |
