Brief Introduction

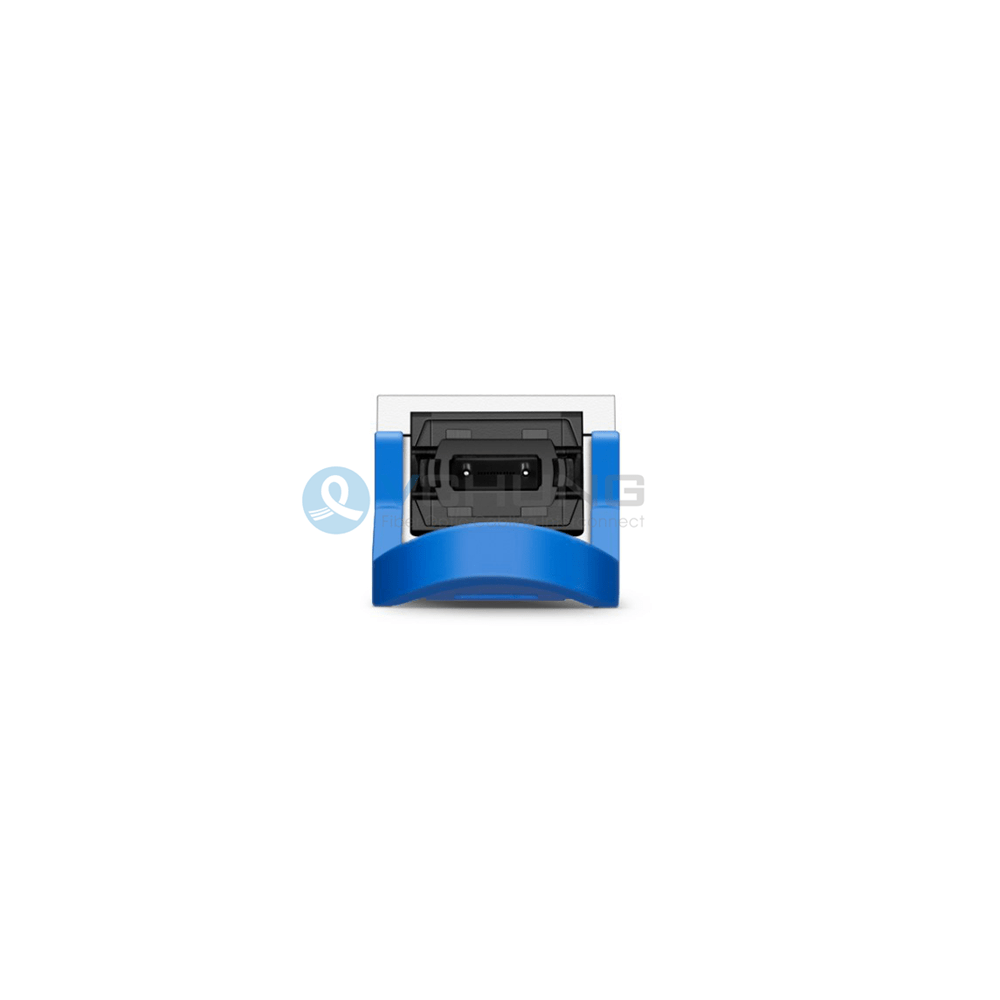

The Vchung 100G QSFP28 PSM4 is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 2km of single mode fiber. An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an MSA-compliant 38-pin edge type connector.The module operates with single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules. A 2-wire serial interface is available to send and receive more complex control
signals, and to receive digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.
Features
- 4 independent full-duplex channels
- Up to 28Gb/s data rate per channel
- QSFP28 MSA compliant
- Compliant to IEEE 802.3bm 100GBASE PSM4
- Up to 500m reach for G.652 SMF
- Maximum power consumption 3.5W
- Single +3.3V power supply
- Operating case temperature: 0 to 70oC
- RoHS-6 compliant
Applications
- 100G Ethernet links
- Infiniband QDR and DDR interconnects
- Data center and Enterprise networking
| Part No. | VC-QSFP28-100G-PIR4 | Form Factor | QSFP28 |
| Distance | 500M | Wavelength | 1310nm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Connector | MTP/MPO-12 |
| Voltage | 3.3V | Cable Type | SMF |
| DDM | Yes | Transmitter Type | 4x DFB |
| Receiver Type | PIN | TX Power | -5.5~+2.0dBm |
| Receiver Sensitivity | <-10.2dBm | Protocols | MSA Compliant |
| Warranty | 3 years | Data Rate | 100G/ps |
