Brief Introduction

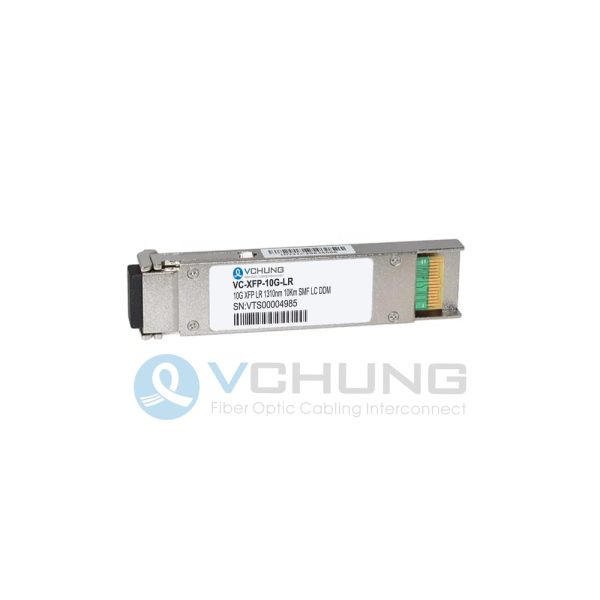

Vchung’s 10Gbps 10km XFP transceiver comply with XFP MSA, and can support diverse applications for SDH/Sonet equipment including FEC (9.95Gb/s to 10.7Gb/s),as well as Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) applications. The high performance uncooled 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for SONET /SDH and Ethernet applications at up to 10km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Features
1. Hot-pluggable XFP footprint
2. Supports 9.95Gbps to 11.1Gbps bit rates
3. Compliant with IEEE 802.3ae 10GBASE-LR/LW
4. Uncooled 1310nm DFB transmitter, PIN photo-detector
5. Distance up to 10km on single mode fiber
6. Duplex LC connector
7. Built-in digital diagnostic functions
8. Single 3.3V power supply
9. Very low EMI and excellent ESD protection
10. ROHS compliant and lead-free
Applications
1.10GBASE-LR/10GBASE-LW Ethernet
2.10G Fiber Channel
3.10GbE Data Center Switches and Routers
Specifications
| PN | VC-XFP-10G-LR | Data Rate | 10Gbps |
| Wavelength | 1310nm | Reach | 10km |
| Media | Single-Mode | Device Type | XFP LR |
| Connector Type | LC duplex | DDMI | with |
| Optical Components | DFB 1310nm | Power Supply Voltage | 3.3V |
| Output Power | -6~0dBm | Receiver Sensitivity | <-14.5dBm |
| Compatiblity | MSA Compliant | Operating Temperature | 0℃ to +70℃ |
 | Optical transceivers port(LC) For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals. |
| Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4. |  |
| Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied. |  |
 | Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process. |
 | Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally. |
| Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service. |  |
