Description

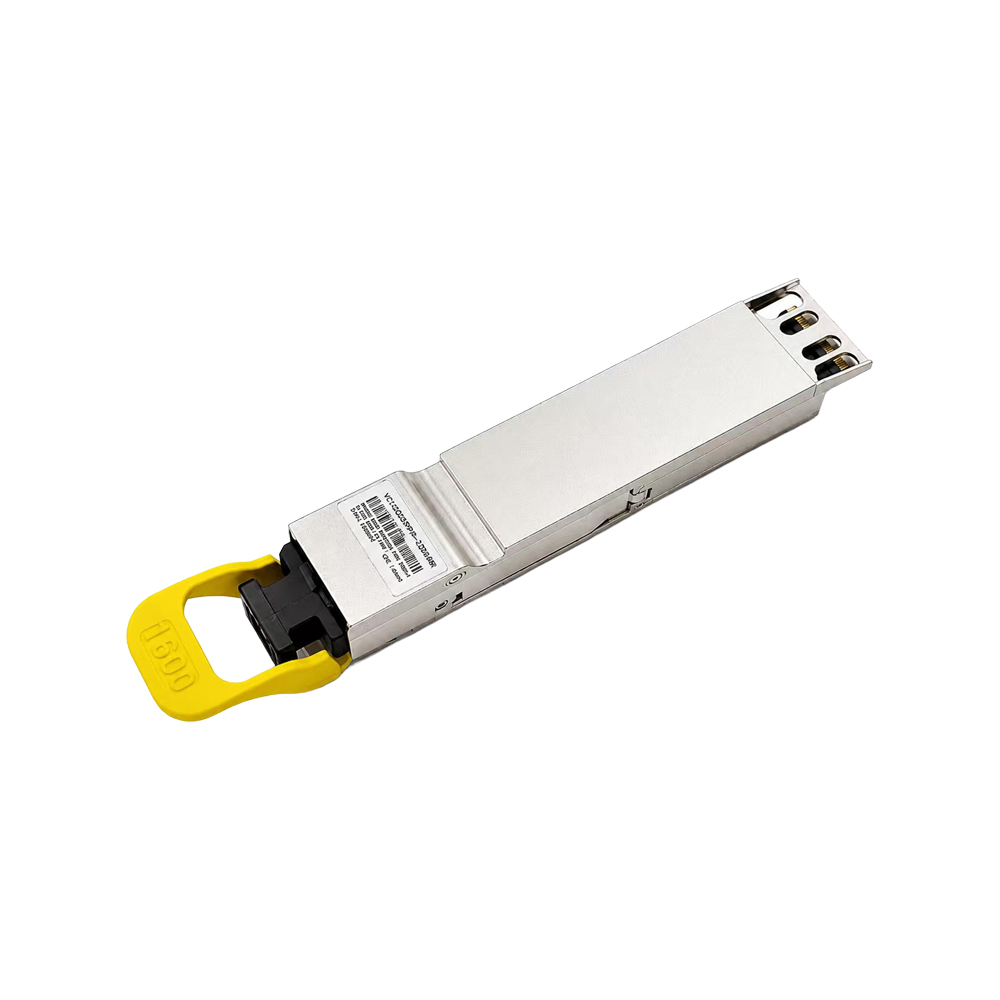

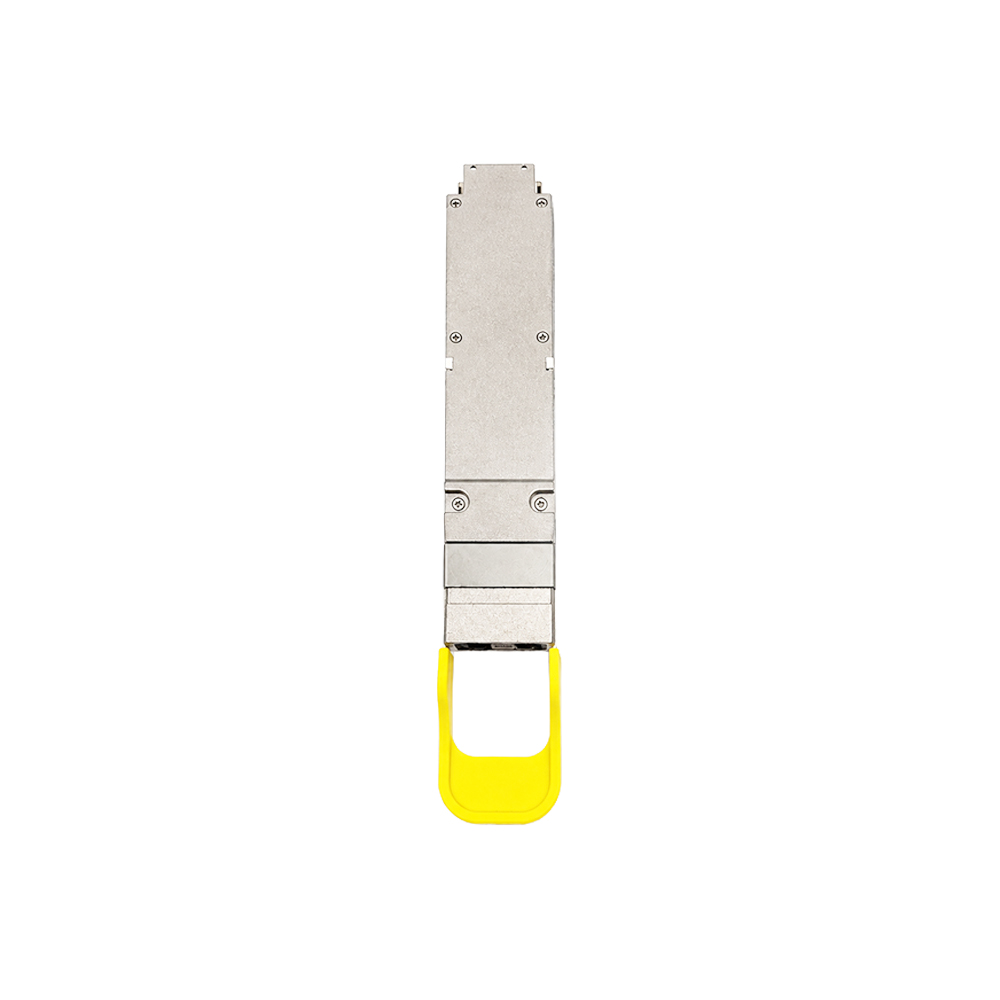

This product is an 1600Gb/s Octal Small Form-factor Pluggable (OSFP) optical module with top closed fin designed for 500m optical communication applications. The module converts 8 channels of 200Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals via integrated silicon photonics optical path, each capable of 200Gb/s operation for an aggregate data rate of 1600Gb/s. Reversely, on the receiver side, the module converts 8 channels of parallel optical signals of 200Gb/s each channel for an aggregate data rate of 1600Gb/s into 8 channels of 200Gb/s (PAM4) electrical output data.
An optical fiber cable with dual MPO-12 connector can be plugged into the OSFP112 2x DR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an OSFP MSA-compliant edge type connector.
Features
- OSFP form factor hot pluggable
- CMIS compliance
- 8 channels of 200G-PAM4 electrical and optical parallel lanes
- DualOptical port of MPO-12/APC
- Top closed fin
- 500mmaximum reach via single mode fiber
- 32 Watts max
- Case temperature range of 20°C to 70°C
Applications
- 6Tb/s Ethernet
- 2x800Gb/s Ethernet
- 4x400Gb/s Ethernet
- 8x200Gb/s Ethernet
Specifications
| Part No. | VC-OSFP224-2DR4 | Form Factor | Twin-port OSFP RHS/Flat Top |
| Distance | 500m | Wavelength | 1310nm |
| Transmitter Type | EML | Connector | Dual MTP/MPO-12 APC |
| Receiver Type | PIN | Media | SMF |
| TX Power | -3.3~4dBm | Minimum Receiver Power | -6.3dBm |
| Power Budget | 3dB | Receiver Overload | 4.0dBm |
| Max. Power Consumption | 30W | Extinction Ratio | ≥3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C |
| Modulation (Electrical)
| 8x 200G-PAM4
| Modulation (Optical) | Dual 4x 200G-PAM4 |
