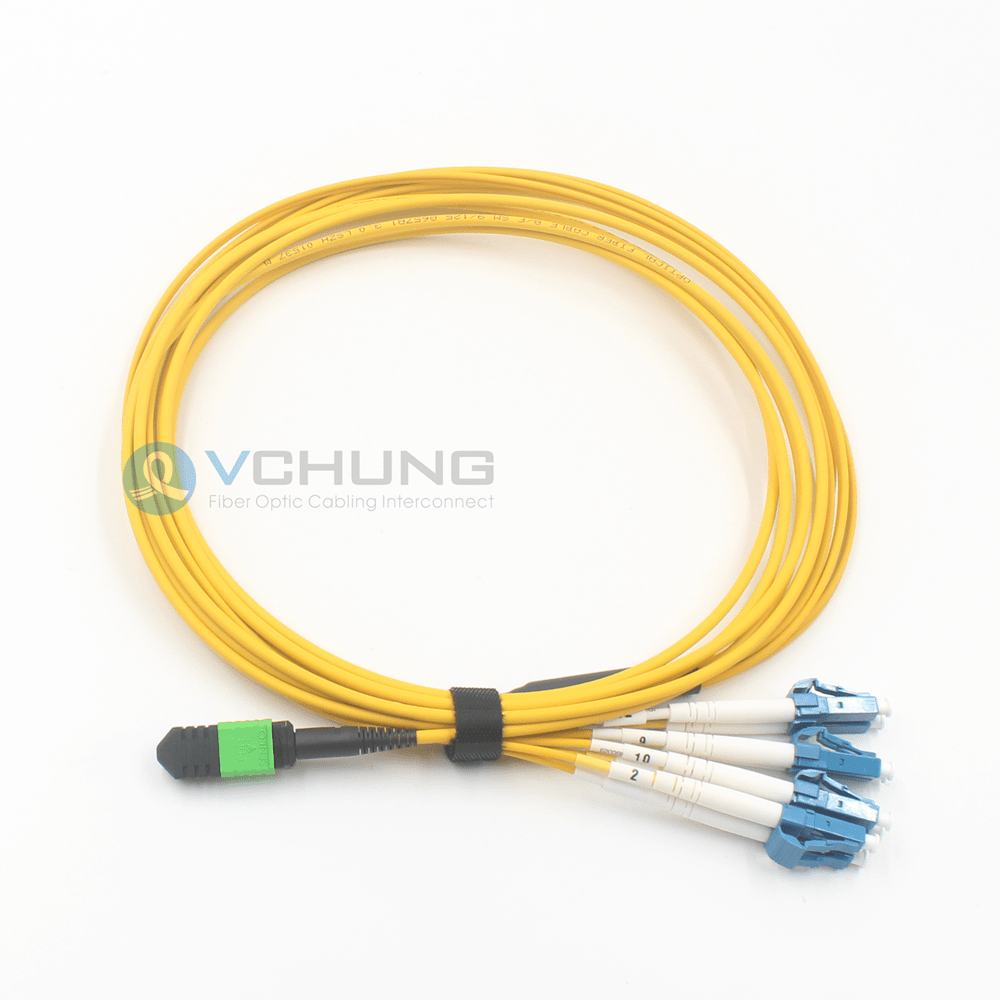

SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

Quick Details
Cores number: 8 Male/Female: MPO Female
Fiber Type: Single-mode Cable Type: 3.0mm breakout cable
Jacket Material: LSZH MPO/IL<0.70dB; LC/IL<0.30dB

Model Number: #21504SL Category:

Brief Introduction

8fibers single-mode MPO-LC fan-out patch-cord usually used for 40G QSFP+ module to 4x10G SFP module, generally use 12 fibers MPO connector on both sides of the four channels for Receive and Transmit signal, that is four channels for Receive signal and other four channels for transmit signal. MPO connector and duplex LC connector are respectively connected with the 40G QSFP+ module and 10G SFP module. Also, 12fibers, 24fibers is available.

Features

1.High quality ferrule and accurate alignment by PIN and PIN hole.
2.MPO comes in many types and design blueprint can be provided quickly.
3.Standard Loss(IL≤0.7dB) and Low Loss(IL≤0.35dB) insertion loss are available.
4.MPO Connector compliant with IEC 61754-7.

Applications

1.High density cabling system.
2.Cabling in communication base station and distribution case.
3.Jumper connection. Fiber optics system for 40G to 4x10G.
4.Optical fiber communication system,CATV,LANs and WANs.

Product Video

Specifications

Connector A MPO Female Connector B LC Duplex
Fiber Mode Single-mode 9/125um Test Wavelength 1310/1550nm
Polish Type APC to UPC Minimum Bend Radius 10mm(G.657A1)
MPO Insertion Loss ≤0.70dB(0.40dB Typ.) MPO Return Loss ≥55dB
LC  Insertion Loss ≤0.30dB(0.15dB Typ.) LC Return Loss ≥50dB
Attenuation at 1310nm ≤0.35dB/KM Attenuation at 1550nm ≤0.22dB/KM
Cable Jacket LSZH Cable Jacket O.D 3.0mm
Installation Tensile Load 120N Long-Term Tensile Load 50N
Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +85℃

Detailed Images

SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated


SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-TerminatedAbout MPO Connector

The MPO connectors used are in accordance with the standard IEC 61754-7 and IEC 61754-10, using the international well-known brand connectors. Sufficient SGS report and reliability test report.



About MPO Insertion Loss

All MPO fiber patch cord have been 100% double-wavelength tested, ensuring insertion loss of less than 0.70db, typical value is 0.40db, and return loss must be more than 55dB. Also, there is a low loss(IL≤0.35db)connector for customers to choose.
SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-TerminatedAbout Cable Material

LSZH is one of the most commonly used optic cable in our factory, the higher fire protection grade cable is available, such as OFNP. All cable materials are meet with IEC/CE/UL/Rohs2.0 standards.

Cable Structure Diagram

12core bare fiber, kevlar from DuPont company, LSZH material, yellow color jacket, OD.=3.0mm.
SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

For the LC connector, there are several types for customers to choose.

The MPO-LC breakout cable acts as a bridge for 40G to 10G connections. The 40G QSFP+ optical transceiver is directly connected to the MPO connector, and the 10G SFP optical transceiver is connected to the duplex LC connector.

 SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

 SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

Before produce, it is necessary to confirm whether MPO connector is male or female.

SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

Female, without guide PINS                                                      Male, with guide PINS


How to confirm the MPO connector what you need is male or female?

Type1: Connection between MPO and MPO
Connection between two MPO connectors, which must be one MPO connector is Female and another one must be Male.
SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-TerminatedType2: Connection between MPO and optical module
You know, All optical modules are self-contained with Guide PIN, it means male MPO connector inside, so when connection between MPO cable and optical module, the MPO connector on cable must be the female connector.

How to realize high density MPO cabling system?

We produce high quality MPO cable which is widely used in high density cabling systems. In addition to MPO Cable, we also provide MPO Cassette and 19′ rack in line with customer needs, for complete the MPO cabling solution.

 SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

How does the MPO cable patchcord connect to the switch in 40G system?

The MPO cable patch-cord is directly connected to the QSFP-40G-SR4 optic module. Type-B and Female MPO connector is required. The optic module is connected to the switches directly. Show as the figure.

 SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

Packing

NOTE: The following images are for reference only in their packaging style. If the MPO cable is long and big, which will be packing with plastic wrap.

SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated


SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-TerminatedOur Quality Control

We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.

Learn More...



8C MPO-MPO SINGLE-MODE DATASHEET

This DATASHEET is 8-Core MPO connector to LC duplex connector pre-terminated breakout cable, single-mode 9/125um fiber 3.0mm trunk fan-out cable LSZH yellow jacket

SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated SingleMode G.657A1 MPO Cable With Fan-Out Kits to LC Duplex Connector Pre-Terminated

This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com

Q1. What is your terms of packing?

Answer: A: Generally, we pack our goods in ziplock bag and brown cartons. If you have special requirements, please let us know and we will try our best to cooperate with you.

Q2. What is your terms of payment?

Answer: A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

Answer: A: EXW, FAS, FOB, FCA, CFR, CPT, CIF, CIP.

Q4. How about your delivery time?

Answer: A: Generally, it will take 2 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

Answer: A: Yes, we can produce by your samples or technical drawings.

Q6. What is your sample policy?

Answer: A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

Answer: A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?

Answer: A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
