12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U Rack

Quick Details
Cores number: 12~288 Cassette core: 12 or 24
Fiber Type: MMF OR  SMF Cassette Adapter: LC duplex
1U rack cores: 96-core 3U rack cores: 288-core

Model Number: #21701 Category:

Brief Introduction

MPO cassette are generally used to install in the 1U or 3U panel (rack), MPO-LC harness patch cords, LC adapters, MPO adapters are connected and installed in the cassette, all of them have mounted and tested, can be used directly. MPO cassette has 12 core and 24 core. This is a very popular product of MPO cabling in data center..

Features

1.High quality ferrule and accurate alignment by PIN and PIN hole.
2.MPO comes in many types and design blueprint can be provided quickly.
3.Standard Loss(IL≤0.7dB) and Low Loss(IL≤0.35dB) insertion loss are available.
4.The Connector end-face can meet the interference index.
5.Connector compliant with IEC 61754-7(Type MPO connector family).

Applications

1.High density cabling system.
2.Cabling in communication base station and distribution case.
3.Jumper connection. 40G and 100G system, QSFP module.
4.Optical fiber communication system,CATV,LANs and WANs

Specifications

Connector A MPO Female Connector B LC
Fiber Mode MM50/125um OM3 Test Wavelength 850/1300nm
Polish Type PC to PC Minimum Bend Radius 10mm
Insertion Loss ≤0.70dB(0.40dB Typ.) Return Loss ≥25dB
Attenuation at 850nm ≤2.3dB/KM Attenuation at 1300nm ≤0.6dB/KM
Cable Jacket LSZH Cable Jacket O.D 3.0mm
Installation Tensile Load 120N Long-Term Tensile Load 50N
Operating Temperature -20℃ to +70℃ Storage Temperature -40℃ to +85℃

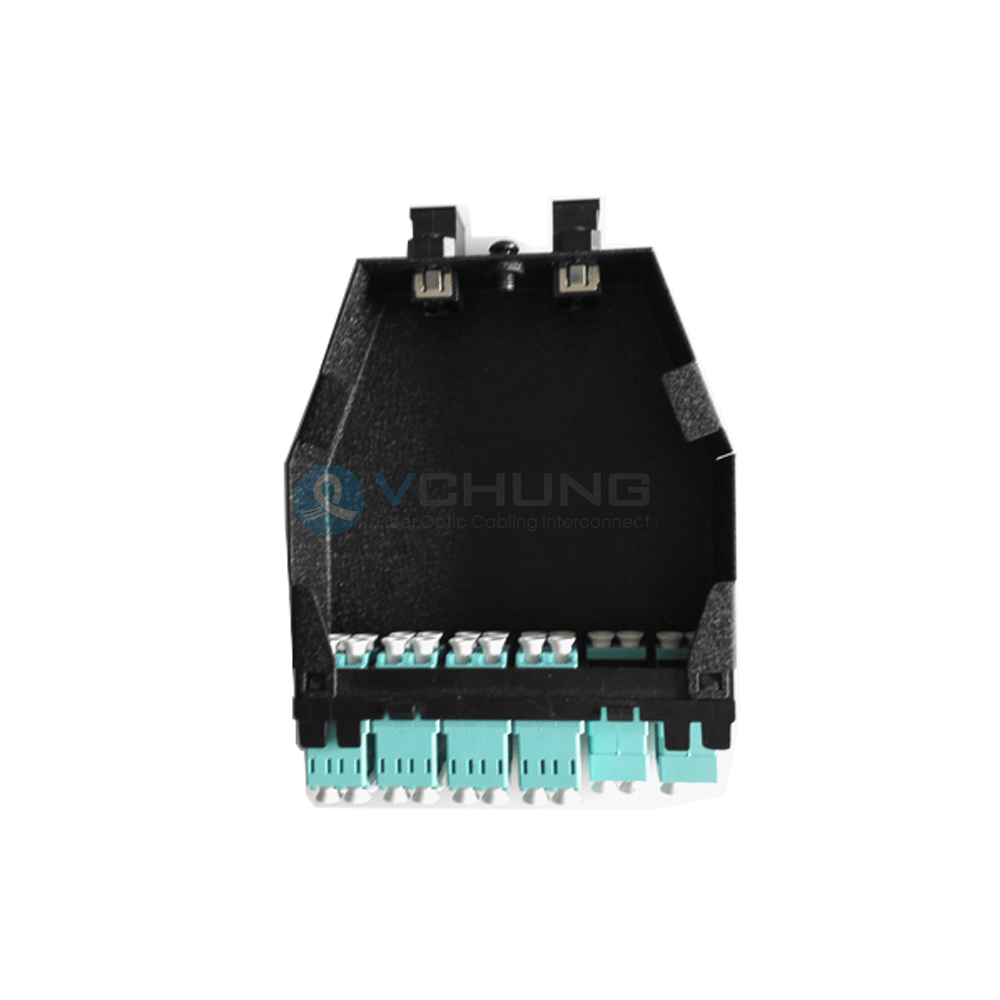

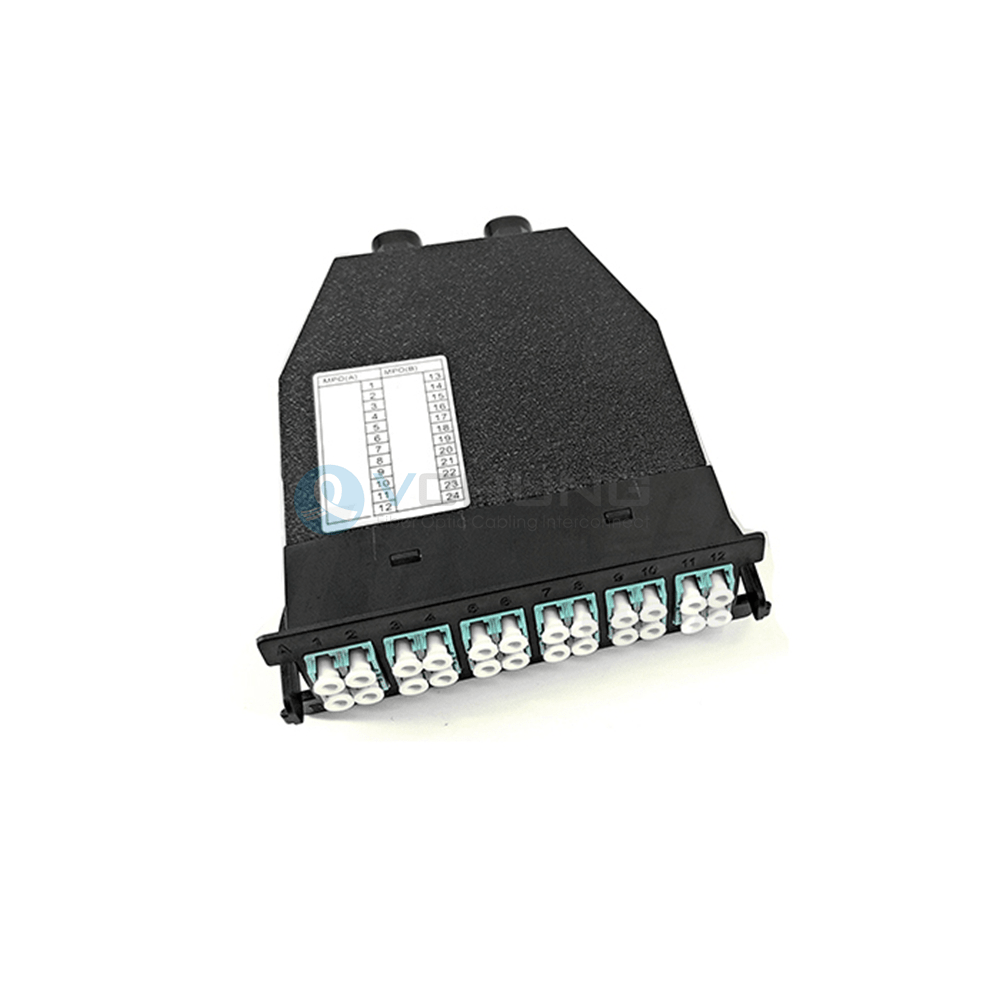

Detailed Images

12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U Rack


12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U RackAbout MPO Connector

The MPO connectors used are in accordance with the standard IEC 61754-7 and IEC 61754-10, using the international well-known brand connectors. Sufficient SGS report and reliability test report.

About MPO Insertion Loss

All MPO fiber patch cord have been 100% double-wavelength tested, ensuring insertion loss of less than 0.70db, typical value is 0.30db, and return loss must be more than 25dB. Also, there is a low loss(IL≤0.35db)connector for customers to choose.
12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U Rack



How to choose fiber? What is the difference about Several type multimode fiber?

OM4 and OM3 fiber are Gigabit fiber, various performance indexes is better than OM1 and OM2.

Fiber Type Core/Cladding (um) Light Source Bandwidth @850nm OFL (MHZ·KM) Bandwidth @850nm EMB (MHZ·KM) 10Gpbs Ethernet 10G BASE SR/LR 40Gpbs Ethernet 40G 100Gpbs Ethernet 100G BASE SR10/IR4
OM1 62.5/125 LED 200 Nonsupport 33M(SR) Nonsupport Nonsupport
OM2 50/125 LED 500 Nonsupport 82M(SR) Nonsupport Nonsupport
OM3/150 50/125 VSCEL or LED 700 950 150M(SR) 50M(SR4) 50M(SR10)
OM3/300 50/125 VSCEL or LED 1500 2000 300M(SR) 100M(SR4) 100M(SR10)
OM4 50/125 VSCEL or LED 3500 4700 500M(SR) 150M(SR4) 150M(SR10)

OFL= Over Filled Launch;  EMB=Effective Modal Bandwidth


Before produce, it is necessary to confirm whether MPO connector is male or female.

12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U Rack

Female, without guide PINS                                                      Male, with guide PINS


How to realize high density MPO cabling system?

We produce high quality MPO cable which is widely used in high density cabling systems. In addition to MPO Cable, we also provide MPO Cassette and 19′ rack in line with customer needs, for complete the MPO cabling solution.

12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U Rack

12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U Rack

12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U RackOur Quality Control

We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods.

Learn More...



MPO Cassette and panel spec. DATASHEET

This is 24 to 96-fibers MPO Cassette and panel spec. DATASHEET

12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U Rack12Cores or 24Cores MPO Male to LC Harness Patchcord 24 Ports MPO Cassette Panel Mounted 1U Rack

This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
