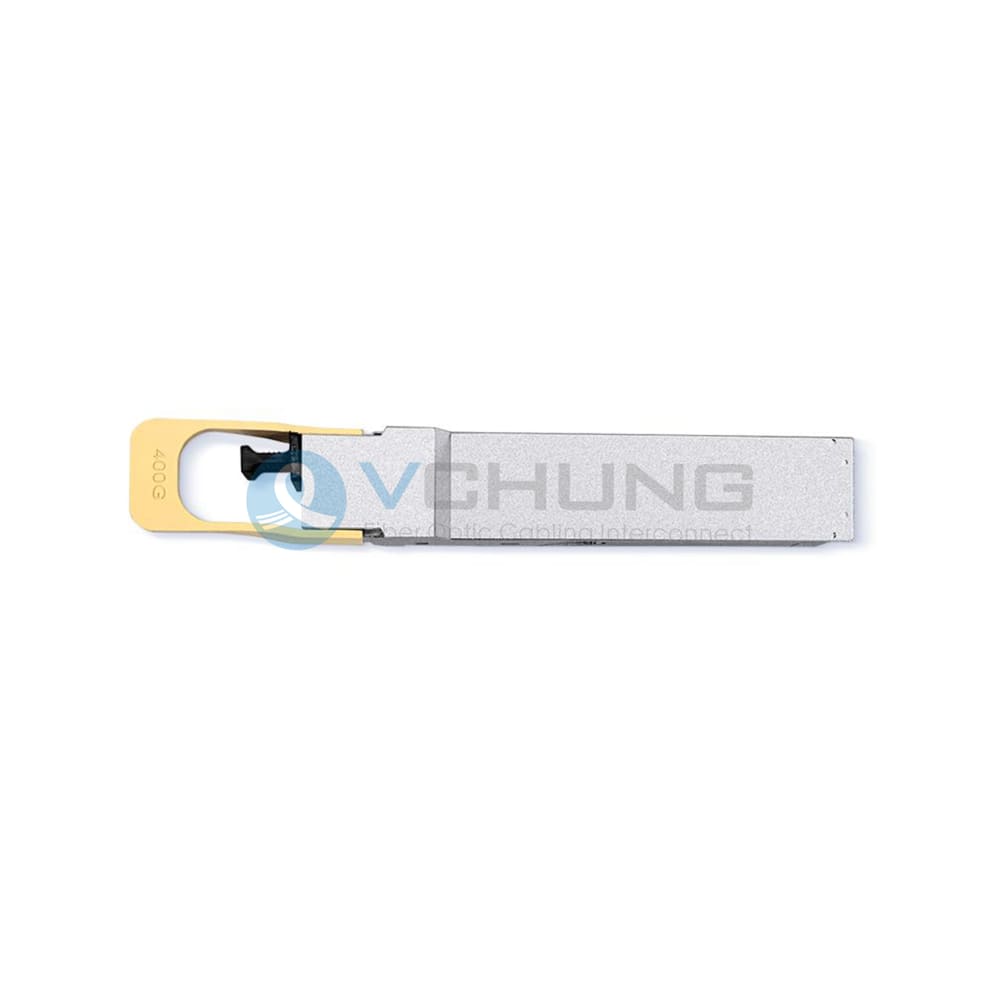

NVIDIA InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver Module

Quick Details
Part number: MMA4Z00-NS400 Connector Type: MPO-12 (APC)
Form Factor:OSFP Flat Top Wavelength: 850nm
Distance:50m Fiber Type:MMF

Model Number: #17460 Category:

Brief Introduction

The NVIDIA InfiniBand MMA4Z00-NS400 Compatible OSFP Optical Transceiver is an InfiniBand 400Gb/s Single-port OSFP, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Short Reach 4-channel (SR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using OM4 multimode fibers. It is qualified for use in InfiniBand NDR end-to-end systems.
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in ConnectX-7/OSFP adapters linked to Twin-port transceivers in 2x400G IB switches.

Features

  1. OSFP MSA compliant
  2. 4 parallel lanes on 850nm center wavelength
  3. Compliant to IEEE 802.3bs Specification
  4. Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC
  5. Operating case temperature: 0 to 70oC
  6. 25Gb/s electrical interface (400GAUI-8)
  7. Data Rate 106.25Gbps (PAM4) per channel.
  8. Maximum power consumption 12W
  9. MPO-12 connector
  10. RoHS compliant

Applications

  1. Data Center Interconnect
  2. 400G Ethernet
  3. Infiniband Interconnects
  4. Enterprise Networking
Specifications



Part No. MMA4Z00-NS400 Form Factor OSFP Flat Top
Distance 30m on OM3/50m on OM4 Wavelength 850nm
Operation Temperature 0 to 70°C (32 to 158°F) Connector MPO-12 (APC)
Voltage 3.3V Cable Type MMF
Extinction Ratio 2.5dB Transmitter Type 850nm VCSEL
Receiver Type PIN TX Power -4.6~+4.0dBm
Receiver Sensitivity < -4.6 dBm Data Rate 425Gbps (4×106.25Gb/s)
Power Consumption < 8.5W Modulation Format 4x 106.25G PAM4
Inbuilt FEC YES Core Size Core Size
Packaging Technology COB CDR (Clock and Data Recovery) TX and RX
DDM/DOM Yes Powerbudget 1.7dB
Application 400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking Protocols 400G InfiniBand NDR, OSFP MSA Rev 5.0、IEEE 802.3ck、IEEE 802.3-2022

NVIDIA InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver ModuleOptical transceivers port(LC)

For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.

Optical transceivers series

Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface.
Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including:
1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC.
2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP.
3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.
NVIDIA InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver Module

Compatibility

The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
NVIDIA InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver Module

NVIDIA InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver ModuleIndustrial Standards

VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.

NVIDIA InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver ModuleFull MSA Compliance

High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.

Quality assurance

VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.
NVIDIA InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver Module





This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
