Brief Introduction

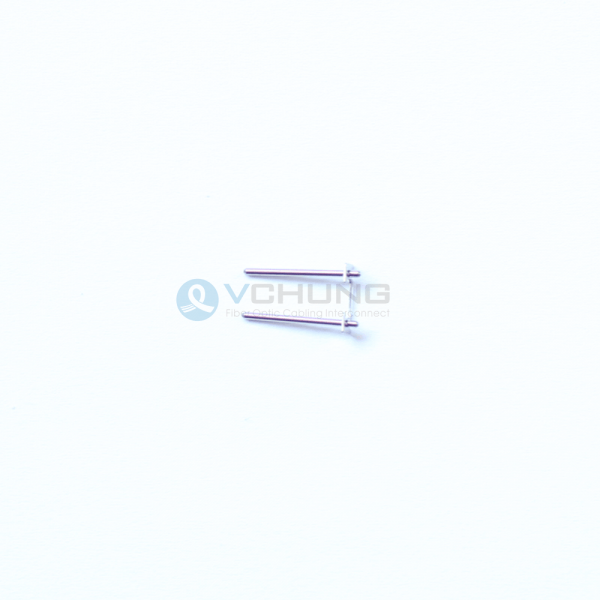

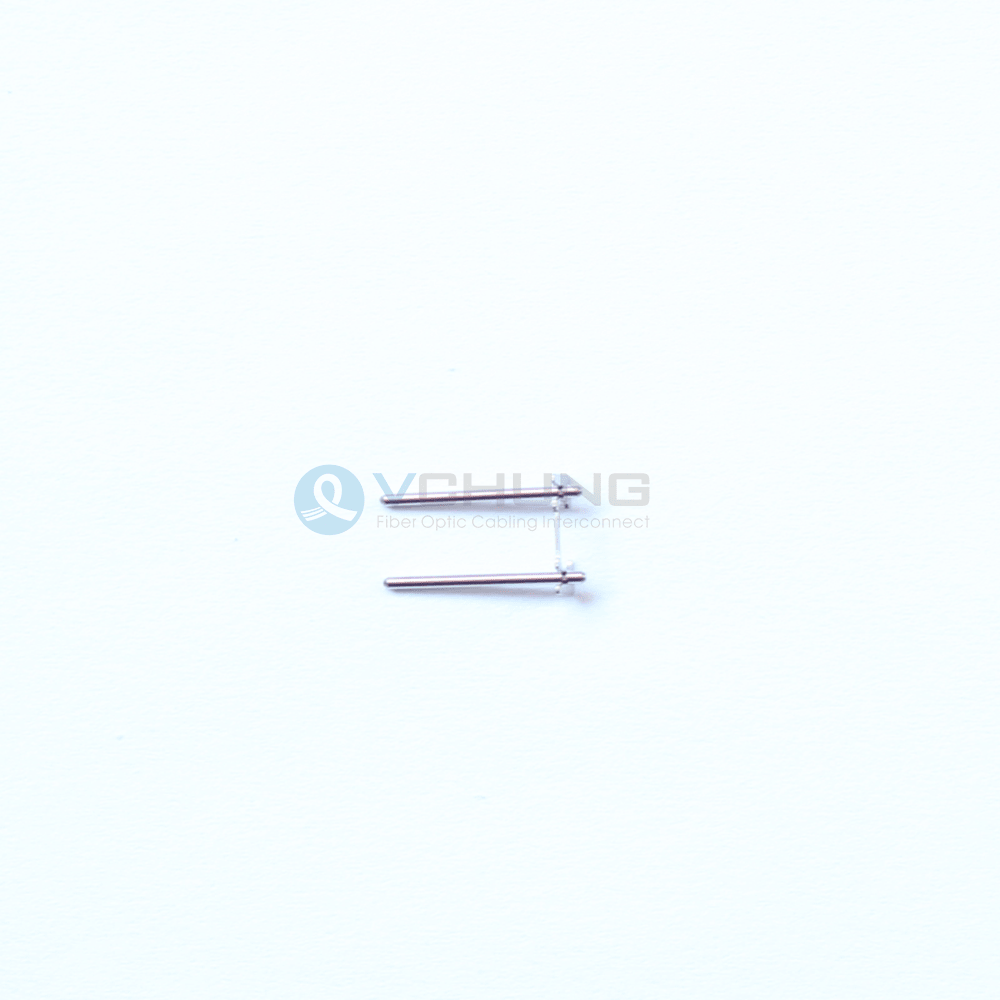

The performance of any MT based connector is only as good as the guide pin used in the mating process. Precision alignment is achieved with patented guide pins combined with the tightly controlled guide pin holes on MT ferrules. Vchung offers MT guide pins in several different configurations for use in a variety of applications, such as multimode, single mode, single mode low loss. NOTE: SL=Standard Loss, IL≤0.70dB; LL=Low Loss, IL≤0.35dB.
Features
- Ultra high precision, Japan material.
- Meet the neutral salt spray test for 168 hours.
- Various types, the Keeper thickness is available in 3.0mm/2.5mm/0.25mm.
- Can be customized production.
Applications
- 40G/100G/400G optical transceivers.
- MPO/MTP fiber jumper
- Connection between MT ferrules
- Connection between MPO/MTP connector
Specifications

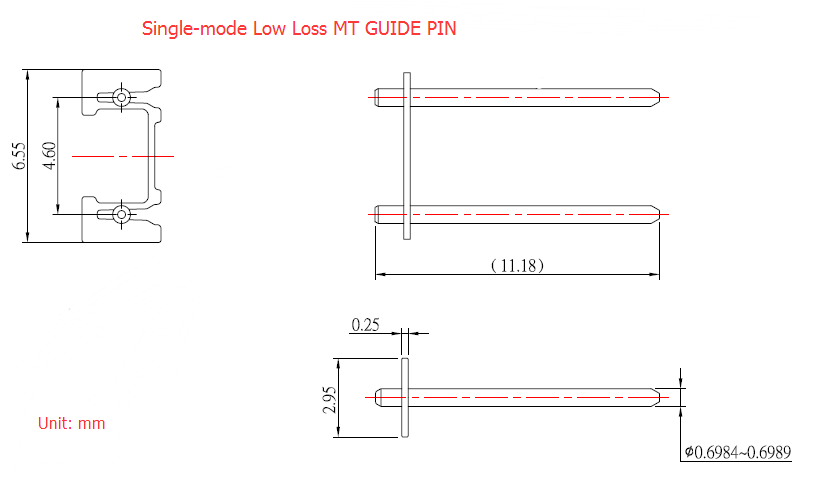

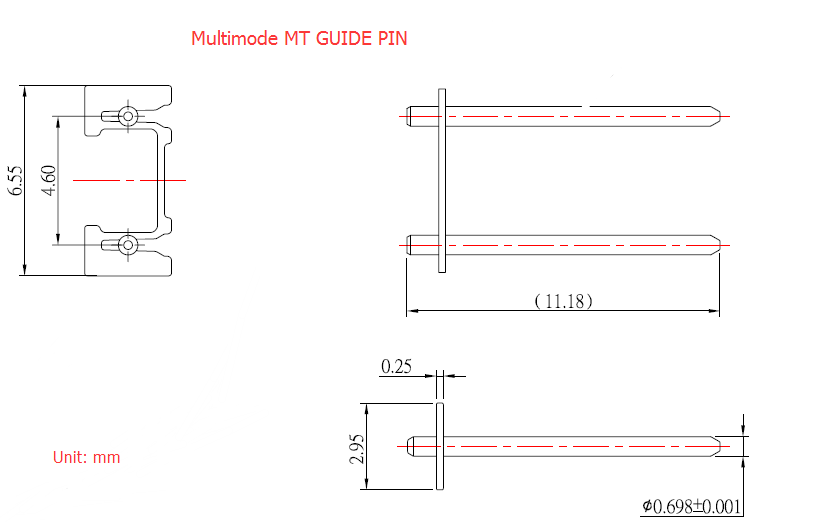

For GUIDE PIN, Multimode Standard Loss, Single-mode Standard Loss, Multimode Low Loss, Single-mode Low Loss are available.

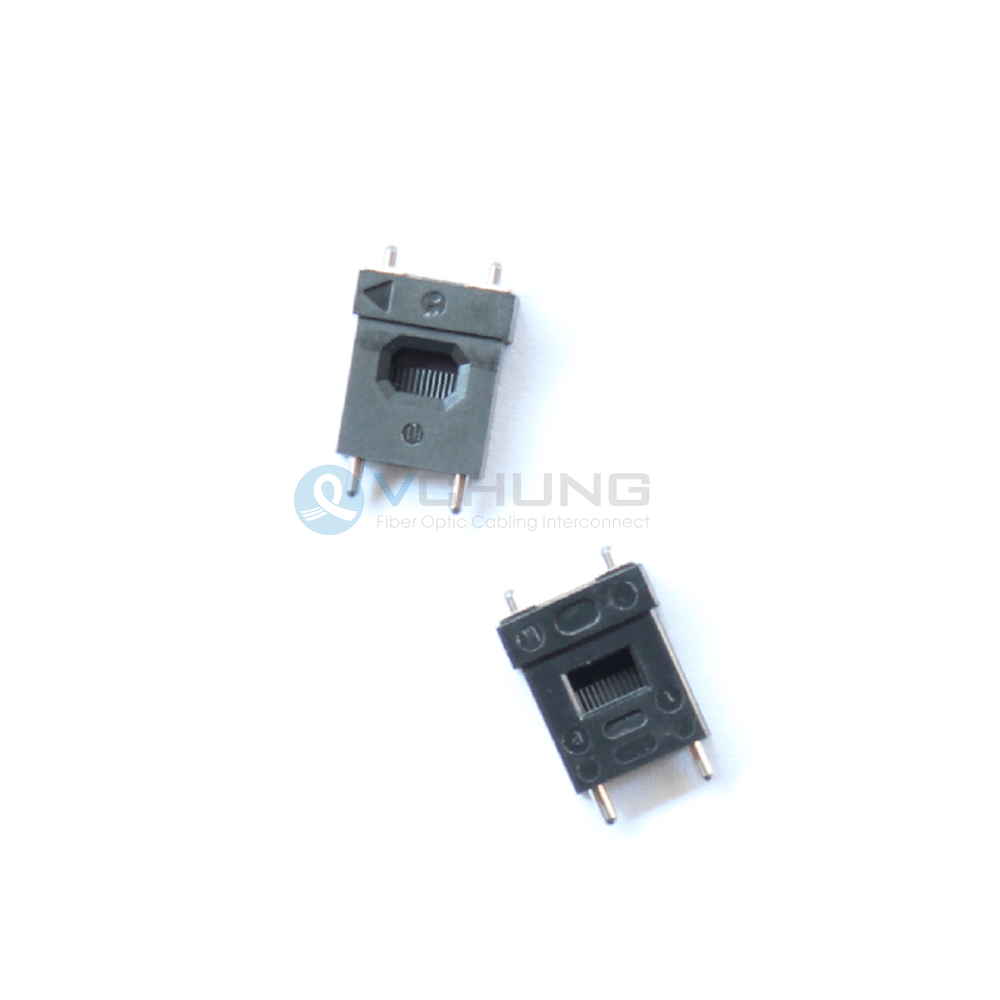

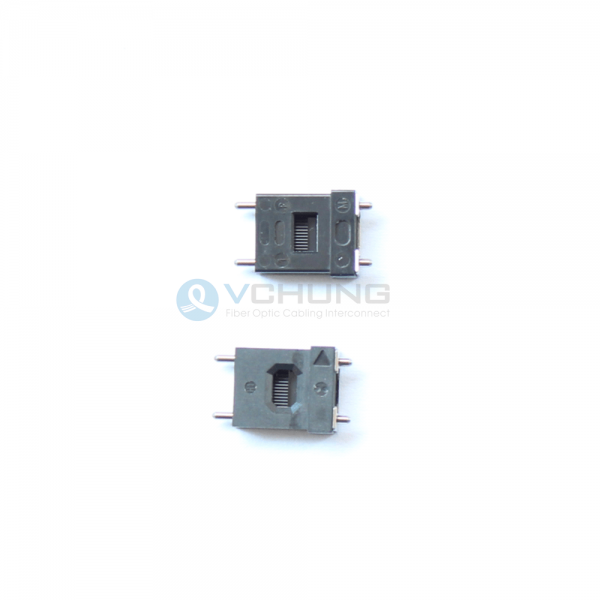

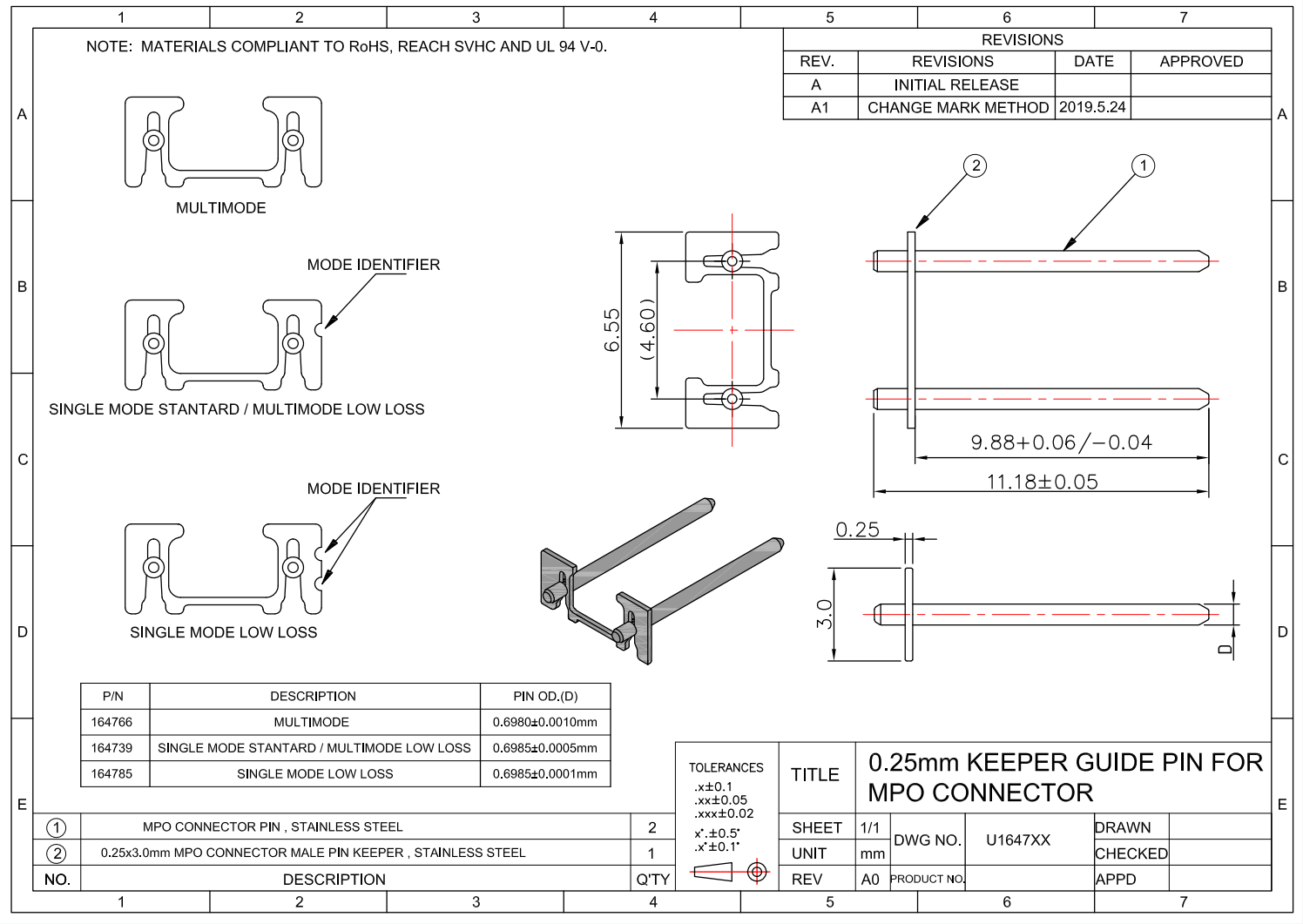

For Keeper, thickness 3.0mm, 2.5mm, 0.25mm are avaiable.
Before produce, it is necessary to confirm whether MPO connector is male or female.
Female, without guide PINS Male, with guide PINS
How to confirm the MPO connector what you need is male or female?
Type1: Connection between MPO and MPO Connection between two MPO connectors, which must be one MPO connector is Female and another one must be Male. | ![]() |
![]() | Type2: Connection between MPO and optical module You know, All optical modules are self-contained with Guide PIN, it means male MPO connector inside, so when connection between MPO cable and optical module, the MPO connector on cable must be the female connector. |
