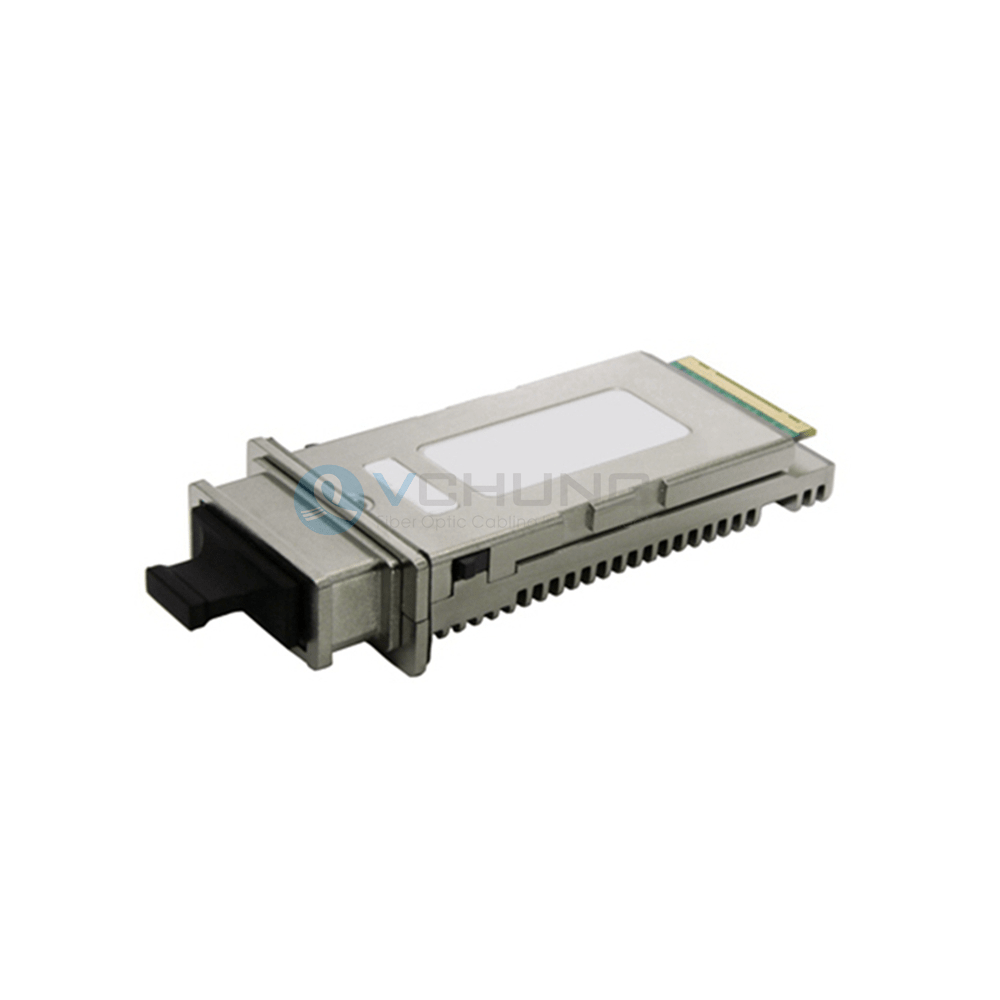

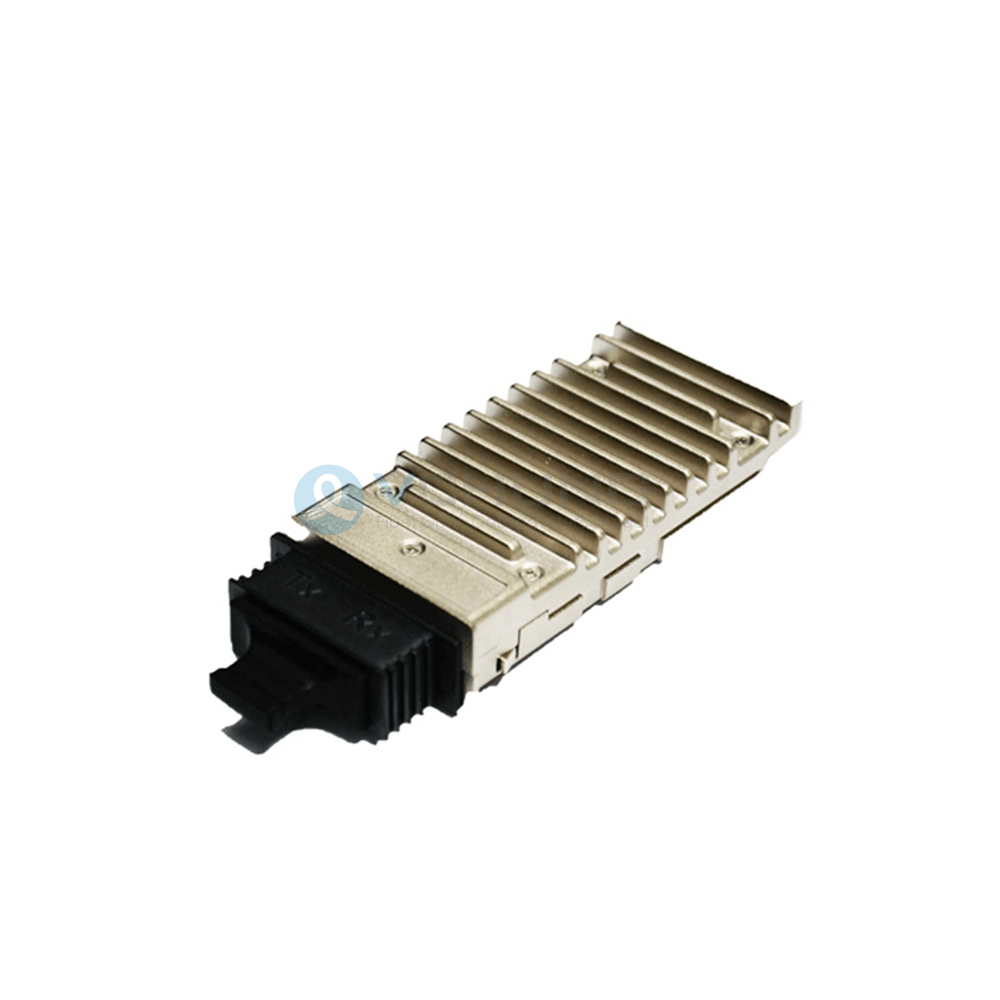

Vchung’s 10Gbps X2 40km transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications.
The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. Designed for distances of up to 40km, the transponder module comprises a transmitter with a directly modulated uncooled 1550nm EML laser, a receiver with a APD photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).
1. Compatible with X2 MSA Rev2.0b
2. Support of IEEE 802.3ae 10GBASE-ER at 10.3125Gbps
3. Transmission Distance up to 40km on SMF
4. Cooled 1550nm EML Laser
5. Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
6. Management and control via MDIO 2-wire interface
7. Power Supply: +3.3V, APS(+1.2V)
8. Diagnostic Optics Monitoring
9. ROHS compliant and Lead-Free
2.Switch to Switch interface
3.Switched backplane applications
5.Other optical transmission systems
|Form Factor||X2||Data Rate||10Gbps|
|Media||Single-Mode||Device Type||X2 ER|
|Connector Type||SC duplex||DDMI||with|
|Optical Components||EML 1550nm||Power Supply Voltage||3.3V|
|-8.2~0.5dBm||-4.7~4dBm||Receiver Sensitivity||< -15.8dBm|
|Compatiblity||MSA Compliant||Operating Temperature||0℃ to +70℃|

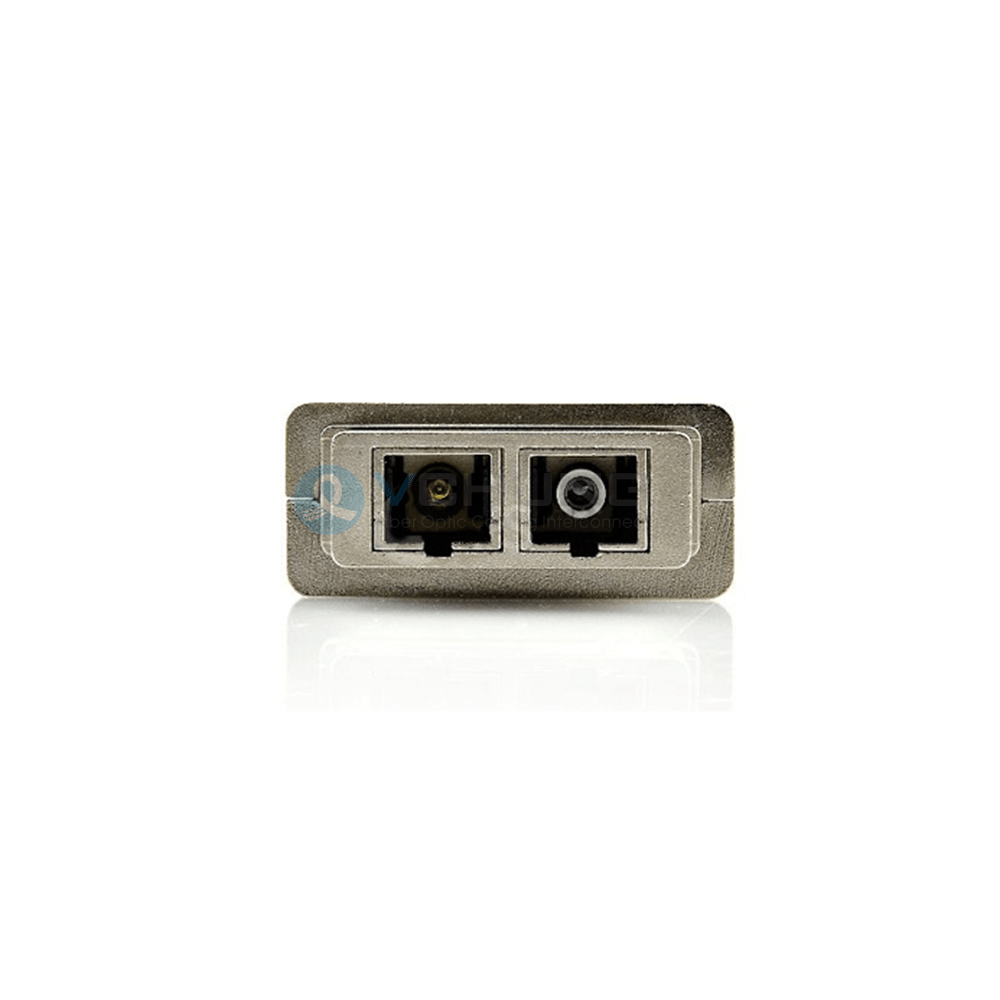

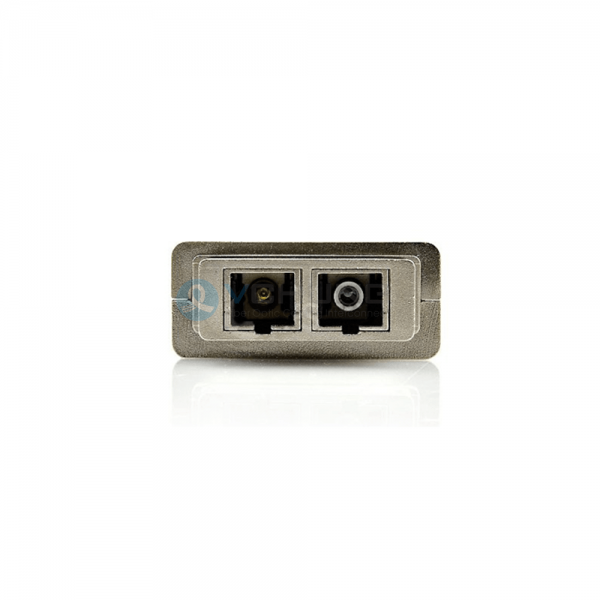

|Optical transceivers port(SC)
For SC port, there are two types of single-fiber bidirectional optical transceivers (one SC connector) and dual-fiber unidirectional optical transceiver (two SC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.
The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.
|Full MSA Compliance
High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.
VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.
