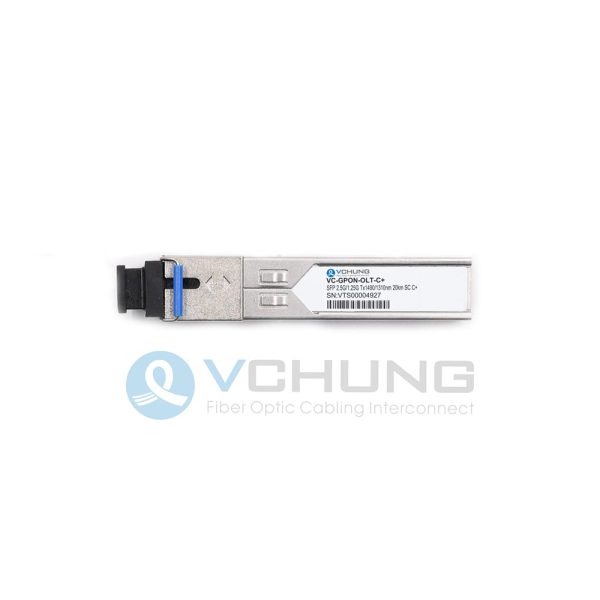

GPON-OLT-C+, GPON OLT SFP TX-2.5G/RX-1.25G TX1490nm/RX1310nm Class C+ 20km SC SMF Transceiver Module

Quick Details
Form Factor: SFP Fiber Type: SMF
Wavelength: TX 1490nm/RX 1310nm Distance:2Okm
Data Rate: TX-2.5G/RX-1.25G Connector Type: Simplex SC

Model Number: #14303 Category:

Brief Introduction

The GPON OLT SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver. It is optical line terminal(OLT) for ITU-T G984.2. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA). The transmitter section uses a 1490nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio over all operating temperature range. and is ClassⅠlaser compliant IEC825 and CDRH standards.The receiver has a hermetically packaged burst-mode APD-TIA  (trans-impedance amplifier) pre-amplifier and a burst-mode limiting amplifier with LVPECL compatible differential outputs.The receiver also includes the function of burst mode signal detect output and fast RSSI output which is enabled by a trigger. When the burst optical power is on, the receiver outputs high level; when the burst optical power is off, the receiver outputs low level. Fast RSSI function can satisfy more severe timing demand to monitor the power from any ONU.

Features

1. Support ITU-T G.984.2 GPON OLT C+ application
2.Single fiber bi-directional data links with asymmetric 2.488Gbps Tx and 1.244Gbps Rx
3. 1490nm continuous-mode transmitter with DFB LD
4. 1310nm burst-mode receiver with APD-TIA
5. 2-wire interface for integrated digital diagnostic Monitoring
6. SFP package with SC/UPC receptacle optical interface
7. Single +3.3V power supply
8. RoHS6 Compliant

Applications

GPON OLT Class C+ application
FTTX FTTH WDM Broadband Access

Specifications

Product Series GPON OLT Data Rate 2.5G/1.25G
Form Factor SFP connector Simplex SC
Wavelength 1490nm-TX/1310nm-RX Fiber Type SMF
Max Distance Class C+ (20km) Optical Components DFB 1490nm
Power Supply Voltage 3.3V Types of Multiplexing BIDI WDM
Transmitter Power +3.0~+7.0dBm Receiver Sensitivity -30 dBm
Compatiblity MSA Compliant Operating Temperature Operating: 0°C to 70°C
Storage: -40°C to 85°C

GPON-OLT-C+, GPON OLT SFP TX-2.5G/RX-1.25G TX1490nm/RX1310nm Class C+ 20km SC SMF Transceiver ModuleOptical transceivers port(SC)

For SC port, there are two types of single-fiber bidirectional optical transceivers (one SC connector) and dual-fiber unidirectional optical transceiver (two SC connectors).
Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals.

Optical transceivers series

Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface.
Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including:
1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC.
2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP.
3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4.
GPON-OLT-C+, GPON OLT SFP TX-2.5G/RX-1.25G TX1490nm/RX1310nm Class C+ 20km SC SMF Transceiver Module

Compatibility

The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market.
Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied.
GPON-OLT-C+, GPON OLT SFP TX-2.5G/RX-1.25G TX1490nm/RX1310nm Class C+ 20km SC SMF Transceiver Module

GPON-OLT-C+, GPON OLT SFP TX-2.5G/RX-1.25G TX1490nm/RX1310nm Class C+ 20km SC SMF Transceiver ModuleIndustrial Standards

VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process.

GPON-OLT-C+, GPON OLT SFP TX-2.5G/RX-1.25G TX1490nm/RX1310nm Class C+ 20km SC SMF Transceiver ModuleFull MSA Compliance

High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally.

Quality assurance

VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service.
GPON-OLT-C+, GPON OLT SFP TX-2.5G/RX-1.25G TX1490nm/RX1310nm Class C+ 20km SC SMF Transceiver Module



10GBASE-LR SFP+ DATASHEET

10GBASE-LR SFP+ DATASHEET

GPON-OLT-C+, GPON OLT SFP TX-2.5G/RX-1.25G TX1490nm/RX1310nm Class C+ 20km SC SMF Transceiver Module

This drawing is for reference only. If you need more information and need to modify the drawing, please Email us:support@vchung.com
