Brief Introduction
The GPON OLT SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver. It is optical line terminal(OLT) for ITU-T G984.2. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA). The transmitter section uses a 1490nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio over all operating temperature range. and is ClassⅠlaser compliant IEC825 and CDRH standards.The receiver has a hermetically packaged burst-mode APD-TIA (trans-impedance amplifier) pre-amplifier and a burst-mode limiting amplifier with LVPECL compatible differential outputs.The receiver also includes the function of burst mode signal detect output and fast RSSI output which is enabled by a trigger. When the burst optical power is on, the receiver outputs high level; when the burst optical power is off, the receiver outputs low level. Fast RSSI function can satisfy more severe timing demand to monitor the power from any ONU.
Features
3. 1490nm continuous-mode transmitter with DFB LD
4. 1310nm burst-mode receiver with APD-TIA
5. 2-wire interface for integrated digital diagnostic Monitoring
6. SFP package with SC/UPC receptacle optical interface
7. Single +3.3V power supply
Applications
FTTX FTTH WDM Broadband Access
Specifications
| PN | VC-GPON-OLT-C++++ | Data Rate | 2.5G/1.25G |
| Form Factor | SFP | connector | Simplex SC |
| Wavelength | 1490nm-TX/1310nm-RX | Fiber Type | SMF |
| Max Distance | Class C++++ (20km) | Optical Components | DFB 1490nm |
| Power Supply Voltage | 3.3V | Types of Multiplexing | BIDI WDM |
| Transmitter Power | +4.5~+10.0dBm | Receiver Sensitivity | -31 dBm |
| Compatiblity | MSA Compliant | Operating Temperature | Operating: 0°C to 70°C Storage: -40°C to 85°C |

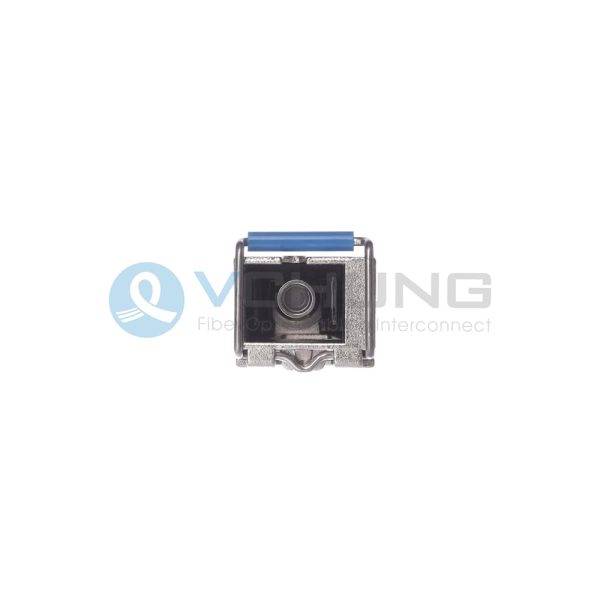

 | Optical transceivers port(SC) For SC port, there are two types of single-fiber bidirectional optical transceivers (one SC connector) and dual-fiber unidirectional optical transceiver (two SC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals. |
| Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4. |  |
| Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied. |  |
 | Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process. |
 | Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally. |
| Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service. |  |
