Brief Introduction
The Plug type fixed attenuator is a Male to Female attenuator. One end is a connector type, and the other end is an adapter type. The attenuation fiber inserts the ferrule and fixed. According to different attenuation fibers, the different attenuation values attenuator can be manufactured. Put the attenuator in the optical link, that means, the optical link thought the attenuation fiber, which can reduce optical power. So the optical components will not be damaged due to excessive power.
Features
1.High attenuation accuracy.
2.Low additional loss.
3.Good stability.
4.Male to female fixed attenuation and easy to use.
Applications
1.Debug optical power performance.
2.Calibration calibration of fiber optic instruments.
3.Fiber signal attenuation in cabling system.
4.Optical fiber communication system.
Product Video
Specifications
| Attenuator Type | MU (plug type fixed) | Polish Type | UPC |
| Fiber Mode | Single-mode | Test Wavelength | 1310/1550nm |
| Operating Wavelength Range | 1260~1650nm | Body material | Plastic |
| Attenuation Tolerance(1~5dB) | ±0.5dB | Attenuation Tolerance(6~20dB) | ±10%dB |
| Operating Temperature | -20℃ to +70℃ | Storage Temperature | -40℃ to +85℃ |

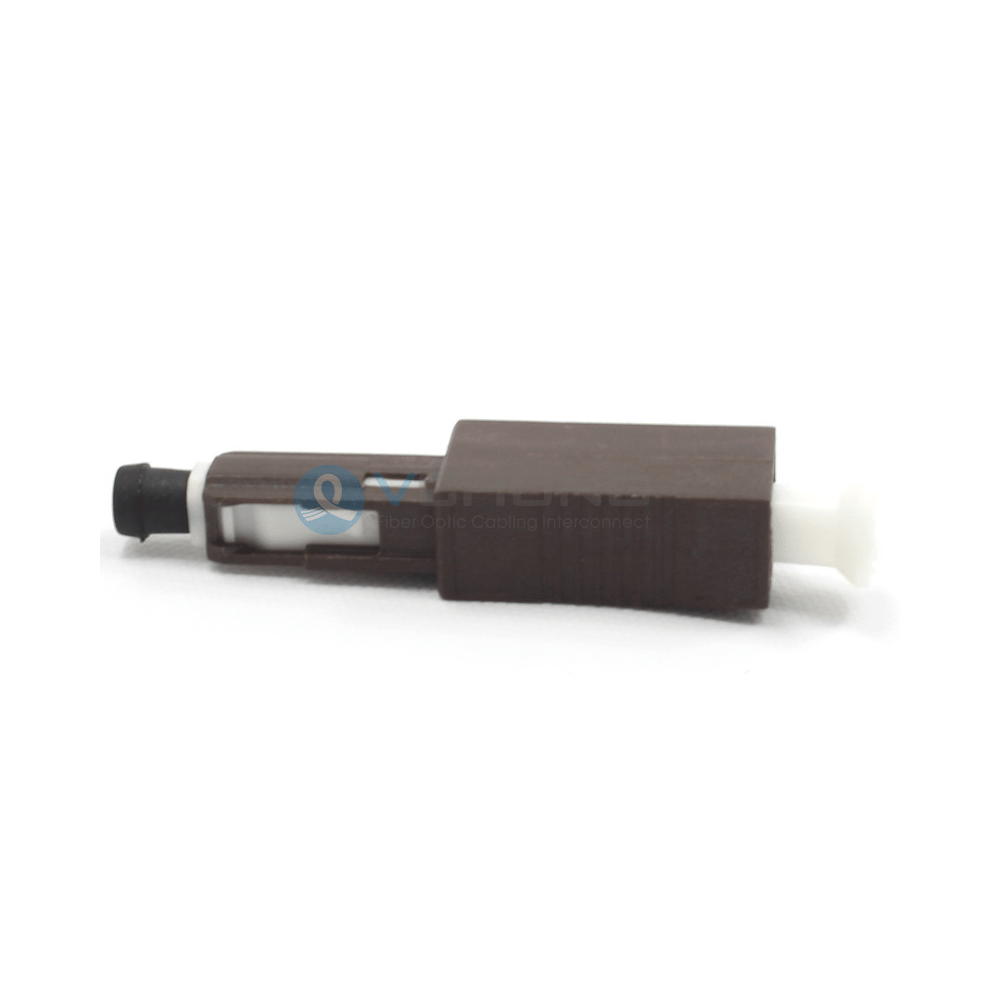

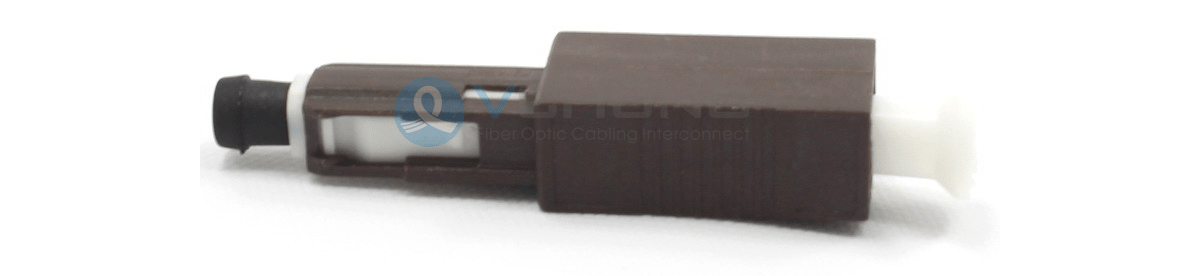

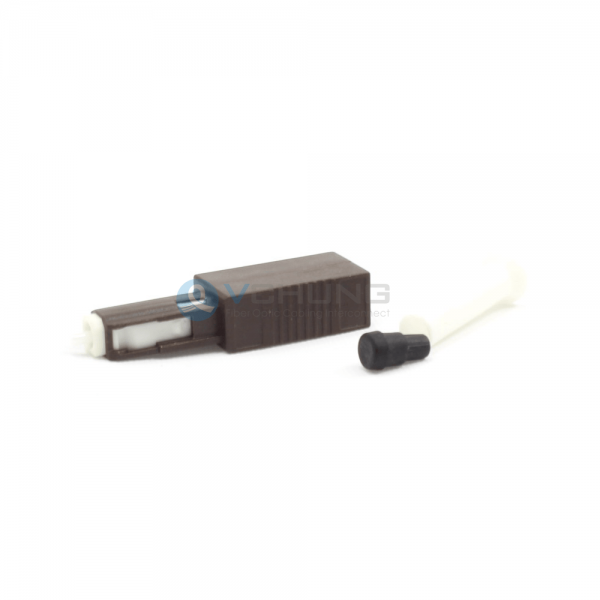

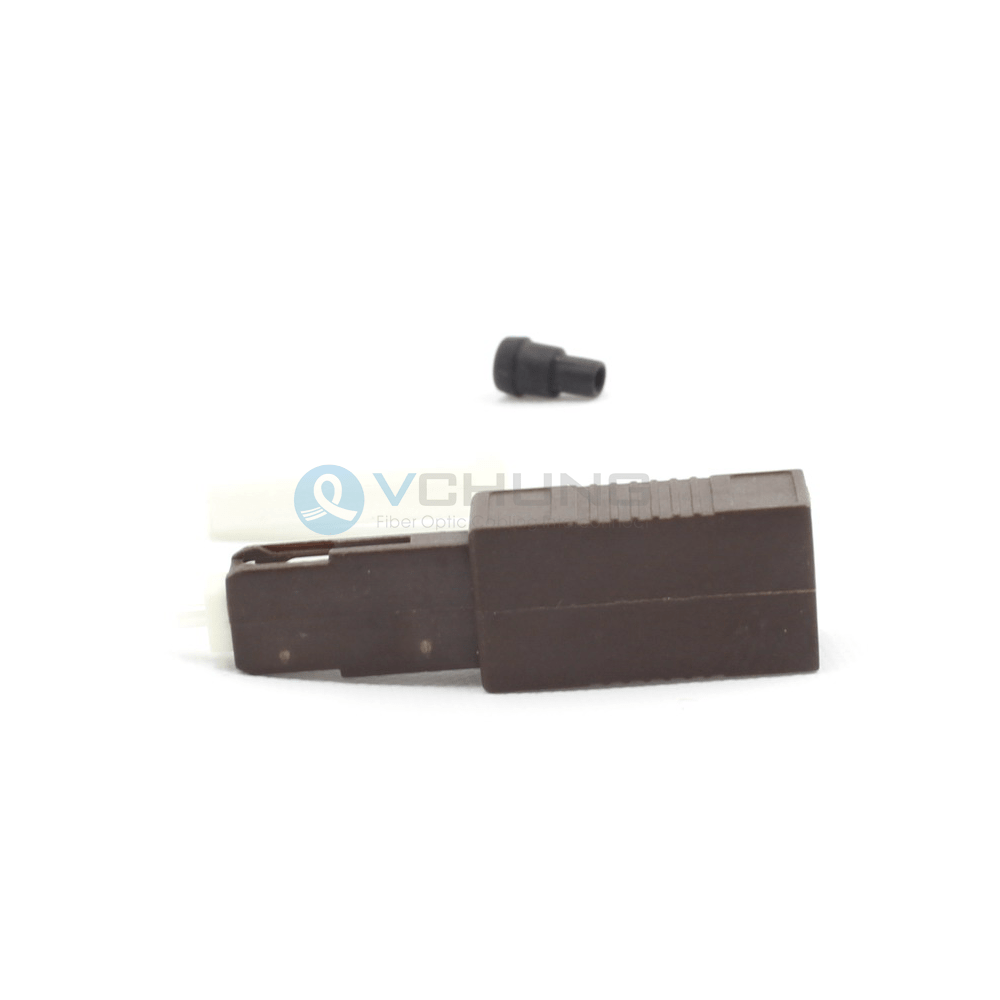

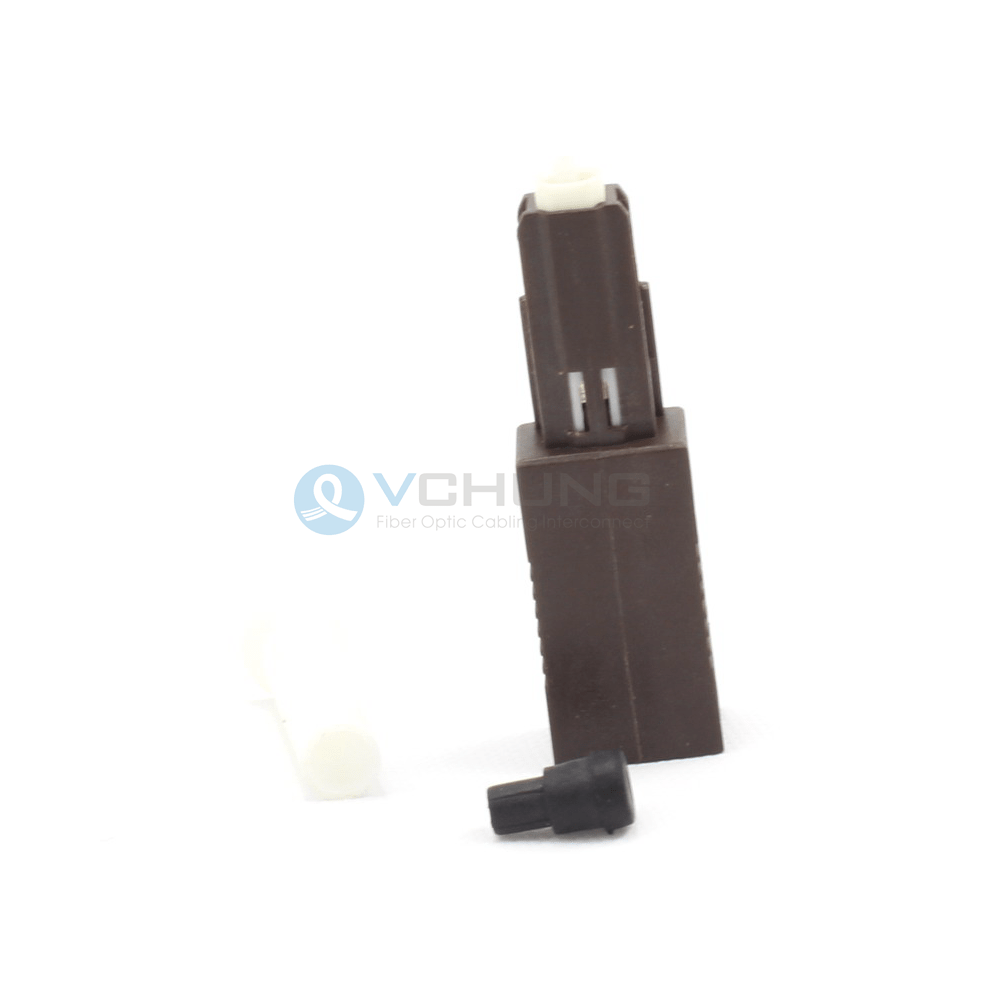

Detailed Images
Packing
NOTE:One ziplock bag for one Attenuator.
 |
