Brief Introduction
Male to Female Hybrid Adapter is assembles different adapters together, so that different connectors can be directly connected to realize optical signal transmission thought hybrid adapter, such as the connection between SC / LC / ST / FC connector. Hybrid adapter have simplex and duplex type. Our company’s SC adapter appearance must be smooth and clean. It has no oil, burrs, scars and crack. The color of adapter must be bright in good consistency, all parts of adapter can assembly well without difficulty, it should be easy and comfortable to plug in and pull out connector from adapters, the clip should be powerful.
Features
1.Modes：Single mode or Multimode.
2.Sleeve in high precision.
3.Low insertion loss.
4.Good repeatability.
5.Good interchangeability.
6.Easy installation.
7.Good temperature stability.
Applications
1.Optical fiber communication system.
2.Cable television network.
3.Optical fiber access network.
4.Video transmissions.
5.Test equipment.
6.LAN,WAN
Specifications
|
ITEM |
PARAMETER | |
| Single-Mode(SM-9/125) | Multi-Mode(MM-50/125) Multi-Mode(MM-62.5/125) | |
| Insertion Loss | ≤0.3dB | |
| Return Loss | SM: PC≥45dB，UPC≥50dB，APC≥60dB | |
| Durability (500 Mating) | 0.2dB Max. | |
| Operating Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |

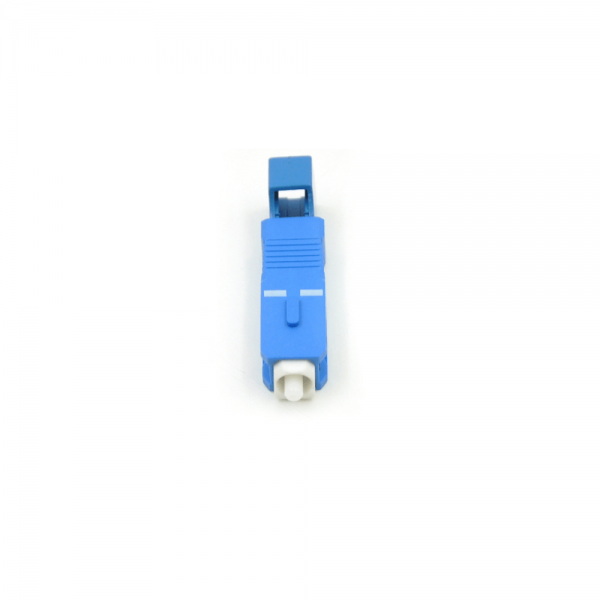

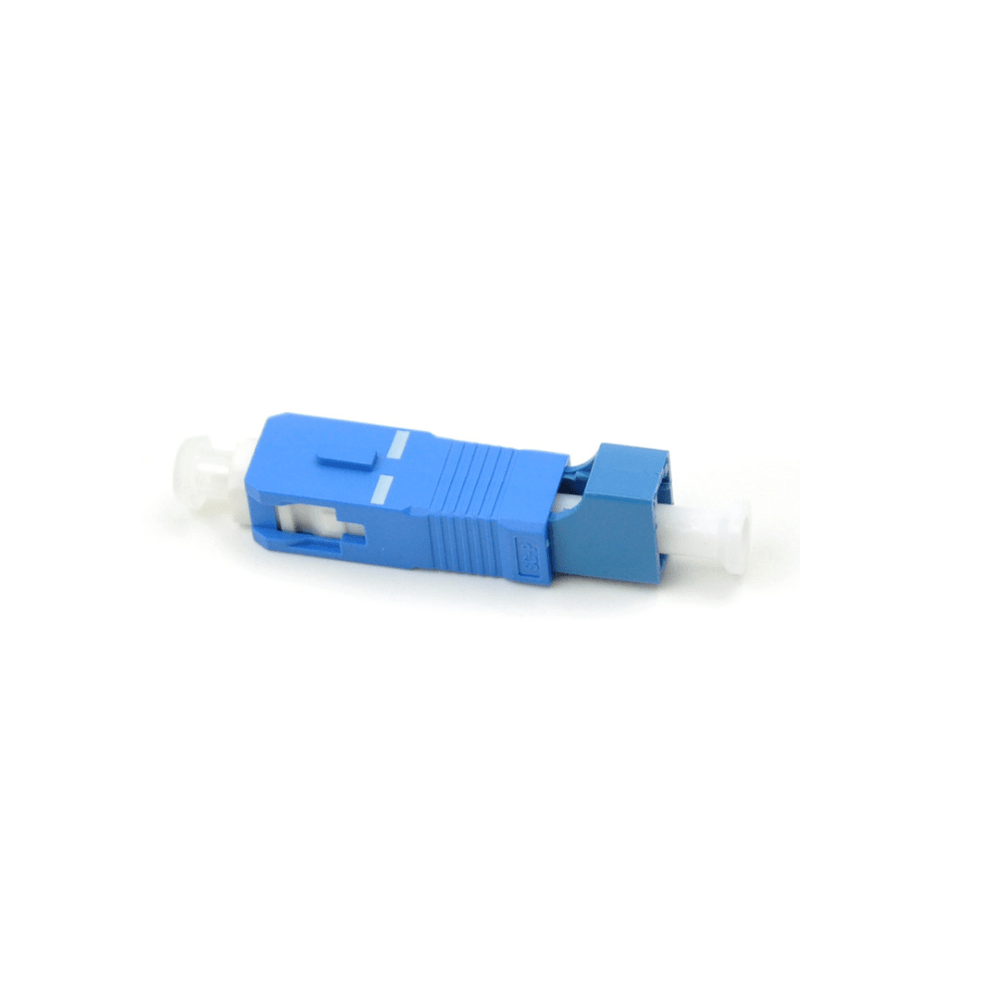

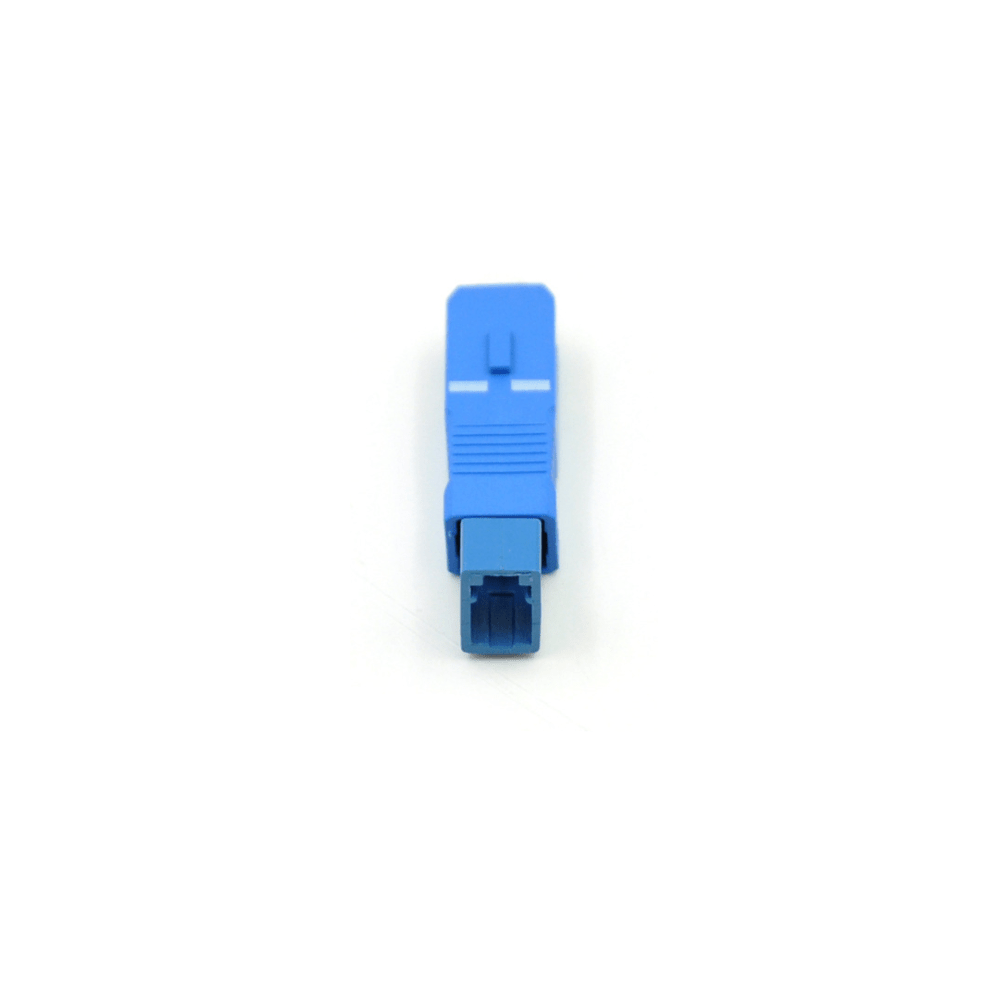

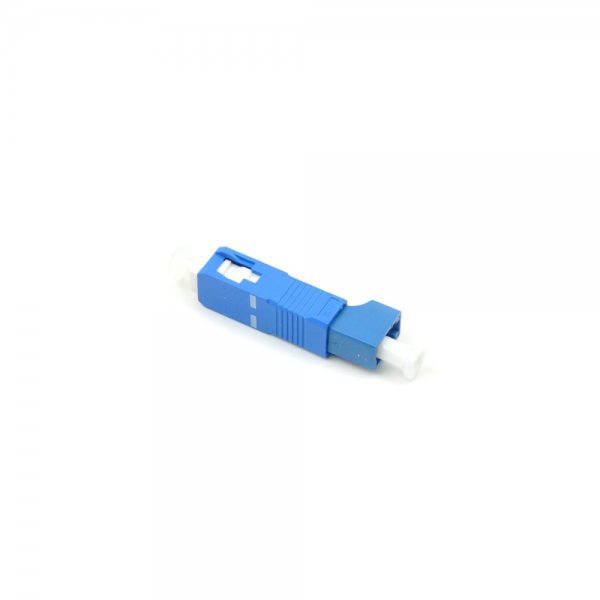

| Remark: LC Female to SC Male Hybrid Adapter are ultra reliable components featuring low insertion loss and back reflection loss. You can select singlemode 9/125um or multimode 62.5/125um or multimode 50/125um. | ||
There are many types of Male to Female Hybrid adapters, such as SC(M)-FC(F), SC(M)-LC(F), SC(M)-ST(F), ST(M)-FC(F), LC(M)-SC(F) and so on.
| Fiber Optical Adapters Packing Usually, we use transparent plastic boxes packaging, which can protect the adapter very well, and very neat. As shown in the picture. |  |
 | Our Quality Control We use highly reliable testing equipment. Each product must pass 100% test to ensure that all the products are reliable, good consistency and meet the international standards. Here, you can see our equipments and test methods. Learn More... |
