Brief Introduction

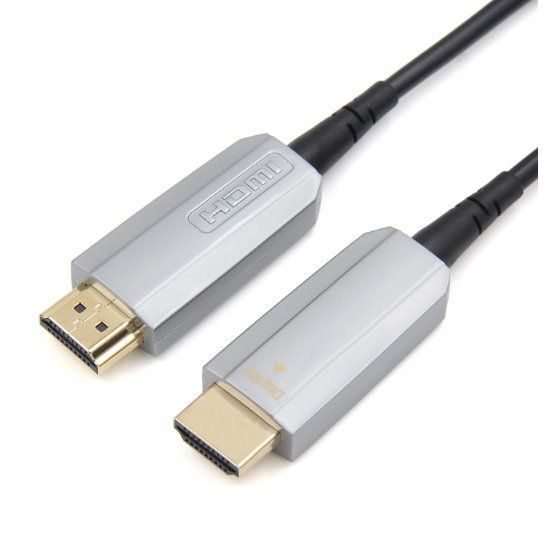

Vchung ‘s HDMI-18G-AOCxM-VC series product is a HDMI active optical cable (AOC) with high performance, low power consumption and low cost. Using optical fiber to replace copper wire as the high-speed signal transmission medium, HDMI-18G-AOCxM can perfectly transmit 4k@60HZ UHD image up to more than 100 meters. Compared with the traditional copper wire, HDMI-18G-AOCxM AOC is much longer, softer, more slim, with better signal quality and perfect EMI/EMC feature. Compared with other HDMI optical fiber transmission solution, HDMI-18G-AOCxM-VC AOC is easy to use, has perfect compatibility, and no external power supply needed.
Features
1.Long distance transmission, over 100 meters
2. Support 4K@60HZ UHD display
3. Plug and play without driver dependent
4. Thinner, lighter and softer than conventional copper cable
5. Highly resistant with EMI and RFI
6. No external power needed
Applications
2. High definition Video Meeting System
3. Medical Video System
4. High definition Video Surveillance System
5. Digital Signage and TV Wall
| OEM Part Number | HDMI-18G-AOCxxM-VC | Max Speed | 18Gbps |
| Interface | HDMI type A pluggable – HDMI type A pluggable | Supported Resolutions | 1080p,3D,4k(up to 50/60 Hz) |
| Cable type | Hybrid optical cable | Distance | up to 100M |
| Gender | Male to Male | Bend Radius | 20mm |
| Cable diameter | 3.0×5.0mm | Cable Jacket Type | PVC |
| Application | Multimedia | Operating Temperature | 0℃ to +70℃ |
| Speed | Support 4K@60HZ UHD display | Power Consumption | 250mW |
 | Optical transceivers port(LC) For LC port, there are two types of single-fiber bidirectional optical transceivers (one LC connector) and dual-fiber unidirectional optical transceiver (two LC connectors). Single fiber bidirectional is used to send and receive signals in one fiber, and dual fiber unidirectional optical transceivers are used to one fiber to send signals and other fiber to receive signals. |
| Optical transceivers series Vchung offer comprehensive optical modules, data rate from 155M to 100G,form factor including SFP,SFP+,XFP,SFP28,QSFP+,CFP,CFP2 and QSFP28,support MMF and SMF interface. Vchung closely follow optical communication market trend, offers comprehensive transceivers solution, including: 1. Data center:100G QSFP28, 40GQSFP+, 10G SFP+, 10G/25G/40G/100G AOC. 2. Transport (OTN,PTN):100G CFP/CFP2/CFP4, 10G SFP+/XFP BIDI/CWDM/DWDM/Tunable, SFP. 3. Wireless(5G fronthaul,middlehaul and backhaul):25G SFP28, 50G QSFP28 PAM4. |  |
| Compatibility The optical transceivers can be adapted to Cisco, Huawei, Huasan, Alcatel-Lucent, Juniper, Brocade, HPE, Extreme, Ericsson and other equipment. It is 100% compatible with all vendors on the market. Of course, before confirming the purchase, it is best to inform model of the equipment to which the optical transceivers is applied. |  |
 | Industrial Standards VCHUNG all optical transceivers meet or exceed industrial standards, such as CE and RoHS as well as the regulations of the FCC. Through continuous monitoring before, during and after the production process. |
 | Full MSA Compliance High availability optical transceivers meet the Multi Source Agreement (MSA) standard SFF-8431. With MSA Standards various manufacturers determine standardizations of the Transceiver to ensure the interoperability. The optical transceivers interface is defined electrically, mechanically and functionally. |
| Quality assurance VCHUNG provides OEM services, VCHUNG supply all optical modules are high quality and reliable optical transceivers. For quality assurance, we provide three years replacement and lifelong maintenance service. |  |
