Brief Introduction
High Density Fiber Rack-Mount Enclosures provide an inter-connect or cross-connect between backbone horizontal cable and active equipment while using minimum rack space in a frame or cabinet. Enclosures allow for easy installation of pre-terminated solutions, and are ideal for high-density fiber applications in data centers, equipment rooms, and central offices.
Features
- Standard 19”
- 1U, up to 1152F
- High-density application
- Double rail design, easy to assemble and manage
- Lightweight ABS material for MPO module
- Customized color & logo
- High quality metal sheet technology and fogging coating
- High quality fiber management and structural accessory
Applications
1.High density cabling system.
2.Cabling in communication base station and distribution case.
3.Jumper connection. 40G and 100G system, QSFP module.
4.Optical fiber communication system, CATV, LANs and WANs
Specifications
| Dimensions | 44.2mm(Height) X482mm(Width) X433.5mm(Depth) |
| Materials
Envelope Plastic
|
Cold Rolled Steel PC+ABS |
| Finishes
Metal Plastic |
Black Powder coated rolled steel, Code color RAL 9005 Random |
| Maximum capacity | SC Duplex Adapter 72F / LC Quad Adapter 144F / Duplex MPO Adapter 1152F(Max) |
| Number of cassettes | 12 Pcs |
| Weight | 6.8 Kg |
| Operating Temperature Range | -25℃ ~ +55℃ (5 to 95% relative humidity) |
| Storage Temperature | -40℃ ~ +65℃ |
| Installation temperature | 0℃ ~ 50℃ |

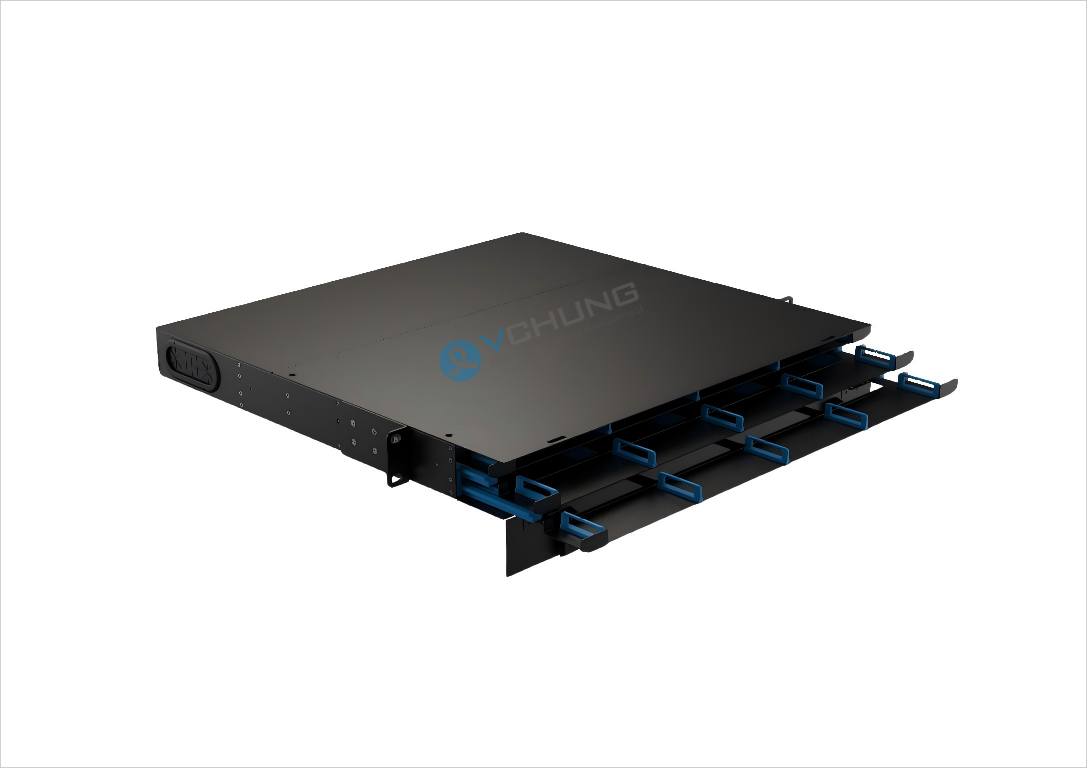

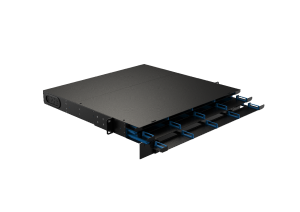

Detailed Images

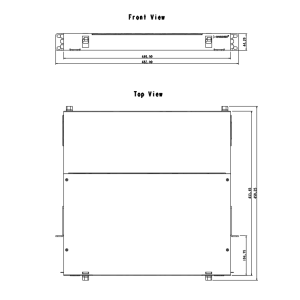

Assembly Structure Illustration
Accessories List
Nylon Cable Tie x5 M6*15 Screw x4 and Nut x4 Magic tie W10*50 x10
Fiber Enclosure Capacity
| Description | Part Number | Capacity | Fiber Count |
| High Density ODF 1U 19” 144-UP To 12 Module – SC | 12 Module | 72F | |
| High Density ODF 1U 19” 144-UP To 12 Module – LC | 12 Module | 144F | |
| High Density ODF 1U 19” 144-UP To 12 Module – MPO | 12 Module | 864F |
Fiber Enclosure Loading List

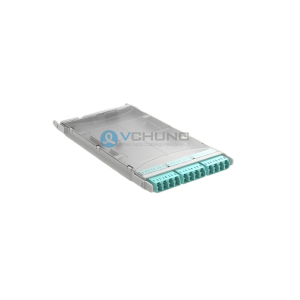

1. Cassette Module
| Description | Part Number |
| MODULE MTP/M-LC UPC 12F OM3/4 LOW LOSS | |
| MODULE MTP/M(APC)-LC/UPC SM BI LOW LOSS | |
| MODULE MTP 4 ADAPTERS OM3/4 AQUA | |
| MODULE MTP 6 ADAPTERS OM3/4 AQUA | |
| MODULE 4 SM MTP APC GREEN ADAPTER | |
| MODULE FUSION SPLICE MODULE OM3 12 LC UPC | |
| MODULE FUSION SPLICE MODULE OM4 12 LC UPC | |
| MODULE FOR SPLICING 12 LC/UPC SM G657A2 |
2. Package
| Description | Dimensions |
| Box | 560x545x185mm |
| PE Bag | 600 x 580mm |
